GASKET SET для Suzuki VS1400 K9 - 2009 года выпуска

  • №
    Артикул
    Название

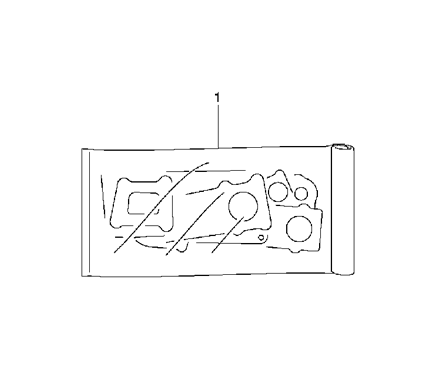

  • 1
    11400-38865 GASKET SET (INCL. 2-23)
    GASKET SET (INCL. 2-23)
  • 2
    11141-38B00 GASKET, CYLINDER HEAD FRONT (NOT SHOWN)
    GASKET, CYLINDER HEAD FRONT (NOT SHOWN)
  • 3
    11142-38B00 GASKET, CYLINDER HEAD REAR (NOT SHOWN)
    GASKET, CYLINDER HEAD REAR (NOT SHOWN)
  • 4
    11177-38B01-H17 GASKET, BREATHER COVER (NOT SHOWN)
    GASKET, BREATHER COVER (NOT SHOWN)
  • 5
    11241-38B00-H17 GASKET, CYLINDER FRONT (NOT SHOWN)
    GASKET, CYLINDER FRONT (NOT SHOWN)
  • 6
    11242-38B00-H17 GASKET, CYLINDER REAR (NOT SHOWN)
    GASKET, CYLINDER REAR (NOT SHOWN)
  • 7
    11482-38B20 GASKET, CLUTCH COVER (NOT SHOWN)
    GASKET, CLUTCH COVER (NOT SHOWN)
  • 8
    11483-38B10 GASKET, GENERATOR COVER (NOT SHOWN)
    GASKET, GENERATOR COVER (NOT SHOWN)
  • 9
    11485-38B20 GASKET, GEAR SHIFT COVER (NOT SHOWN)
    GASKET, GEAR SHIFT COVER (NOT SHOWN)
  • 10
    14181-45C00 GASKET, EXHAUST PIPE (NOT SHOWN)
    GASKET, EXHAUST PIPE (NOT SHOWN)
  • 11
    09168-06018 GASKET (NOT SHOWN)
    GASKET (NOT SHOWN)
  • 12
    09168-06023 GASKET (5.8X13X1.2) (NOT SHOWN)
    GASKET (5.8X13X1.2) (NOT SHOWN)
  • 13
    09168-16002 GASKET (16X22X2) (NOT SHOWN)
    GASKET (16X22X2) (NOT SHOWN)
  • 14
    09168-16003 GASKET (16X22X2) (NOT SHOWN)
    GASKET (16X22X2) (NOT SHOWN)
  • 15
    09168-18003 GASKET (18X24.2X2) (NOT SHOWN)
    GASKET (18X24.2X2) (NOT SHOWN)
  • 16
    09280-04004 O RING (D:1.2,ID:4.0) (NOT SHOWN)
    O RING (D:1.2,ID:4.0) (NOT SHOWN)
  • 17
    09280-12009 O RING (D:1.9,ID:12.6) (NOT SHOWN)
    O RING (D:1.9,ID:12.6) (NOT SHOWN)
  • 18
    09280-17003 O RING (D:3.1,ID:16.8) (NOT SHOWN)
    O RING (D:3.1,ID:16.8) (NOT SHOWN)
  • 19
    09280-22008 O RING (D:3.1,ID:22.7) (NOT SHOWN)
    O RING (D:3.1,ID:22.7) (NOT SHOWN)
  • 20
    09280-36001 O RING (D:2.4,ID:36.5) (NOT SHOWN)
    O RING (D:2.4,ID:36.5) (NOT SHOWN)
  • 21
    09280-40012 O RING (NOT SHOWN)
    O RING (NOT SHOWN)
  • 22
    09280-42003 O RING (NOT SHOWN)
    O RING (NOT SHOWN)
  • 23
    09280-78003 O RING (D:3.7,ID:76.5) (NOT SHOWN)
    O RING (D:3.7,ID:76.5) (NOT SHOWN)
