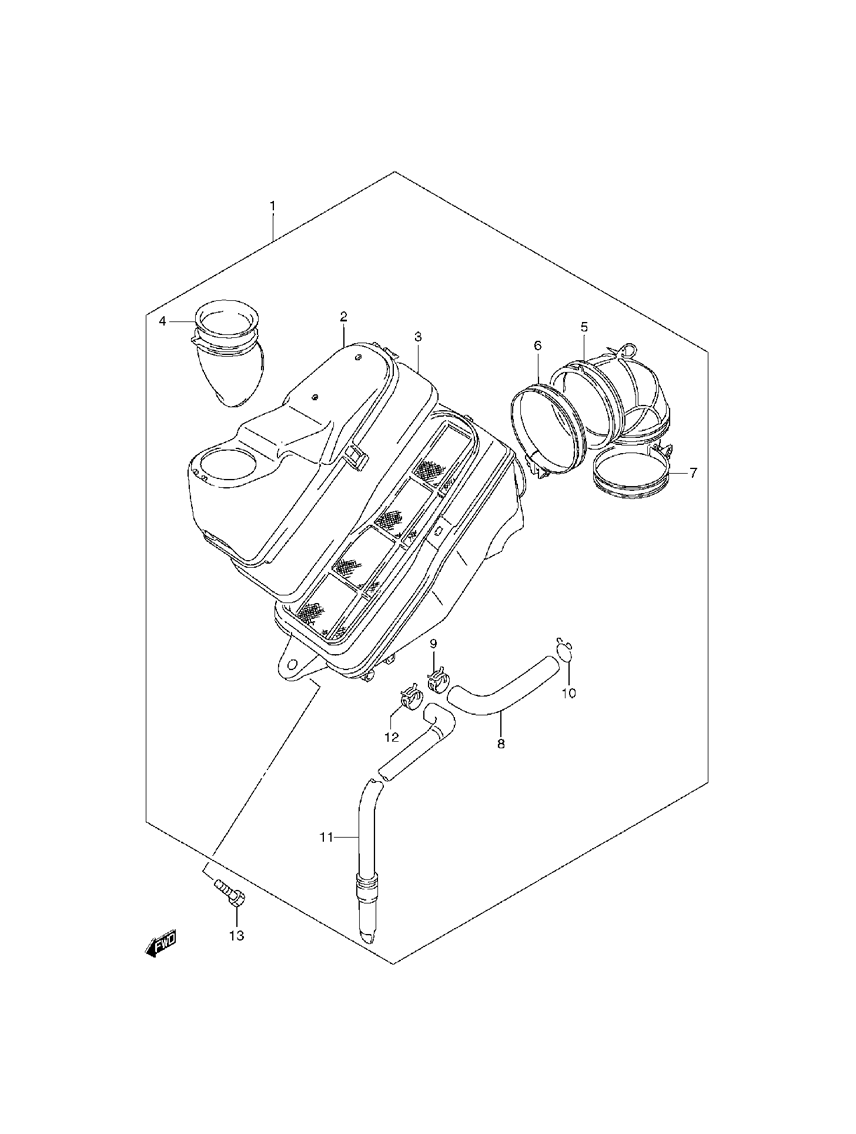

AIR CLEANER (FRONT) для Suzuki VS1400 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
113700-38B20 CLEANER ASSY, AIR FRONT (INCL. 2-12)CLEANER ASSY, AIR FRONT (INCL. 2-12)
-
213740-38B01 CAPCAP
-
313781-38B10 FILTERFILTER
-
413891-38B00 TUBE, INLETTUBE, INLET
-
513881-38B00 TUBE, OUTLETTUBE, OUTLET
-
609402-72203 CLAMPCLAMP
-
709402-58208 CLAMPCLAMP
-
813854-38B00 TUBE, BREATHERTUBE, BREATHER
-
909401-15407 CLAMPCLAMP
-
1009401-14301 CLIPCLIP
-
1113870-21628 TUBE, DRAINTUBE, DRAIN
-
1209401-13417 CLAMPCLAMP
-
1301500-06207 BOLTBOLT
