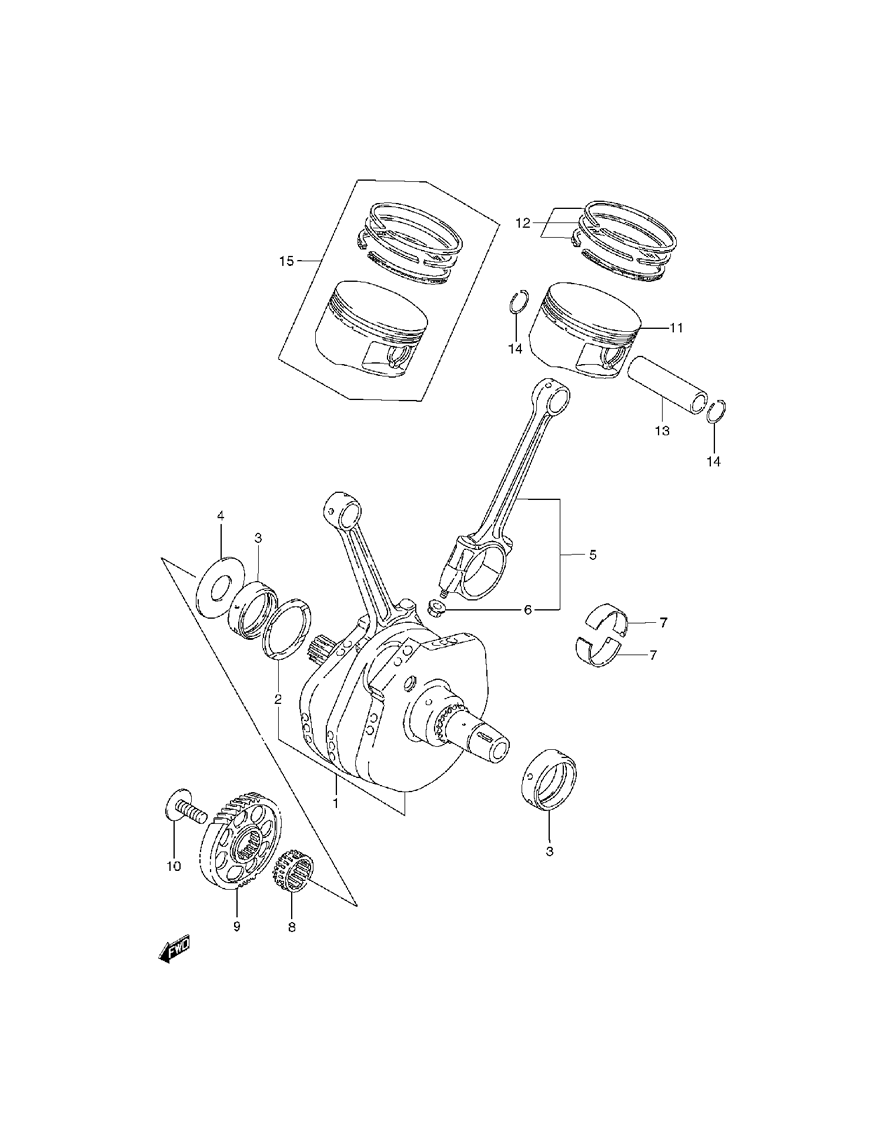

CRANKSHAFT W/ PISTON для Suzuki VS1400 K9 - 2009 года выпуска
-
№АртикулНазвание
-
112000-38840 CRANKSHAFT SET (INCL. 2-2)CRANKSHAFT SET (INCL. 2-2)
-
212228-38B00-0A0 BEARING, CRANK THRUST (T:1.925)BEARING, CRANK THRUST (T:1.925)
-
212228-38B00-0B0 BEARING, CRANK THRUST (T:1.950)BEARING, CRANK THRUST (T:1.950)
-
212228-38B00-0C0 BEARING, CRANK THRUST (T:1.975)BEARING, CRANK THRUST (T:1.975)
-
212228-38B00-0D0 BEARING, CRANK THRUST (T:2000)BEARING, CRANK THRUST (T:2000)
-
212228-38B00-0E0 BEARING, CRANK THRUST (T:2.025)BEARING, CRANK THRUST (T:2.025)
-
212228-38B00-0F0 BEARING, CRANK THRUST (T:2.050)BEARING, CRANK THRUST (T:2.050)
-
212228-38B00-0G0 BEARING, CRANK THRUST (T:2.075)BEARING, CRANK THRUST (T:2.075)
-
212228-38B00-0H0 BEARING, CRANK THRUST (T:2.100)BEARING, CRANK THRUST (T:2.100)
-
212228-38B00-0I0 BEARING, CRANK THRUST (T:2.125)BEARING, CRANK THRUST (T:2.125)
-
212228-38B00-0J0 BEARING, CRANK THRUST (T:2.150)BEARING, CRANK THRUST (T:2.150)
-
312229-38B00 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
412652-38B00 WASHER, CRANK THRUSTWASHER, CRANK THRUST
-
512160-38B00 ROD ASSY, CONNECTING (INCL. 6)ROD ASSY, CONNECTING (INCL. 6)
-
609159-09001 NUTNUT
-
712164-38B01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
712164-38B01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
712164-38B01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
712164-38B01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
712164-38B01-0E0 BEARING, CRANK PIN (BLUE)BEARING, CRANK PIN (BLUE)
-
812731-38B00 SPROCKET, CAM CHAIN DRIVE RIGHT HANDSPROCKET, CAM CHAIN DRIVE RIGHT HAND
-
921111-38B00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
1009103-14010 BOLT (14X28)BOLT (14X28)
-
1112111-38B03-0F0 PISTONPISTON
-
1212140-38B30 RING SET, PISTONRING SET, PISTON
-
1312151-14A01 PIN, PISTONPIN, PISTON
-
1409381-23003 CIRCLIPCIRCLIP
-
1512100-38B00-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
