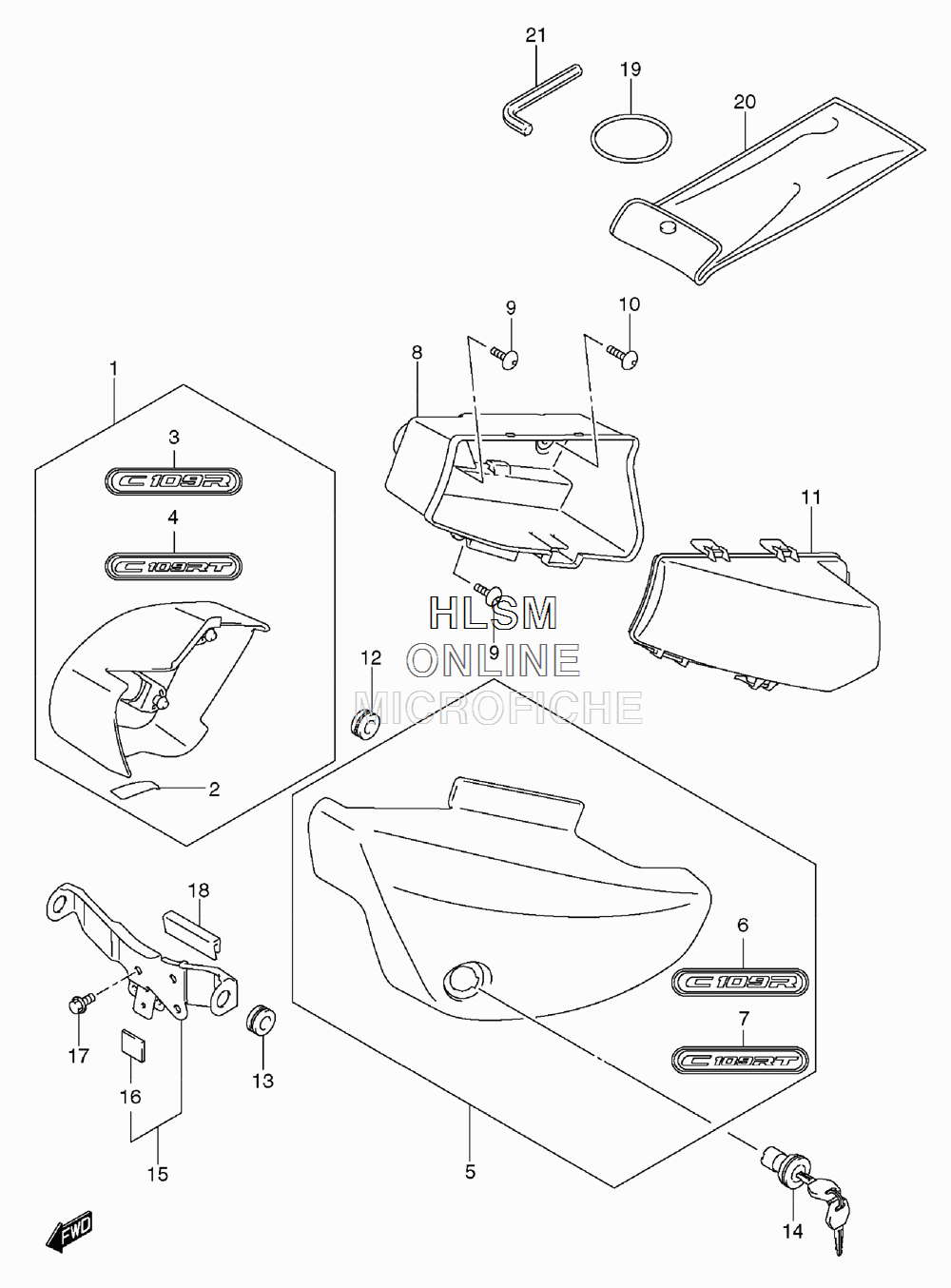

SIDE COVER для Suzuki VLR1800T K8 - 2008 года выпуска`
-
№АртикулНазвание
-
147110-22HA0-YAY COVER, FRAME RIGHT HAND (BLACK) (FOR FKE) (INCL. 2-4)COVER, FRAME RIGHT HAND (BLACK) (FOR FKE) (INCL. 2-4)
-
147110-22HA0-YKZ COVER, FRAME RIGHT HAND (BLUE) (FOR FKF) (INCL. 2-4)COVER, FRAME RIGHT HAND (BLUE) (FOR FKF) (INCL. 2-4)
-
247166-22H00 SHIELD, RIGHT HANDSHIELD, RIGHT HAND
-
368131-22H00 EMBLEMEMBLEM
-
468131-22HA0 EMBLEMEMBLEM
-
547210-22HA0-YAY COVER, FRAME LEFT HAND (BLACK) (FOR FKE) (INCL. 6-7)COVER, FRAME LEFT HAND (BLACK) (FOR FKE) (INCL. 6-7)
-
547210-22HA0-YKZ COVER, FRAME LEFT HAND (BLUE) (FOR FKF) (INCL. 6-7)COVER, FRAME LEFT HAND (BLUE) (FOR FKF) (INCL. 6-7)
-
668131-22H00 EMBLEMEMBLEM
-
768131-22HA0 EMBLEMEMBLEM
-
892211-22H00 BODY, LUGGAGE BOXBODY, LUGGAGE BOX
-
909139-06152 SCREWSCREW
-
1009139-06172 SCREWSCREW
-
1192212-22H00 LIDLID
-
1209320-08018 CUSHIONCUSHION
-
1309320-08049 CUSHIONCUSHION
-
1495700-07870 LOCK SET, FRAME COVERLOCK SET, FRAME COVER
-
1547120-22H00 BRACKET, FRAME COVER (INCL. 16)BRACKET, FRAME COVER (INCL. 16)
-
1644894-24A00 CUSHIONCUSHION
-
1701550-0612A BOLTBOLT
-
1847514-10F00 MOLDINGMOLDING
-
1909280-61002 BAND, TOOLBAND, TOOL
-
2009800-21055 TOOL ASSYTOOL ASSY
-
2109816-00050 HEXAGON, SPANNER 6HEXAGON, SPANNER 6
-
2109816-00059 HEXAGON, SPANNER 5HEXAGON, SPANNER 5
