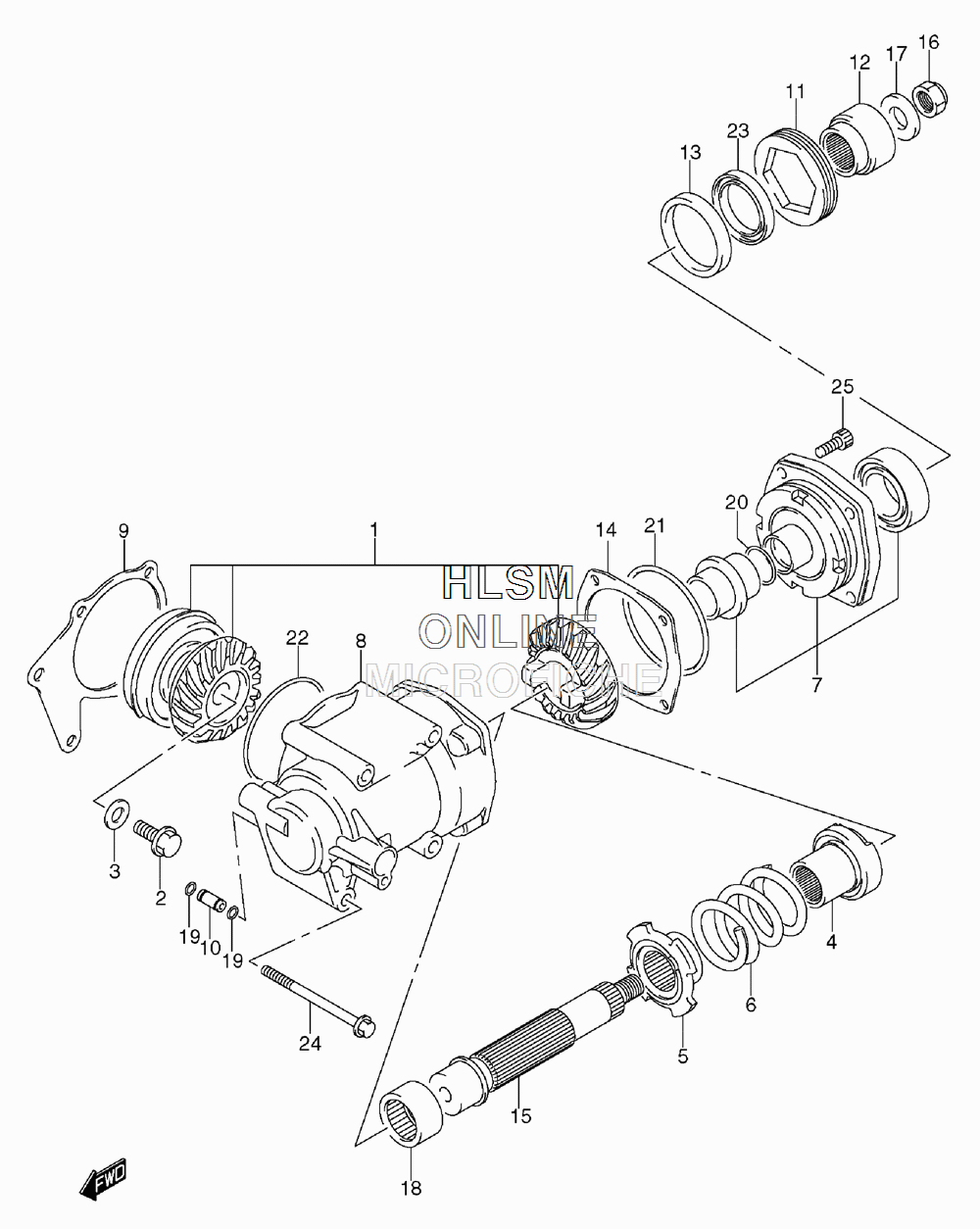

SECONDARY DRIVE GEAR для Suzuki VLR1800T K8 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    24910-48830 GEAR SET, SECONDARY
    GEAR SET, SECONDARY
  • 2
    09103-12084 BOLT, SECONDARY DRIVE GEAR
    BOLT, SECONDARY DRIVE GEAR
  • 3
    09160-12045 WASHER, SECONDARY DRIVE
    WASHER, SECONDARY DRIVE
  • 4
    24923-48G10 DOG, OUTPUT CAM
    DOG, OUTPUT CAM
  • 5
    24924-48G10 STOPPER, CAM SPRING
    STOPPER, CAM SPRING
  • 6
    24925-48G00 SPRING, SECONDARY DAMPER
    SPRING, SECONDARY DAMPER
  • 7
    24926-48820 STOPPER, SEC SET, DRIVEN BEVEL
    STOPPER, SEC SET, DRIVEN BEVEL
  • 8
    24931-48G20 CASE, SECONDARY GEAR
    CASE, SECONDARY GEAR
  • 9
    24935-48810 SHIM SET, DRIVE
    SHIM SET, DRIVE
  • 10
    24940-26D00 PIPE, SEC GEAR CASE OIL
    PIPE, SEC GEAR CASE OIL
  • 11
    24942-26D00 STOPPER, SEC DRIVEN
    STOPPER, SEC DRIVEN
  • 12
    24943-48G00 COUPLING, SEC DRIVEN
    COUPLING, SEC DRIVEN
  • 13
    24944-48G00 HOUSING, OIL SEAL
    HOUSING, OIL SEAL
  • 14
    24945-48810 SHIM SET, SECONDARY
    SHIM SET, SECONDARY
  • 15
    24961-48G00 SHAFT, SECONDARY DRIVEN BEVEL
    SHAFT, SECONDARY DRIVEN BEVEL
  • 16
    09159-16003 NUT, SEC DRIVEN BEVEL COUPLING
    NUT, SEC DRIVEN BEVEL COUPLING
  • 17
    09160-16040 WASHER, SEC DRIVEN BEVEL
    WASHER, SEC DRIVEN BEVEL
  • 18
    09263-32012 BEARING, SECONDARY DRIVEN
    BEARING, SECONDARY DRIVEN
  • 19
    09280-06008 O RING, SEC CASE OIL PIPE
    O RING, SEC CASE OIL PIPE
  • 20
    09280-24010 O RING, SEC DRIVE BRG STOPPER
    O RING, SEC DRIVE BRG STOPPER
  • 21
    09280-78003 O RING, BEARING HOUSING
    O RING, BEARING HOUSING
  • 22
    09280-92003 O RING, SECONDARY CASE
    O RING, SECONDARY CASE
  • 23
    09283-38011 SEAL, SECONDARY DRIVEN OIL
    SEAL, SECONDARY DRIVEN OIL
  • 24
    01550-0895A BOLT, SECONDARY CASE
    BOLT, SECONDARY CASE
  • 25
    09106-09002 BOLT, BEARING HOUSING
    BOLT, BEARING HOUSING
