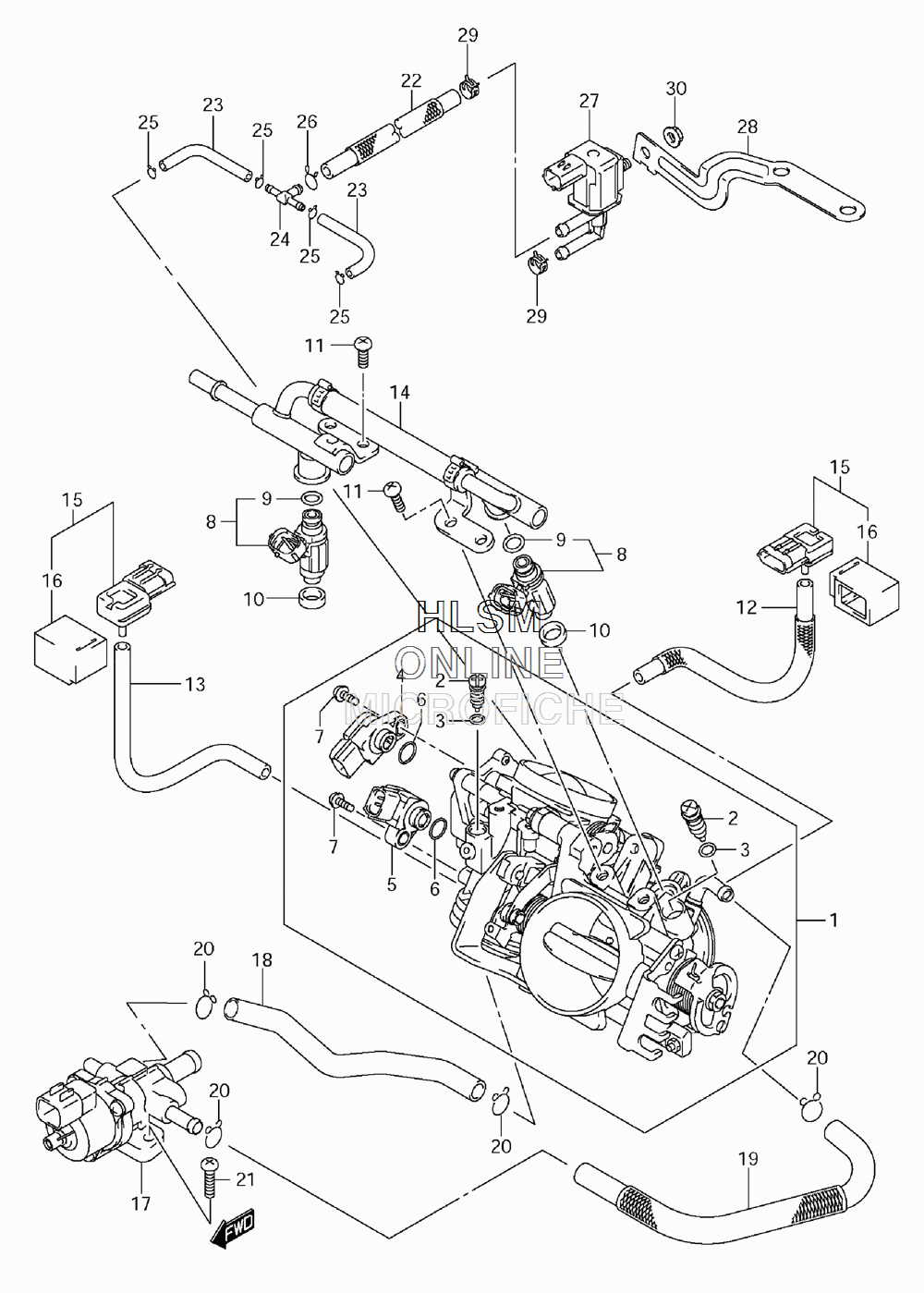

CARBURETOR - THROTTLE BODY для Suzuki VLR1800T K8 - 2008 года выпуска
-
№АртикулНазвание
-
113405-22H00 BODY, THROTTLE (USA/CANADA)BODY, THROTTLE (USA/CANADA)
-
113405-22H10 BODY, THROTTLE (CALIFORNIA) (INCL. 2-7)BODY, THROTTLE (CALIFORNIA) (INCL. 2-7)
-
213269-48G00 ADJUSTERADJUSTER
-
313521-29FA0 O RINGO RING
-
413580-48G10 SENSOR ASSYSENSOR ASSY
-
513580-48G00 SENSOR ASSYSENSOR ASSY
-
613575-29G00 O RINGO RING
-
713605-02F00 SCREWSCREW
-
815710-48G00 INJECTOR ASSY (INCL. 9)INJECTOR ASSY (INCL. 9)
-
915717-16G00 O RINGO RING
-
1015722-29G00 SEALSEAL
-
1113602-06148 SCREWSCREW
-
1213683-22H00 HOSEHOSE
-
1313683-48G10 HOSEHOSE
-
1415730-48G01 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1515630-29G10 SENSOR, PRESSURE (INCL. 16)SENSOR, PRESSURE (INCL. 16)
-
1615625-29G00 COVERCOVER
-
1718117-22H00 VALVE, ISCVALVE, ISC
-
1813697-22H00 HOSE, RIGHT HANDHOSE, RIGHT HAND
-
1913698-22H00 HOSE, LEFT HANDHOSE, LEFT HAND
-
2009401-13102 CLIPCLIP
-
2103111-0625A SCREWSCREW
-
2213671-22H00 HOSEHOSE
-
2313683-22H10 HOSEHOSE
-
2413685-04F10 NIPPLENIPPLE
-
2509401-06101 CLIPCLIP
-
2609401-10401 CLIPCLIP
-
2718117-52G10 VALVE, CANISTER PURGEVALVE, CANISTER PURGE
-
2818119-22H00 BRACKETBRACKET
-
2909401-10409 CLIPCLIP
-
3008316-1006A NUTNUT
