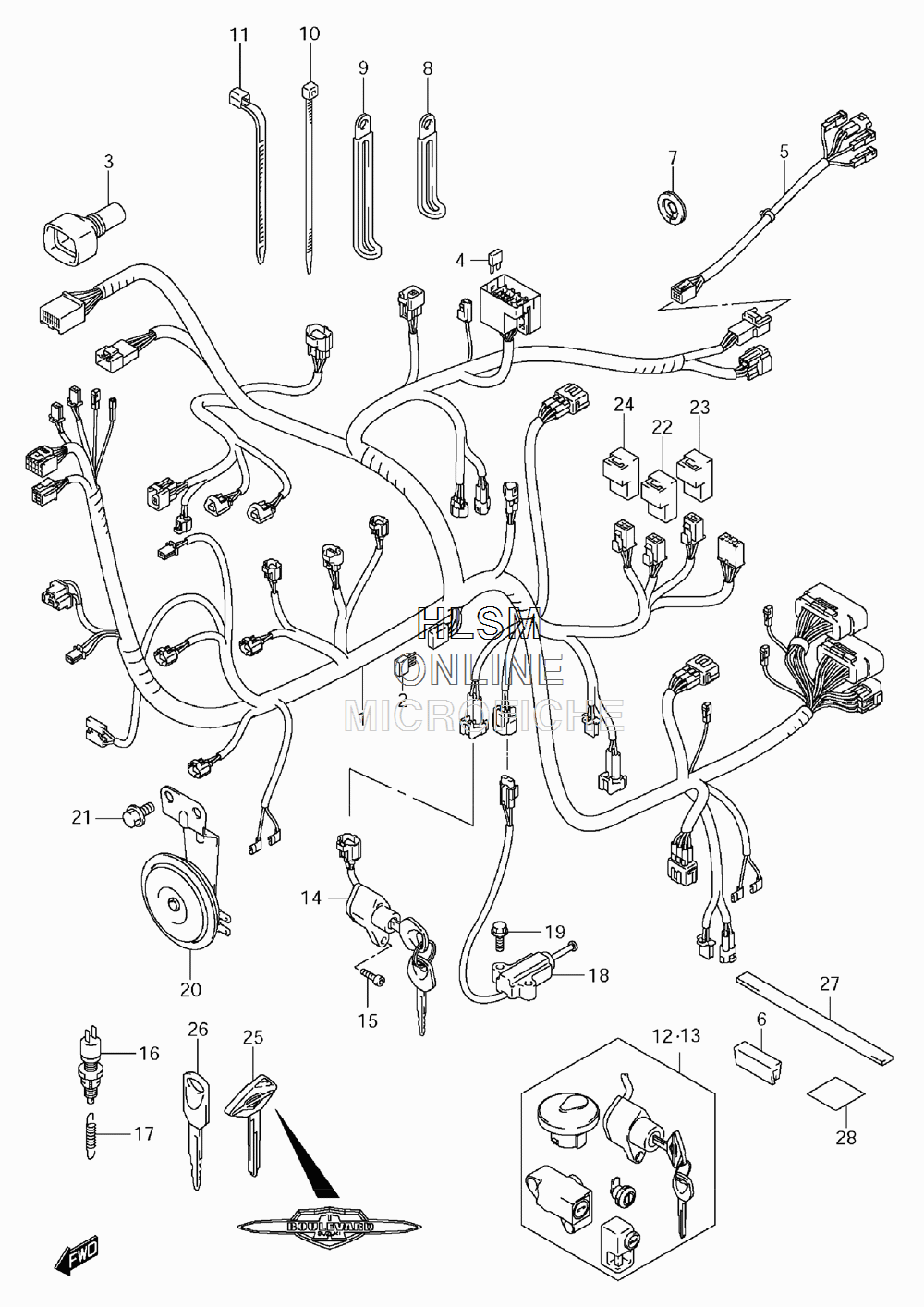

ELECTRICAL - WIRING HARNESS для Suzuki VLR1800T K8 - 2008 года выпуска
-
№АртикулНазвание
-
136610-22H30 HARNESS, WIRINGHARNESS, WIRING
-
136610-22H40 HARNESS, WIRING (INCL. 2-4) (CALIFORNIA)HARNESS, WIRING (INCL. 2-4) (CALIFORNIA)
-
236611-38A00 DIODEDIODE
-
336618-33E00 COVERCOVER
-
409481-10501 FUSE (10A)FUSE (10A)
-
409481-15501 FUSE (15A)FUSE (15A)
-
536858-22H00 WIRE, REAR COMBWIRE, REAR COMB
-
647613-23H00 PROTECTORPROTECTOR
-
709308-10005 GROMMET, RR COMB LEADGROMMET, RR COMB LEAD
-
809404-06429 CLAMP (L:45)CLAMP (L:45)
-
909404-08205 CLAMP (L:45)CLAMP (L:45)
-
909404-08419 CLAMP (L:80)CLAMP (L:80)
-
1009407-14407 CLAMP (L:145)CLAMP (L:145)
-
1109407-18402 CLAMP (L:165)CLAMP (L:165)
-
1109407-19401 CLAMP (L:190)CLAMP (L:190)
-
1109407-25401 CLAMP (L:235)CLAMP (L:235)
-
1237000-22880 LOCK SETLOCK SET
-
1337000-22890 LOCK SET (INCL. 14) (CALIFORNIA)LOCK SET (INCL. 14) (CALIFORNIA)
-
1437110-22H30 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1507130-0616A BOLT, IGNITION SWITCHBOLT, IGNITION SWITCH
-
1637740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1709443-06077 SPRING, STOP LAMP SWITCHSPRING, STOP LAMP SWITCH
-
1837840-22H00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1901550-0625A SCREW, SIDE STAND SWITCHSCREW, SIDE STAND SWITCH
-
2038500-22H00 HORN ASSYHORN ASSY
-
2101550-0612B BOLT, HORNBOLT, HORN
-
2238740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2338740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2438740-24A00 RELAY ASSY, HEADLAMPRELAY ASSY, HEADLAMP
-
2537146-10F00 KEY, BLANK BOULEVARD (OPT)KEY, BLANK BOULEVARD (OPT)
-
2637146-48E10 KEY, BLANKKEY, BLANK
-
2794612-01H00 PROTECTOR (10X90X1.0)PROTECTOR (10X90X1.0)
-
2836920-23H10 PROTECTOR (20X20X1.0)PROTECTOR (20X20X1.0)
