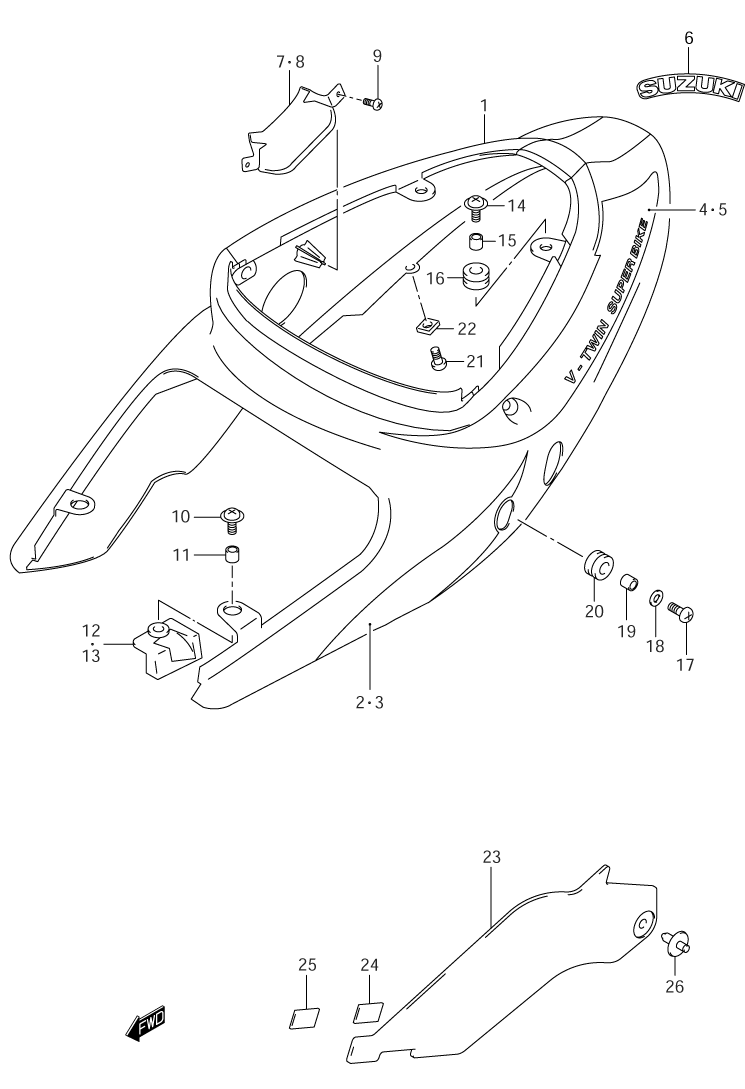

SIDE COVER для Suzuki TL-1000R K3 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47110-02FK0-0JW COVER, FRAME (0JW - PEARL STILL WHITE) (FOR L99)
    COVER, FRAME (0JW - PEARL STILL WHITE) (FOR L99)
  • 1-2
    47110-02FK0-YU9 COVER, FRAME (YU9 - PEARL ORPIMENT YELLOW) (FOR KU2)
    COVER, FRAME (YU9 - PEARL ORPIMENT YELLOW) (FOR KU2)
  • 2-1
    68135-02FA0-1LE ...TAPE, RIGHT - LOWER (1LE - PEARL MEDIUM BLUE) (FOR 0JW)
    ...TAPE, RIGHT - LOWER (1LE - PEARL MEDIUM BLUE) (FOR 0JW)
  • 2-2
    68135-02FA0-019 ...TAPE, RIGHT - LOWER (019 - BLACK) (FOR YU9)
    ...TAPE, RIGHT - LOWER (019 - BLACK) (FOR YU9)
  • 3-1
    68145-02FA0-1LE ...TAPE, LEFT - LOWER (1LE - PEARL MEDIUM BLUE) (FOR 0JW)
    ...TAPE, LEFT - LOWER (1LE - PEARL MEDIUM BLUE) (FOR 0JW)
  • 3-2
    68145-02FA0-019 ...TAPE, LEFT - LOWER (019 - BLACK) (FOR YU9)
    ...TAPE, LEFT - LOWER (019 - BLACK) (FOR YU9)
  • 4-1
    68135-02FF0-3SP ...TAPE, RIGHT - UPPER (3SP - WHITE/BLACK) (FOR 0JW)
    ...TAPE, RIGHT - UPPER (3SP - WHITE/BLACK) (FOR 0JW)
  • 4-2
    68135-02FF0-CT5 ...TAPE, RIGHT - UPPER (CT5 - SILVER/BLACK) (FOR YU9)
    ...TAPE, RIGHT - UPPER (CT5 - SILVER/BLACK) (FOR YU9)
  • 5-1
    68145-02FF0-3SP ...TAPE, LEFT - UPPER (3SP - WHITE/BLACK) (FOR 0JW)
    ...TAPE, LEFT - UPPER (3SP - WHITE/BLACK) (FOR 0JW)
  • 5-2
    68145-02FF0-CT5 ...TAPE, LEFT - UPPER (CT5 - SILVER/BLACK) (FOR YU9)
    ...TAPE, LEFT - UPPER (CT5 - SILVER/BLACK) (FOR YU9)
  • 6
    68131-39F00-019 ...EMBLEM (019 - BLACK)
    ...EMBLEM (019 - BLACK)
  • 7
    47511-02FA0 CAP (RIGHT)
    CAP (RIGHT)
  • 8
    47521-02FA0 CAP (LEFT)
    CAP (LEFT)
  • 9
    03541-04163 SCREW
    SCREW
  • 10
    09136-06022 SCREW (FRONT)
    SCREW (FRONT)
  • 11
    09180-06263 SPACER
    SPACER
  • 12
    47161-02FA0 CUSHION (FRONT/RIGHT)
    CUSHION (FRONT/RIGHT)
  • 13
    47261-02FA0 CUSHION (FRONT)
    CUSHION (FRONT)
  • 14
    09136-06105 SCREW (UPPER)
    SCREW (UPPER)
  • 15
    09180-06286 SPACER
    SPACER
  • 16
    09320-10045 CUSHION
    CUSHION
  • 17
    09139-06071 SCREW, SIDE
    SCREW, SIDE
  • 18
    09160-06054 WASHER
    WASHER
  • 19
    09180-06258 SPACER
    SPACER
  • 20
    94433-26B00 CUSHION
    CUSHION
  • 21
    09409-07313 CLIP (REAR)
    CLIP (REAR)
  • 22
    09148-05038 NUT
    NUT
  • 23
    47321-02FA0 COVER, FRAME (FRONT) (USA/CALIF. ONLY)
    COVER, FRAME (FRONT) (USA/CALIF. ONLY)
  • 24
    47322-02FA0 FASTENER, NO.1 (USA/CALIF. ONLY)
    FASTENER, NO.1 (USA/CALIF. ONLY)
  • 25
    47323-02FA0 FASTENER, NO.2 (USA/CALIF. ONLY)
    FASTENER, NO.2 (USA/CALIF. ONLY)
  • 26
    09409-07330-6GS CLIP (FRONT) (6GS - GRAY) (USA/CALIF. ONLY)
    CLIP (FRONT) (6GS - GRAY) (USA/CALIF. ONLY)
