GASKET SET для Suzuki TL-1000R K3 - 2003 года выпуска

  • №
    Артикул
    Название

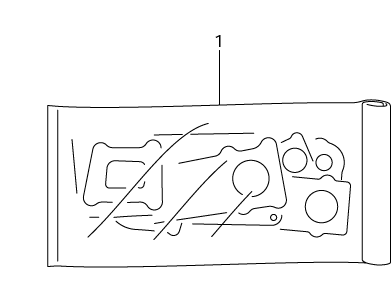

  • 1-3
    11401-02870 GASKET SET
    GASKET SET
  • 2-2
    11141-02F01 ...GASKET, CYLINDER HEAD
    ...GASKET, CYLINDER HEAD
  • 3
    11173-02F00 ...GASKET, (USA)CYLINDER HEAD COVER NO.1
    ...GASKET, (USA)CYLINDER HEAD COVER NO.1
  • 4
    11178-17E00 ...GASKET, CLINDER HEAD COVER NO.2
    ...GASKET, CLINDER HEAD COVER NO.2
  • 5-2
    11241-02F01 ...GASKET, CYLINDER FRONT
    ...GASKET, CYLINDER FRONT
  • 6-2
    11242-02F01 ...GASKET, CYLINDER REAR
    ...GASKET, CYLINDER REAR
  • 7-2
    11482-02F10 ...GASKET, CLUTCH COVER
    ...GASKET, CLUTCH COVER
  • 8-2
    11483-02F10 ...GASKET, MAGNETO COVER
    ...GASKET, MAGNETO COVER
  • 9
    11484-02F10 ...O-RING, CLUTCH COVER OUTER
    ...O-RING, CLUTCH COVER OUTER
  • 10-1
    11485-02F00 ...GASKET, GEAR SHIFT COVER
    ...GASKET, GEAR SHIFT COVER
  • 10-2
    11485-02F10 ...GASKET, GEAR SHIFT COVER
    ...GASKET, GEAR SHIFT COVER
  • 11
    12837-19B10 ...GASKET, TENSIONER ADJUSTER
    ...GASKET, TENSIONER ADJUSTER
  • 12
    12837-24A10 ...GASKET, TENSIONER ADJUSTER
    ...GASKET, TENSIONER ADJUSTER
  • 13
    13925-85553 ...GASKET, UNION BOLT
    ...GASKET, UNION BOLT
  • 14
    14181-02F00 ...GASKET, MUFFLER JOINT
    ...GASKET, MUFFLER JOINT
  • 15
    14181-31D00 ...GASKET, EXHAUST PIPE
    ...GASKET, EXHAUST PIPE
  • 16
    09161-11008 ...WASHER
    ...WASHER
  • 17
    09168-06024 ...GASKET
    ...GASKET
  • 18
    09280-55005 ...O-RING (D:2.4,ID:55.6)
    ...O-RING (D:2.4,ID:55.6)
