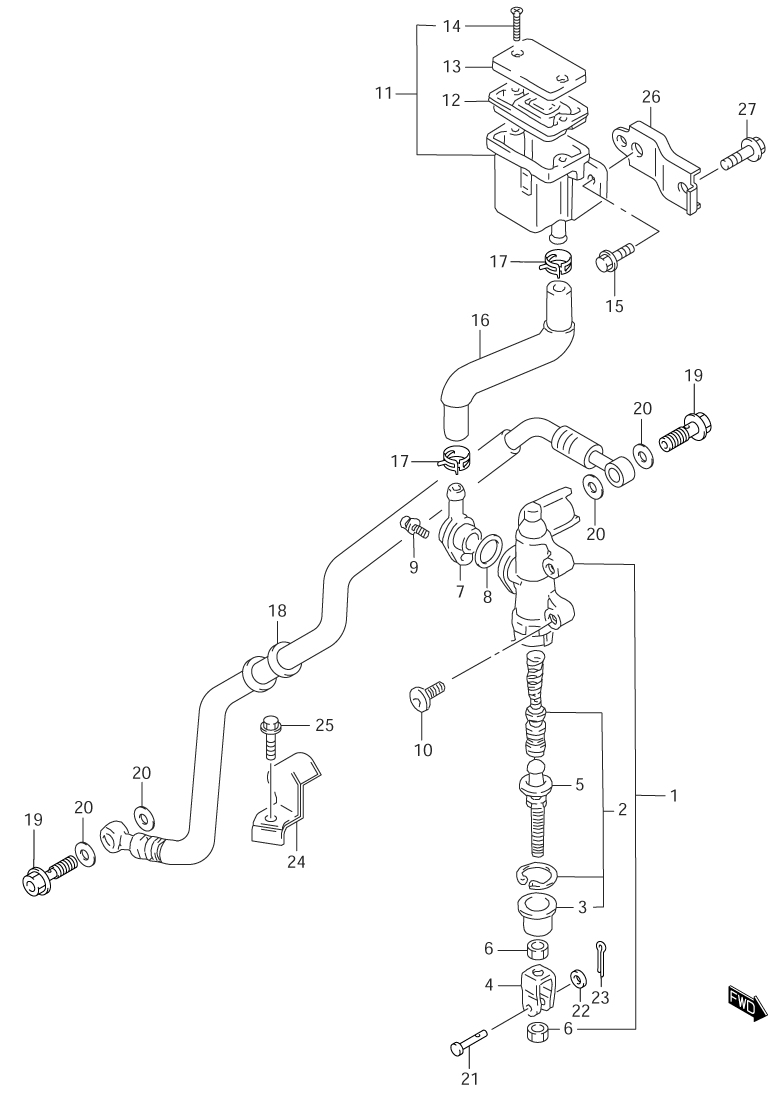

BRAKE - REAR MASTER CYLINDER для Suzuki TL-1000R K3 - 2003 года выпуска`
-
№АртикулНазвание
-
169600-33C00 CYLINDER ASSY. (REAR) MASTERCYLINDER ASSY. (REAR) MASTER
-
269600-04820 ...PISTON / CAP SET...PISTON / CAP SET
-
369691-00A00 ......BOOT......BOOT
-
469692-27A30 ...YOKE...YOKE
-
569670-48B00 ...ROD, PUSH...ROD, PUSH
-
669693-05A00 ...NUT...NUT
-
769672-05A00 ...CONNECTOR...CONNECTOR
-
869686-34200 ...O-RING...O-RING
-
902112-74123 ...SCREW...SCREW
-
1009139-06029 BOLT (6X25)BOLT (6X25)
-
1169740-01D02 TANK ASSY. (REAR) RESERVOIRTANK ASSY. (REAR) RESERVOIR
-
1259667-04700 ...DIAPHRAGM...DIAPHRAGM
-
1359669-05D00 ...CAP...CAP
-
1469689-04A00 ...SCREW...SCREW
-
1501550-06123 BOLTBOLT
-
1669730-02FA0 HOSE, RESERVOIR TANKHOSE, RESERVOIR TANK
-
1709401-13417 CLAMPCLAMP
-
1869480-02FA0 HOSE (REAR) BRAKEHOSE (REAR) BRAKE
-
1909360-10041 BOLT (10X1.00X22)BOLT (10X1.00X22)
-
2009161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
2109200-06037 PINPIN
-
2208322-01063 WASHERWASHER
-
2304111-20158 PIN, COTTERPIN, COTTER
-
2469268-02FA0 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
2501550-06123 BOLTBOLT
-
2669750-02FA0 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
2701550-06123 BOLTBOLT
