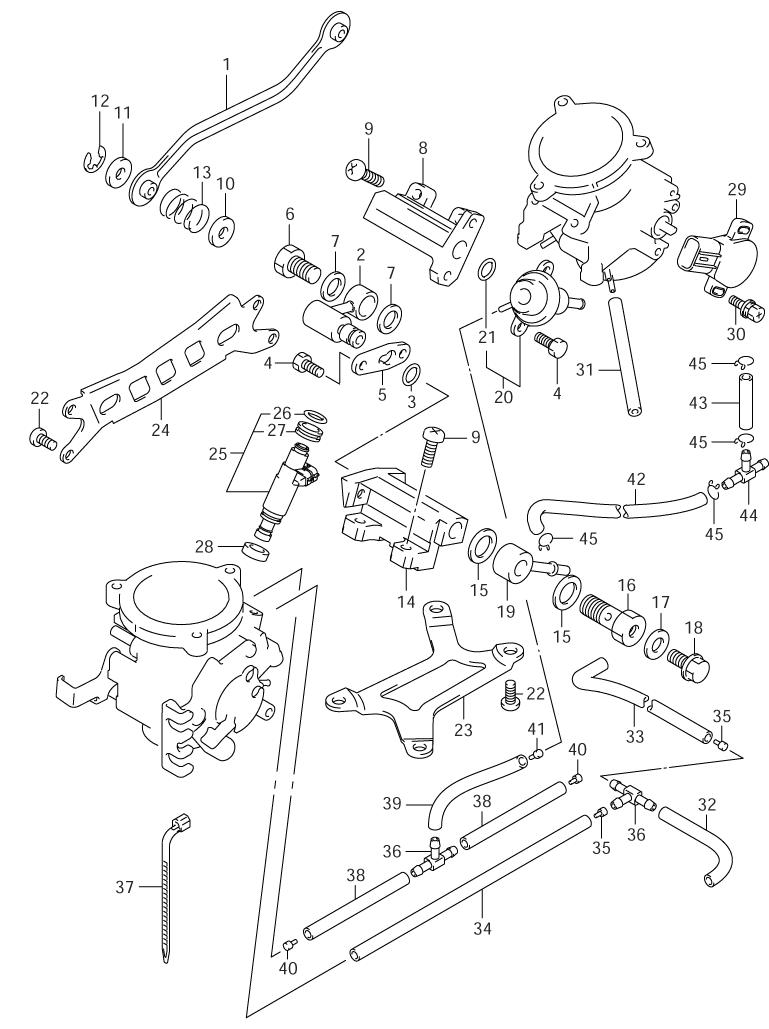

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki TL-1000R K3 - 2003 года выпуска
-
№АртикулНазвание
-
113553-02FA0 LEVER ASSY.LEVER ASSY.
-
213675-02FA0 PIPE ASSY.PIPE ASSY.
-
313374-55A00 O-RINGO-RING
-
413612-02F00 BOLTBOLT
-
513676-02FA0 PLATEPLATE
-
613613-02FA0 BOLTBOLT
-
713677-02FA0 WASHERWASHER
-
813678-02FA0 PIPE, DELIVERYPIPE, DELIVERY
-
913602-06168 SCREWSCREW
-
10-213615-02F20 RINGRING
-
11-213615-02F10 RINGRING
-
1213617-44500 E-RINGE-RING
-
1313546-02FA0 SPRINGSPRING
-
1413678-02FB0 PIPE, DELIVERYPIPE, DELIVERY
-
1513925-85553 GASKETGASKET
-
1613923-85551 BOLTBOLT
-
1709168-06023 GASKETGASKET
-
1817568-50F00 PLUGPLUG
-
1915815-02F00 CONNECTORCONNECTOR
-
2015610-02FA0 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
2115710-09300 ...O-RING...O-RING
-
2213602-06128 SCREWSCREW
-
2313628-02FA0 PLATEPLATE
-
2413629-02FA0 PLATEPLATE
-
2515710-02FB0 INJECTOR ASSY.INJECTOR ASSY.
-
2615717-02F00 ...O-RING...O-RING
-
2715720-09300 ...GROMMET...GROMMET
-
2813672-33E00 PACKINGPACKING
-
2913580-02F00 SENSOR ASSY.SENSOR ASSY.
-
3013605-02F00 SCREWSCREW
-
3109355-35755-600 HOSEHOSE
-
3209355-30705-600 HOSEHOSE
-
3313683-02FA0 HOSEHOSE
-
34-213683-10F60 HOSEHOSE
-
3509493-36005 JET, AIRJET, AIR
-
36-213685-02FA0 NIPPLENIPPLE
-
3713671-02F00 CLAMPCLAMP
-
3809355-30705-600 HOSEHOSE
-
3909355-30705-600 HOSEHOSE
-
4009493-20015 JET, AIRJET, AIR
-
4109493-50006 JET, AIRJET, AIR
-
4213683-02FC0 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
4313683-02FB0 HOSE (CALIF. ONLY)HOSE (CALIF. ONLY)
-
4413685-48B00 NIPPLE (CALIF. ONLY)NIPPLE (CALIF. ONLY)
-
4509401-10410 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
