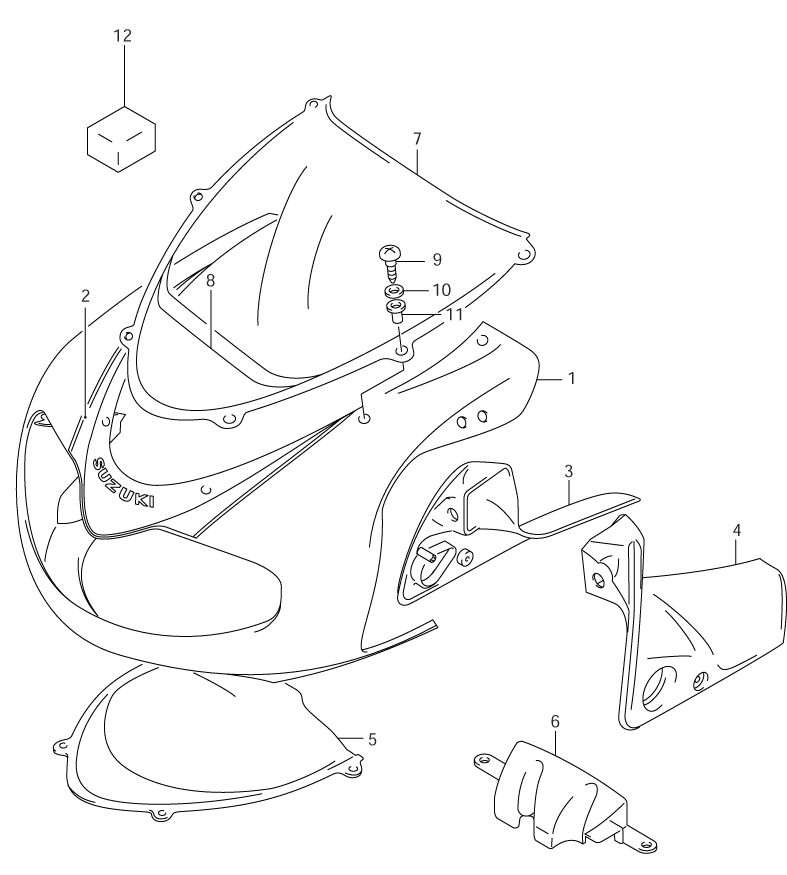

COWLING BODY для Suzuki TL-1000R K3 - 2003 года выпуска

№

Артикул

Название
1-1

94401-02FH0-1LF COWLING ASSY., BODY (1LF - BLUE) (FOR L99)

COWLING ASSY., BODY (1LF - BLUE) (FOR L99)
1-2

94401-02FH0-YU9 COWLING ASSY., BODY (YU9 - YELLOW) (FOR KU2)

COWLING ASSY., BODY (YU9 - YELLOW) (FOR KU2)
2-1

68275-02FC0-FL3 ...TAPE, FRONT (FL3 - WHITE/BLACK/BLUE) (FOR 1LF)

...TAPE, FRONT (FL3 - WHITE/BLACK/BLUE) (FOR 1LF)
2-2

68275-02FC0-LN5 ...TAPE, FRONT (LN5 - SILVER/YELLOW/BLACK) (FOR YU9)

...TAPE, FRONT (LN5 - SILVER/YELLOW/BLACK) (FOR YU9)
3

94415-02FA0-291 PANEL, SIDE - RIGHT (291 - BLACK)

PANEL, SIDE - RIGHT (291 - BLACK)
4

94425-02FA0-291 PANEL, SIDE - LEFT (291 - BLACK)

PANEL, SIDE - LEFT (291 - BLACK)
5

94440-02FA0 COVER, BODY

COVER, BODY
6

94457-02FA0 COVER (FRONT/LOWER)

COVER (FRONT/LOWER)
7

94610-02FA0 WINDSCREEN

WINDSCREEN
8

68275-02FA0 ...TAPE

...TAPE
9

09139-05025 SCREW

SCREW
10

08322-01053 WASHER

WASHER
11

09159-05019 NUT

NUT
12

94475-02FA0 CUSHION, BODY COWL

CUSHION, BODY COWL
