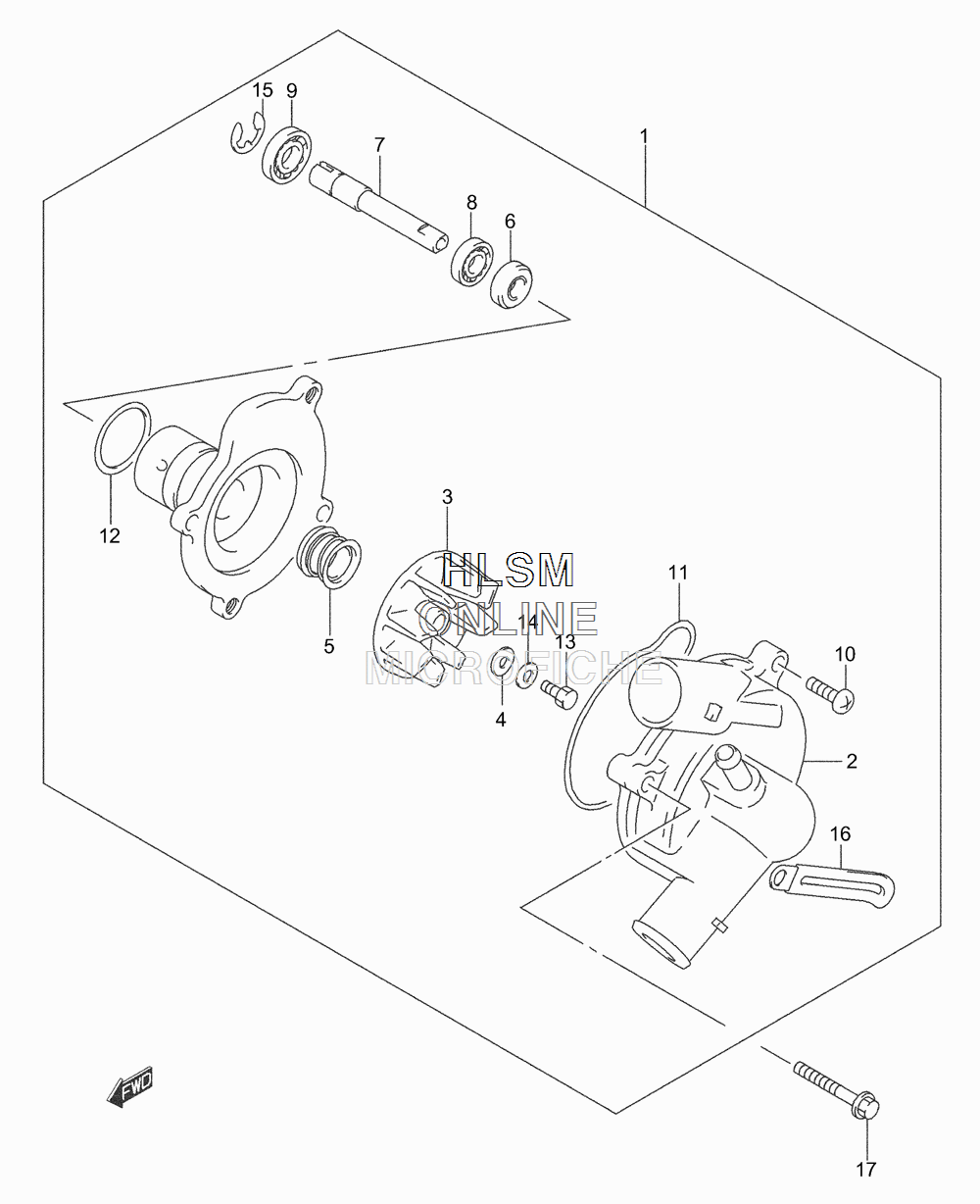

WATER PUMP для Suzuki GSX-R1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
117400-40F00 PUMP ASSY, WATER (INC. 2-16)PUMP ASSY, WATER (INC. 2-16)
-
217411-40F00 CASE, WATER PUMPCASE, WATER PUMP
-
317491-40F00 IMPELLERIMPELLER
-
409168-06025 GASKETGASKET
-
517470-02F10 SEAL, MECHANICALSEAL, MECHANICAL
-
617419-29F00 OIL SEALOIL SEAL
-
717511-40F00 SHAFTSHAFT
-
809262-10014 BEARING (10X26X8)BEARING (10X26X8)
-
909262-12001 BEARING (12X28X8)BEARING (12X28X8)
-
1002112-06163 SCREWSCREW
-
1117418-40F00 O RINGO RING
-
1217435-40F00 O RINGO RING
-
1309100-06099 BOLT (6X13)BOLT (6X13)
-
1409164-06006 LOCK WASHERLOCK WASHER
-
1508332-11093 E RINGE RING
-
1609404-06432 CLAMP (L:80)CLAMP (L:80)
-
1701547-06353 BOLTBOLT
