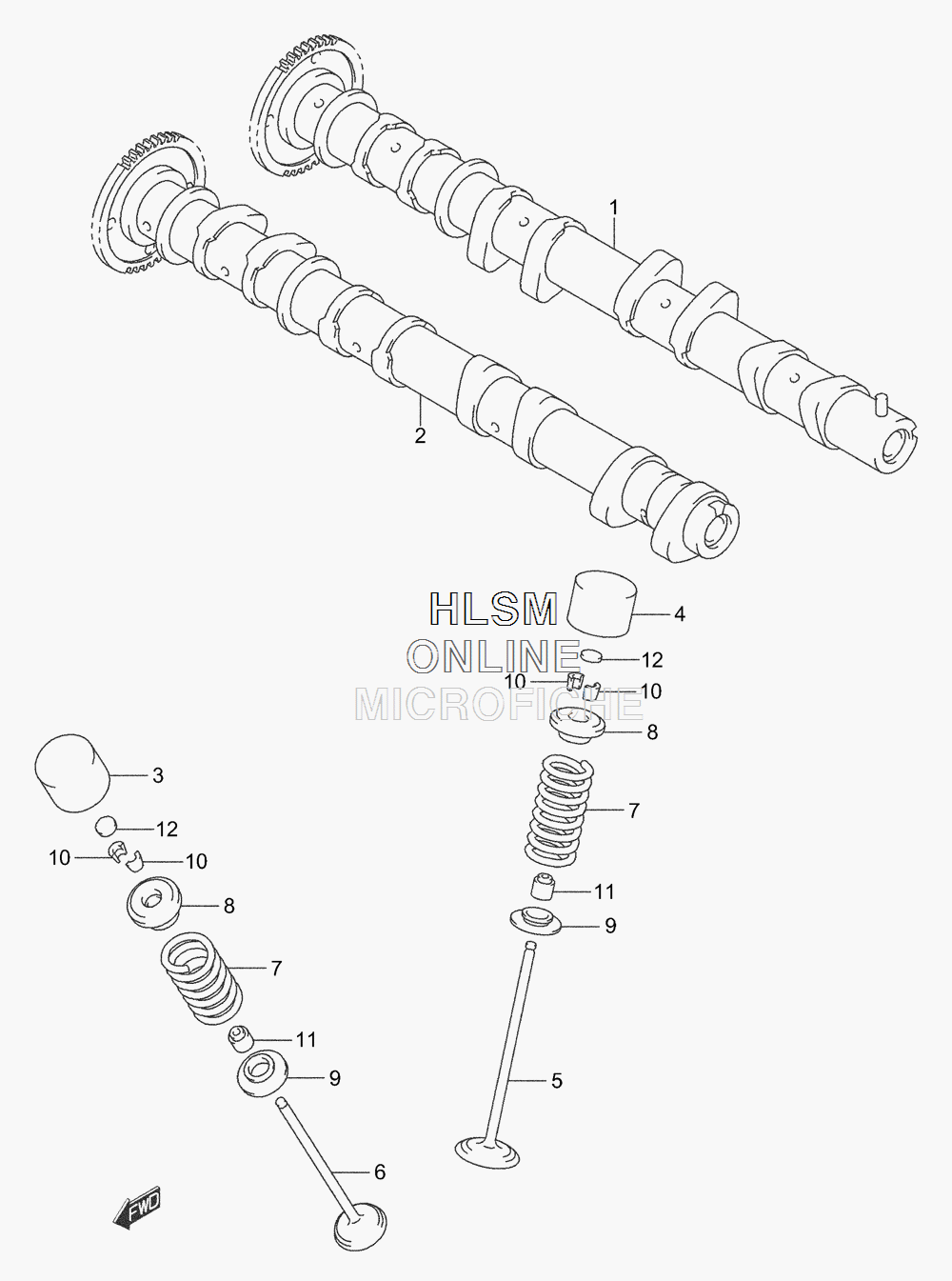

CAMSHAFT W/ VALVES для Suzuki GSX-R1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
112710-18G00 CAM SHAFT, INTAKECAM SHAFT, INTAKE
-
212720-18G00 CAM SHAFT, EXHAUSTCAM SHAFT, EXHAUST
-
312891-35F00 TAPPET, EXHAUSTTAPPET, EXHAUST
-
412891-17E00 TAPPET, INTAKETAPPET, INTAKE
-
512911-35F00 VALVE, INTAKEVALVE, INTAKE
-
612912-35F00 VALVE, EXHAUSTVALVE, EXHAUST
-
712921-40F00 SPRING, VALVESPRING, VALVE
-
812931-35F10 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
912933-35F10 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1012932-05C00 COTTER, VALVECOTTER, VALVE
-
1109289-04003 OIL SEALOIL SEAL
-
1212892-05C00-120 SHIM, TAPPET (T:1.20)SHIM, TAPPET (T:1.20)
-
1212892-05C00-125 SHIM, TAPPET (T:1.25)SHIM, TAPPET (T:1.25)
-
1212892-05C00-130 SHIM, TAPPET (T:1.30)SHIM, TAPPET (T:1.30)
-
1212892-05C00-135 SHIM, TAPPET (T:1.35)SHIM, TAPPET (T:1.35)
-
1212892-05C00-140 SHIM, TAPPET (T:1.40)SHIM, TAPPET (T:1.40)
-
1212892-05C00-145 SHIM, TAPPET (T:1.45)SHIM, TAPPET (T:1.45)
-
1212892-05C00-150 SHIM, TAPPET (T:1.50)SHIM, TAPPET (T:1.50)
-
1212892-05C00-155 SHIM, TAPPET (T:1.55)SHIM, TAPPET (T:1.55)
-
1212892-05C00-160 SHIM, TAPPET (T:1.60)SHIM, TAPPET (T:1.60)
-
1212892-05C00-165 SHIM, TAPPET (T:1.65)SHIM, TAPPET (T:1.65)
-
1212892-05C00-170 SHIM, TAPPET (T:1.70)SHIM, TAPPET (T:1.70)
-
1212892-05C00-175 SHIM, TAPPET (T:1.75)SHIM, TAPPET (T:1.75)
-
1212892-05C00-180 SHIM, TAPPET (T:1.80)SHIM, TAPPET (T:1.80)
-
1212892-05C00-185 SHIM, TAPPET (T:1.85)SHIM, TAPPET (T:1.85)
-
1212892-05C00-190 SHIM, TAPPET (T:1.90)SHIM, TAPPET (T:1.90)
-
1212892-05C00-195 SHIM, TAPPET (T:1.95)SHIM, TAPPET (T:1.95)
-
1212892-05C00-200 SHIM, TAPPET (T:2.00)SHIM, TAPPET (T:2.00)
-
1212892-05C00-205 SHIM, TAPPET (T:2.05)SHIM, TAPPET (T:2.05)
-
1212892-05C00-210 SHIM, TAPPET (T:2.10)SHIM, TAPPET (T:2.10)
-
1212892-05C00-215 SHIM, TAPPET (T:2.15)SHIM, TAPPET (T:2.15)
-
1212892-05C00-220 SHIM, TAPPET (T:2.20)SHIM, TAPPET (T:2.20)
-
1312800-05830 SHIM SET, TAPPET (OPT) (NOT SHOWN) (INCL. 14)SHIM SET, TAPPET (OPT) (NOT SHOWN) (INCL. 14)
-
1499000-69491 CASE, TAPPET SHIM (OPT) (NOT SHOWN)CASE, TAPPET SHIM (OPT) (NOT SHOWN)
