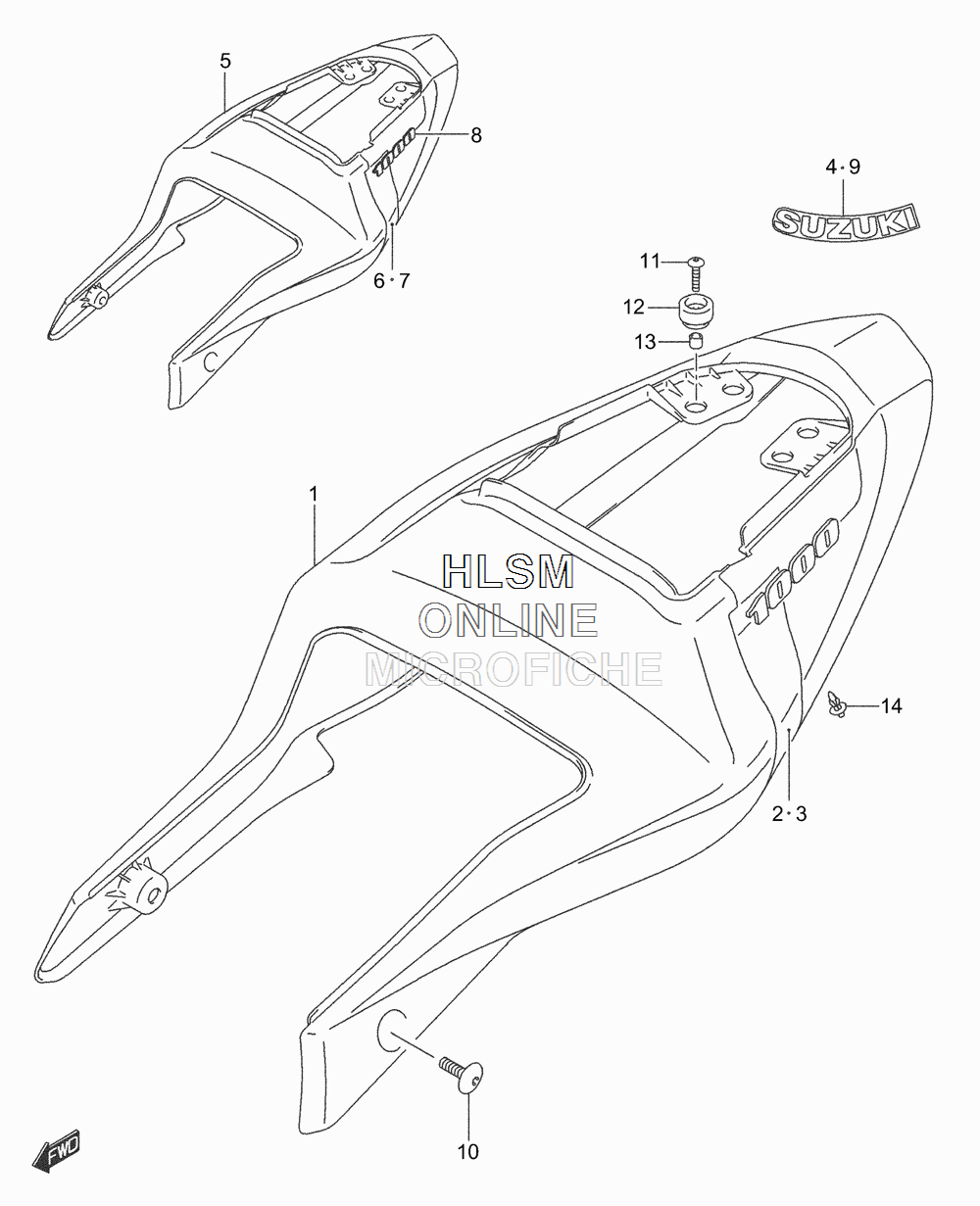

SIDE COVER для Suzuki GSX-R1000 K3 - 2003 года выпуска

№

Артикул

Название
1

47100-18G00-YBD COVER ASSY, FRAME (WHITE) (FOR LR5) (INCL. 2-4)

COVER ASSY, FRAME (WHITE) (FOR LR5) (INCL. 2-4)
1

47100-18G00-YAV COVER ASSY, FRAME (ORANGE) (FOR LR8) (INCL. 2-4)

COVER ASSY, FRAME (ORANGE) (FOR LR8) (INCL. 2-4)
2

68135-18G00-MZ3 TAPE, FRAME COVER RIGHT HAND (FOR YBD)

TAPE, FRAME COVER RIGHT HAND (FOR YBD)
2

68135-18G00-MZ4 TAPE, FRAME COVER RIGHT HAND (FOR YAV)

TAPE, FRAME COVER RIGHT HAND (FOR YAV)
3

68145-18G00-MZ3 TAPE, FRAME COVER LEFT HAND (FOR YBD)

TAPE, FRAME COVER LEFT HAND (FOR YBD)
3

68145-18G00-MZ4 TAPE, FRAME COVER LEFT HAND (FOR YAV)

TAPE, FRAME COVER LEFT HAND (FOR YAV)
4

68131-18G00-MZ5 EMBLEM (FOR YBD)

EMBLEM (FOR YBD)
4

68131-18G00-MZ6 EMBLEM (FOR YAV)

EMBLEM (FOR YAV)
5

47100-18G10-YD8 COVER ASSY, FRAME (SILVER) (FOR YD8)

COVER ASSY, FRAME (SILVER) (FOR YD8)
6

68135-18G10-MZ7 TAPE, FRAME COVER RIGHT HAND (FOR YD8)

TAPE, FRAME COVER RIGHT HAND (FOR YD8)
7

68145-18G10-MZ7 TAPE, FRAME COVER LEFT HAND (FOR YD8)

TAPE, FRAME COVER LEFT HAND (FOR YD8)
8

68131-18G10-MZ8 EMBLEM, ''1000'' (FOR YD8)

EMBLEM, ''1000'' (FOR YD8)
9

68131-18G00-HT6 EMBLEM (FOR YD8)

EMBLEM (FOR YD8)
10

09139-06131 SCREW, FRONT

SCREW, FRONT
11

09139-06029 SCREW, UPPER

SCREW, UPPER
12

09180-06286 SPACER

SPACER
13

09320-10045 CUSHION

CUSHION
14

09409-06314-5PK CLIP, LOWER (BLACK)

CLIP, LOWER (BLACK)
