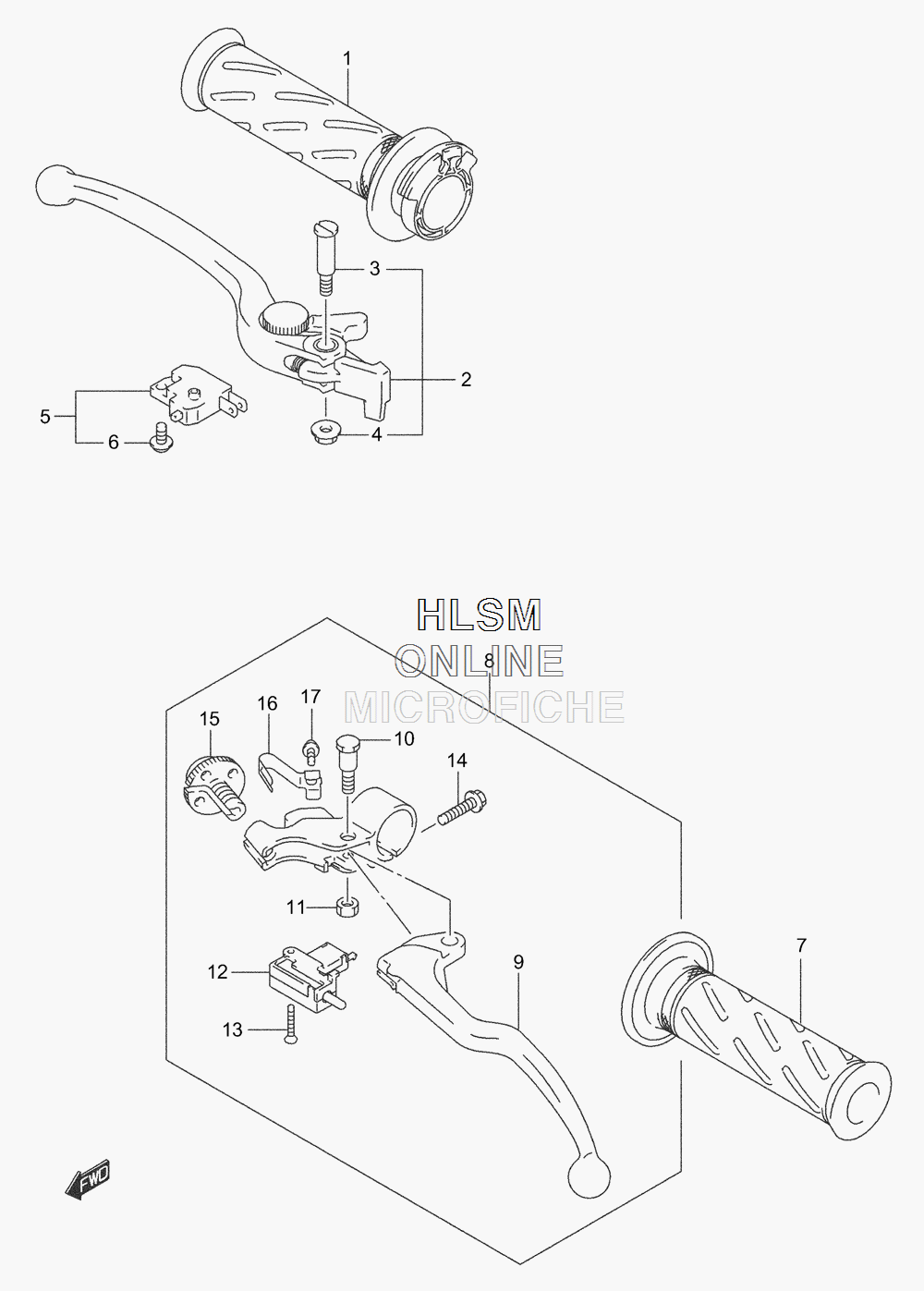

HANDLEBAR - LEVERS для Suzuki GSX-R1000 K3 - 2003 года выпуска

№

Артикул

Название
1

57110-46E01 GRIP, THROTTLE

GRIP, THROTTLE
2

57300-33E01 LEVER ASSY, BRAKE (INCL. 3-4)

LEVER ASSY, BRAKE (INCL. 3-4)
3

57431-17C00 BOLT, KNOCKER

BOLT, KNOCKER
4

08316-10063 NUT

NUT
5

57460-17C00 SWITCH ASSY, STOP (INCL. 6)

SWITCH ASSY, STOP (INCL. 6)
6

57465-17C00 SCREW

SCREW
7

57211-22D01 GRIP, LEFT HAND

GRIP, LEFT HAND
8

57500-40F00 LEVER ASSY, CLUTCH (INCL. 9-17)

LEVER ASSY, CLUTCH (INCL. 9-17)
9

57621-40F00 LEVER, CLUTCH

LEVER, CLUTCH
10

57431-45C01 BOLT

BOLT
11

08319-21063 NUT

NUT
12

57560-05A00 SWITCH ASSY, CLUTCH

SWITCH ASSY, CLUTCH
13

02122-03208 SCREW

SCREW
14

01547-06203 BOLT, HOLDER

BOLT, HOLDER
15

57641-33E20 NUT, CABLE ADJUSTER

NUT, CABLE ADJUSTER
16

57644-33E00 SPRING

SPRING
17

57642-33E00 SCREW, SPRING

SCREW, SPRING
