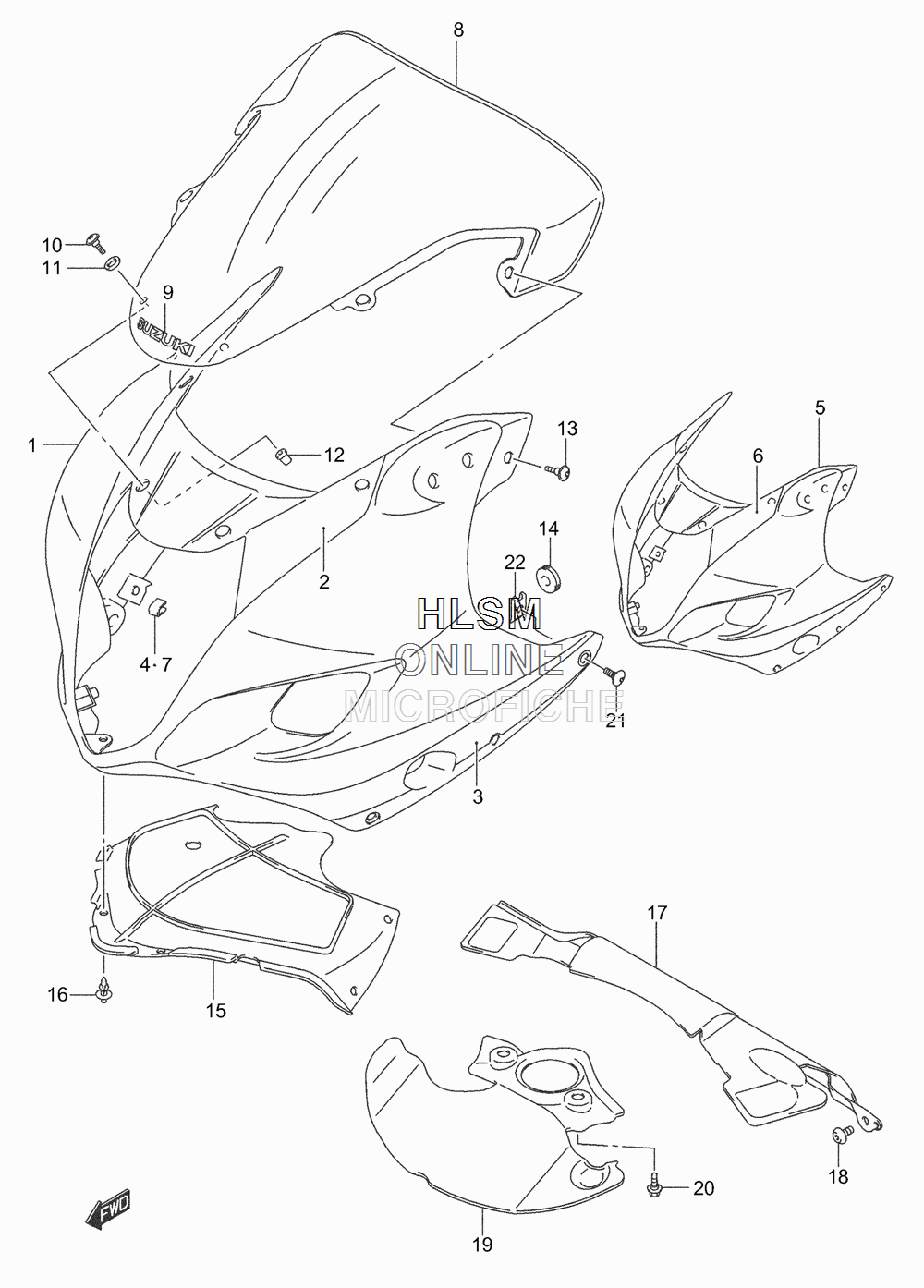

COWLING BODY для Suzuki GSX-R1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
194410-18G00-YBA COWLING, BODY (BLUE) (FOR LR5) (INCL. 2-4)COWLING, BODY (BLUE) (FOR LR5) (INCL. 2-4)
-
194410-18G00-019 COWLING, BODY (BLACK) (FOR LR8) (INCL. 2-4)COWLING, BODY (BLACK) (FOR LR8) (INCL. 2-4)
-
268280-18G00-LR5 TAPE SET, FRONT (FOR YBA)TAPE SET, FRONT (FOR YBA)
-
268280-18G00-CT5 TAPE SET, FRONT (FOR 019)TAPE SET, FRONT (FOR 019)
-
368280-18G10-LS3 TAPE SET, SIDE (FOR YBA)TAPE SET, SIDE (FOR YBA)
-
368280-18G10-LR8 TAPE SET, SIDE (FOR 019)TAPE SET, SIDE (FOR 019)
-
494425-14G00 CUSHIONCUSHION
-
594410-18G10-YD8 COWLING, BODY (SILVER) (FOR YD8) (INCL. 6-7)COWLING, BODY (SILVER) (FOR YD8) (INCL. 6-7)
-
668280-18G00-FP2 TAPE SET, FRONT (FOR YD8)TAPE SET, FRONT (FOR YD8)
-
794425-14G00 CUSHIONCUSHION
-
894610-18G00-CT5 WINDSCREEN (INCL. 9)WINDSCREEN (INCL. 9)
-
968275-18G00-CT5 TAPETAPE
-
1009139-05025 SCREWSCREW
-
1108322-01053 WASHERWASHER
-
1209159-05019 NUTNUT
-
1309139-05055 SCREW, REARSCREW, REAR
-
1409320-08028 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
1594419-18G00 COVER, BODY COWLCOVER, BODY COWL
-
1609409-06314-5PK CLIP, LID (BLACK)CLIP, LID (BLACK)
-
1794457-18G00 COVER, COWL FRONT LOWERCOVER, COWL FRONT LOWER
-
1809139-05074 BOLT LOWER COVERBOLT LOWER COVER
-
1994458-18G00 COVER, BRACKETCOVER, BRACKET
-
2063161-43E00 BOLT, NO.2BOLT, NO.2
-
2109139-05064 SCREW, SIDESCREW, SIDE
-
2294484-24F00 NUTNUT
