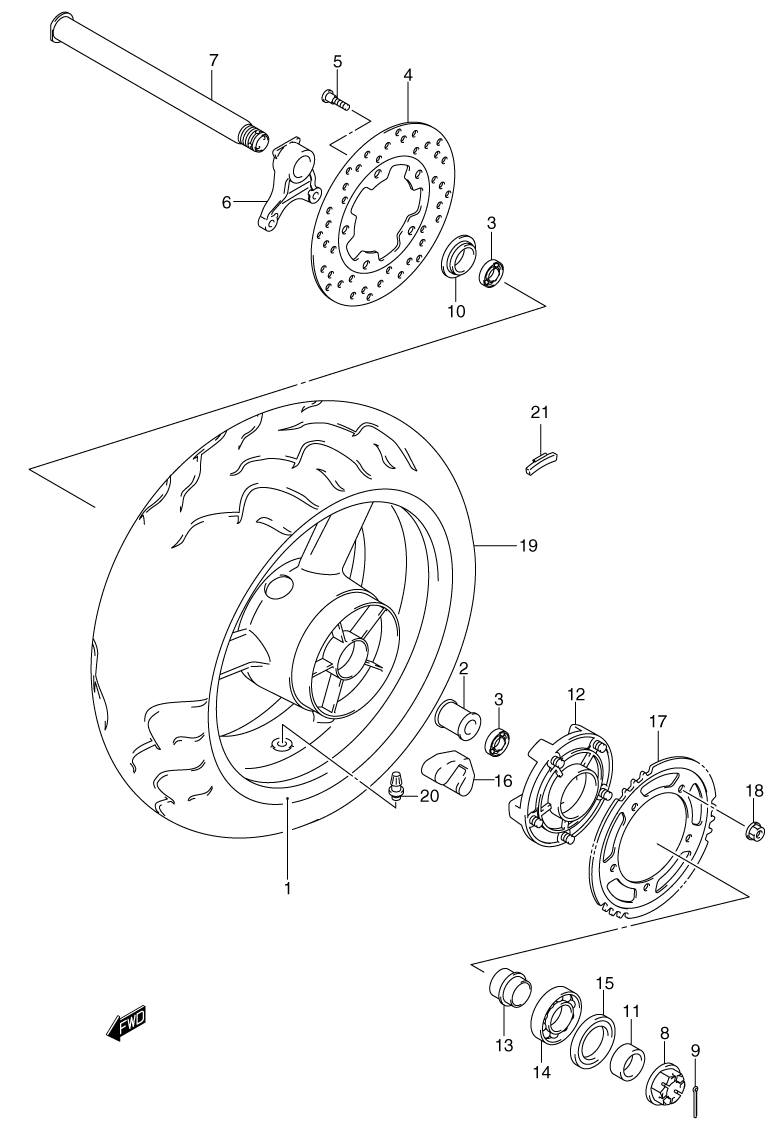

WHEEL - REAR для Suzuki GSX-R750 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    64111-35F00-28W WHEEL (REAR) (17XMT5.50) (28W - WHITE) (FOR L99 - WHITE/BLUE)
    WHEEL (REAR) (17XMT5.50) (28W - WHITE) (FOR L99 - WHITE/BLUE)
  • 1-2
    64111-35F00-019 WHEEL (REAR) (17XMT5.50) (019 - BLACK) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)
    WHEEL (REAR) (17XMT5.50) (019 - BLACK) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)
  • 2
    64731-35F00 SPACER, HUB BEARING
    SPACER, HUB BEARING
  • 3
    09262-28043 BEARING (28X52X12)
    BEARING (28X52X12)
  • 4
    69211-33E00 DISC, BRAKE (REAR)
    DISC, BRAKE (REAR)
  • 5
    09106-08148 BOLT
    BOLT
  • 6
    69721-35F00 BRACKET, CALIPER (REAR)
    BRACKET, CALIPER (REAR)
  • 7
    64711-33E10 AXLE (REAR)
    AXLE (REAR)
  • 8
    09141-25001 NUT
    NUT
  • 9
    04111-40408 PIN, COTTER
    PIN, COTTER
  • 10
    64740-35F00 SPACER, AXLE (RIGHT)
    SPACER, AXLE (RIGHT)
  • 11
    64751-35F00 SPACER, AXLE (LEFT)
    SPACER, AXLE (LEFT)
  • 12
    64610-35F00 DRUM, SPROCKET (REAR)
    DRUM, SPROCKET (REAR)
  • 13
    64733-35F00 RETAINER, SPROCKET DRUM
    RETAINER, SPROCKET DRUM
  • 14
    09262-32007 BEARING (32X65X17)
    BEARING (32X65X17)
  • 15
    09285-39001 SEAL (39X65X7)
    SEAL (39X65X7)
  • 16
    64651-35F00 ABSORBER, HUB SHOCK
    ABSORBER, HUB SHOCK
  • 17
    64511-35F00 SPROCKET (REAR) (NT:42)
    SPROCKET (REAR) (NT:42)
  • 18
    08319-31107 NUT
    NUT
