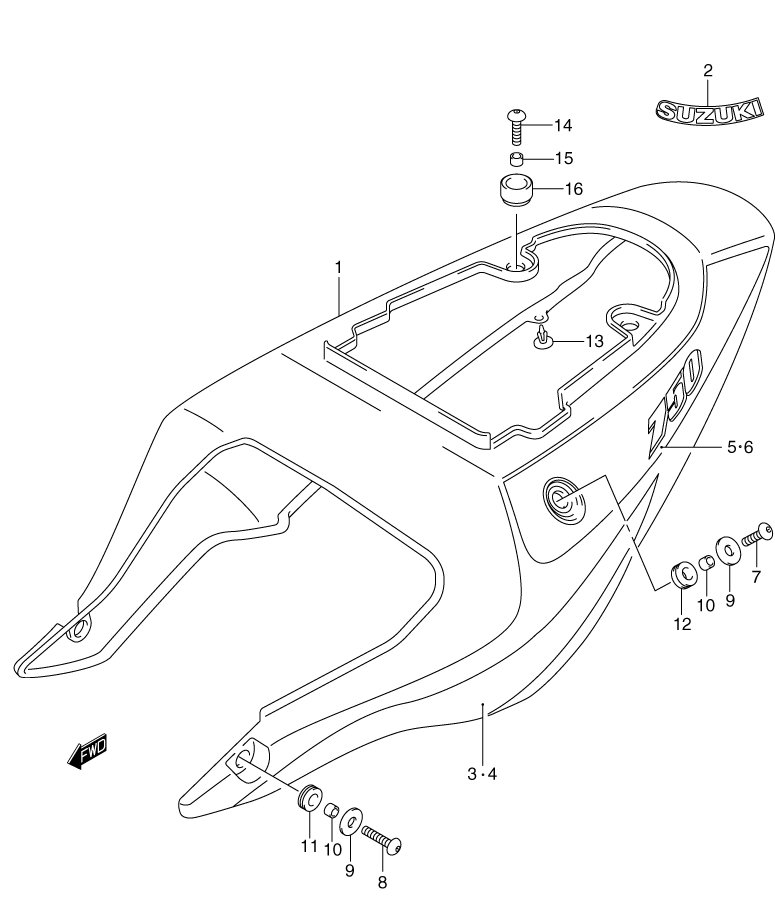

SIDE COVER для Suzuki GSX-R750 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    47100-35F30-0JW COVER ASSY., FRAME (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    COVER ASSY., FRAME (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 1-2
    47100-35F30-Y9H COVER ASSY., FRAME (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    COVER ASSY., FRAME (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 1-3
    47100-35F30-YD8 COVER ASSY., FRAME (YD8 - SILVER) (FOR FN9 - RED/SILVER)
    COVER ASSY., FRAME (YD8 - SILVER) (FOR FN9 - RED/SILVER)
  • 2-1
    68131-39F00-019 ...EMBLEM (019 - BLACK) (FOR L99 - WHITE/BLUE)
    ...EMBLEM (019 - BLACK) (FOR L99 - WHITE/BLUE)
  • 2-2
    68131-39F00-Y7L ...EMBLEM (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    ...EMBLEM (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 2-3
    68131-39F00-Y7M ...EMBLEM (Y7M - RED) (FOR FN9 - RED/SILVER)
    ...EMBLEM (Y7M - RED) (FOR FN9 - RED/SILVER)
  • 3-1
    68135-35F30-1LE ...TAPE (FRONT) (RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE (FRONT) (RIGHT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
  • 3-2
    68135-35F30-Y7L ...TAPE (FRONT) (RIGHT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE (FRONT) (RIGHT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 3-3
    68135-35F30-Y7M ...TAPE (FRONT) (RIGHT) (Y7M - RED) (FOR FN9 - RED/SILVER)
    ...TAPE (FRONT) (RIGHT) (Y7M - RED) (FOR FN9 - RED/SILVER)
  • 4-1
    68145-35F30-1LE ...TAPE (FRONT) (LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE (FRONT) (LEFT) (1LE - BLUE) (FOR L99 - WHITE/BLUE)
  • 4-2
    68145-35F30-Y7L ...TAPE (FRONT) (LEFT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE (FRONT) (LEFT) (Y7L - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 4-3
    68145-35F30-Y7M ...TAPE (FRONT) (LEFT) (Y7M - RED) (FOR FN9 - RED/SILVER)
    ...TAPE (FRONT) (LEFT) (Y7M - RED) (FOR FN9 - RED/SILVER)
  • 5-1
    68135-35F40-FS8 ...TAPE (REAR) (RIGHT) (FS8 - BLACK/ORANGE) (FOR L99 - WHITE/BLUE)
    ...TAPE (REAR) (RIGHT) (FS8 - BLACK/ORANGE) (FOR L99 - WHITE/BLUE)
  • 5-2
    68135-35F40-FP2 ...TAPE (REAR) (RIGHT) (FP2 - SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE (REAR) (RIGHT) (FP2 - SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 5-3
    68135-35F40-M4L ...TAPE (REAR) (RIGHT) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
    ...TAPE (REAR) (RIGHT) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
  • 6-1
    68145-35F40-FS8 ...TAPE (REAR) (LEFT) (FS8 - BLACK/ORANGE) (FOR L99 - WHITE/BLUE)
    ...TAPE (REAR) (LEFT) (FS8 - BLACK/ORANGE) (FOR L99 - WHITE/BLUE)
  • 6-2
    68145-35F40-FP2 ...TAPE, (REAR) (LEFT) (FP2 - SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, (REAR) (LEFT) (FP2 - SILVER/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 6-3
    68145-35F40-M4L ...TAPE (REAR) (LEFT) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
    ...TAPE (REAR) (LEFT) (M4L -BLACK/RED) (FOR FN9 - RED/SILVER)
  • 7
    09139-06029 SCREW, SIDE
    SCREW, SIDE
  • 8
    09139-06042 SCREW (FRONT)
    SCREW (FRONT)
  • 9
    09160-06047 WASHER
    WASHER
  • 10
    09180-06283 SPACER
    SPACER
  • 11
    47161-35F00 CUSHION (FRONT)
    CUSHION (FRONT)
  • 12
    47161-35F10 CUSHION, SIDE
    CUSHION, SIDE
  • 13
    09409-06314-5PK CLIP (LOWER/BLACK)
    CLIP (LOWER/BLACK)
  • 14
    09139-06029 SCREW (UPPER)
    SCREW (UPPER)
  • 15
    09180-06286 SPACER
    SPACER
  • 16
    09320-10045 CUSHION (UPPER)
    CUSHION (UPPER)
