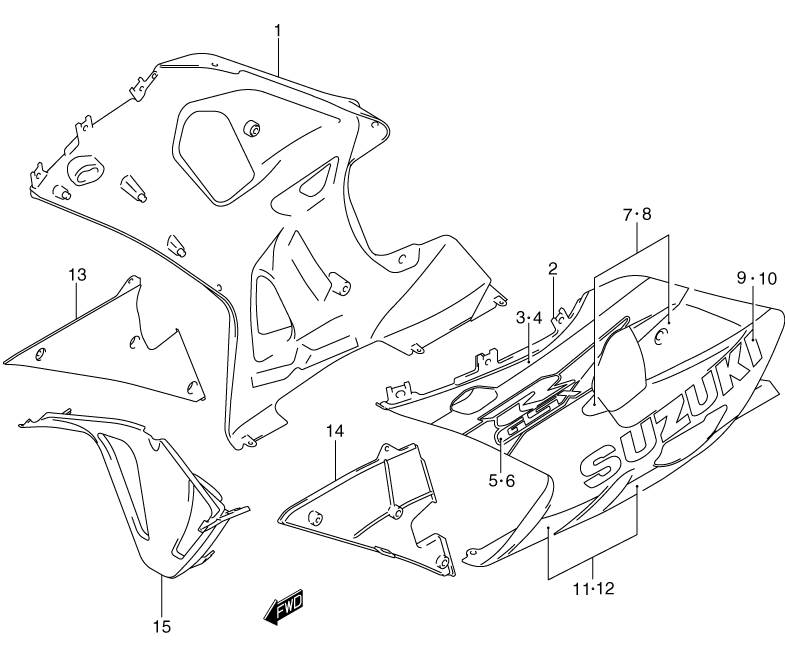

COWLING - UNDER BODY для Suzuki GSX-R750 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94407-39F00-1UX UNDER COWL ASSY. - RIGHT (1UX - BLUE) (FOR L99 - WHITE/BLUE)
    UNDER COWL ASSY. - RIGHT (1UX - BLUE) (FOR L99 - WHITE/BLUE)
  • 1-2
    94407-39F00-YHX UNDER COWL ASSY. - RIGHT (YHX - BLACK) (FOR BP9 - YELLOW/BLACK)
    UNDER COWL ASSY. - RIGHT (YHX - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 1-3
    94407-39F00-Y7M UNDER COWL ASSY. - RIGHT (Y7M - RED) (FOR FN9 - RED/SILVER)
    UNDER COWL ASSY. - RIGHT (Y7M - RED) (FOR FN9 - RED/SILVER)
  • 2-1
    94408-39F00-1UX UNDER COWL ASSY. - LEFT (1UX - BLUE) (FOR L99 - WHITE/BLUE)
    UNDER COWL ASSY. - LEFT (1UX - BLUE) (FOR L99 - WHITE/BLUE)
  • 2-2
    94408-39F00-YHX UNDER COWL ASSY. - LEFT (YHX - BLACK) (FOR BP9 - YELLOW/BLACK)
    UNDER COWL ASSY. - LEFT (YHX - BLACK) (FOR BP9 - YELLOW/BLACK)
  • 2-3
    94408-39F00-Y7M UNDER COWL ASSY. - LEFT (Y7M - RED) (FOR FN9 - RED/SILVER)
    UNDER COWL ASSY. - LEFT (Y7M - RED) (FOR FN9 - RED/SILVER)
  • 3-1
    68185-39F00-0JW ...TAPE, UPPER - RIGHT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE, UPPER - RIGHT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 3-2
    68185-39F00-Y9H ...TAPE, UPPER - RIGHT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, UPPER - RIGHT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 3-3
    68185-39F00-YD8 ...TAPE, UPPER - RIGHT (YD8 - SILVER) (FOR FN9 - RED/SILVER)
    ...TAPE, UPPER - RIGHT (YD8 - SILVER) (FOR FN9 - RED/SILVER)
  • 4-1
    68195-39F00-0JW ...TAPE, UPPER - LEFT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE, UPPER - LEFT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 4-2
    68195-39F00-Y9H ...TAPE, UPPER - LEFT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, UPPER - LEFT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 4-3
    68195-39F00-YD8 ...TAPE, UPPER - LEFT (YD8 - SILVER) (FOR FN9 - RED/SILVER)
    ...TAPE, UPPER - LEFT (YD8 - SILVER) (FOR FN9 - RED/SILVER)
  • 5-1
    68185-39F10-FS9 ...TAPE, "GSXR" (RIGHT) (FS9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
    ...TAPE, "GSXR" (RIGHT) (FS9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
  • 5-2
    68185-39F10-FT1 ...TAPE, "GSXR" (RIGHT) (FT1 - SILVER/BLACK/SILVER/WHITE) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, "GSXR" (RIGHT) (FT1 - SILVER/BLACK/SILVER/WHITE) (FOR BP9 - YELLOW/BLACK)
  • 5-3
    68185-39F10-FT2 ...TAPE, "GSXR" (RIGHT) (FT2 - BLACK/RED/SILVER/WHITE) (FOR FN9 - RED/SILVER)
    ...TAPE, "GSXR" (RIGHT) (FT2 - BLACK/RED/SILVER/WHITE) (FOR FN9 - RED/SILVER)
  • 6-1
    68195-39F10-FS9 ...TAPE, "GSXR" (LEFT) (FS9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
    ...TAPE, "GSXR" (LEFT) (FS9 - WHITE/BLUE/ORANGE/SILVER/BLACK) (FOR L99 - WHITE/BLUE)
  • 6-2
    68195-39F10-FT1 ...TAPE, "GSXR" (LEFT) (FT1 - SILVER/BLACK/SILVER/WHITE) (FOR BP9 - YELLOW/BLACK)
    ...TAPE, "GSXR" (LEFT) (FT1 - SILVER/BLACK/SILVER/WHITE) (FOR BP9 - YELLOW/BLACK)
  • 6-3
    68195-39F10-FT2 ...TAPE, "GSXR" (LEFT) (FT2 - BLACK/RED/SILVER/WHITE) (FOR FN9 - RED/SILVER)
    ...TAPE, "GSXR" (LEFT) (FT2 - BLACK/RED/SILVER/WHITE) (FOR FN9 - RED/SILVER)
  • 7-1
    68180-39F00-M18 ...TAPE SET, CENTER - RIGHT (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET, CENTER - RIGHT (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
  • 7-2
    68180-39F00-BP9 ...TAPE SET, CENTER - RIGHT (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET, CENTER - RIGHT (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 7-3
    68180-39F00-FN9 ...TAPE SET, CENTER - RIGHT (FN9 - RED/SILVER) (FOR FN9 - RED/SILVER)
    ...TAPE SET, CENTER - RIGHT (FN9 - RED/SILVER) (FOR FN9 - RED/SILVER)
  • 8-1
    68190-39F00-M18 ...TAPE SET, CENTER - LEFT (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET, CENTER - LEFT (M18 - WHITE/BLUE) (FOR L99 - WHITE/BLUE)
  • 8-2
    68190-39F00-BP9 ...TAPE SET, CENTER - LEFT (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET, CENTER - LEFT (BP9 - YELLOW/BLACK) (FOR BP9 - YELLOW/BLACK)
  • 8-3
    68190-39F00-FN9 ...TAPE SET, CENTER - LEFT (FN9 - RED/SILVER) (FOR FN9 - RED/SILVER)
    ...TAPE SET, CENTER - LEFT (FN9 - RED/SILVER) (FOR FN9 - RED/SILVER)
  • 9-1
    68220-39F00-0JW ...EMBLEM, "SUZUKI" (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...EMBLEM, "SUZUKI" (RIGHT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 9-2
    68220-39F00-YD8 ...EMBLEM, "SUZUKI" (RIGHT) (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)
    ...EMBLEM, "SUZUKI" (RIGHT) (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)
  • 10-1
    68230-39F00-0JW ...EMBLEM, "SUZUKI" (LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...EMBLEM, "SUZUKI" (LEFT) (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 10-2
    68230-39F00-YD8 ...EMBLEM, "SUZUKI" (LEFT) (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)
    ...EMBLEM, "SUZUKI" (LEFT) (YD8 - SILVER) (FOR BP9 - YELLOW/BLACK, FN9 - RED/SILVER)
  • 11-1
    68180-39F10-0JW ...TAPE SET, LOWER - RIGHT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET, LOWER - RIGHT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 11-2
    68180-39F10-Y9H ...TAPE SET, LOWER - RIGHT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET, LOWER - RIGHT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 11-3
    68180-39F10-Y7L ...TAPE SET, LOWER - RIGHT (Y7L - BLACK) (FOR FN9 - RED/SILVER)
    ...TAPE SET, LOWER - RIGHT (Y7L - BLACK) (FOR FN9 - RED/SILVER)
  • 12-1
    68190-39F10-0JW ...TAPE SET, LOWER - LEFT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
    ...TAPE SET, LOWER - LEFT (0JW - WHITE) (FOR L99 - WHITE/BLUE)
  • 12-2
    68190-39F10-Y9H ...TAPE SET, LOWER - LEFT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
    ...TAPE SET, LOWER - LEFT (Y9H - YELLOW) (FOR BP9 - YELLOW/BLACK)
  • 12-3
    68190-39F10-Y7L ...TAPE SET, LOWER - LEFT (Y7L - BLACK) (FOR FN9 - RED/SILVER)
    ...TAPE SET, LOWER - LEFT (Y7L - BLACK) (FOR FN9 - RED/SILVER)
  • 13
    94461-35F00 UNDER COWL, INNER - RIGHT
    UNDER COWL, INNER - RIGHT
  • 14
    94462-35F00 UNDER COWL, INNER - LEFT
    UNDER COWL, INNER - LEFT
  • 15
    94490-35F00 UNDER COWL, CENTER
    UNDER COWL, CENTER
