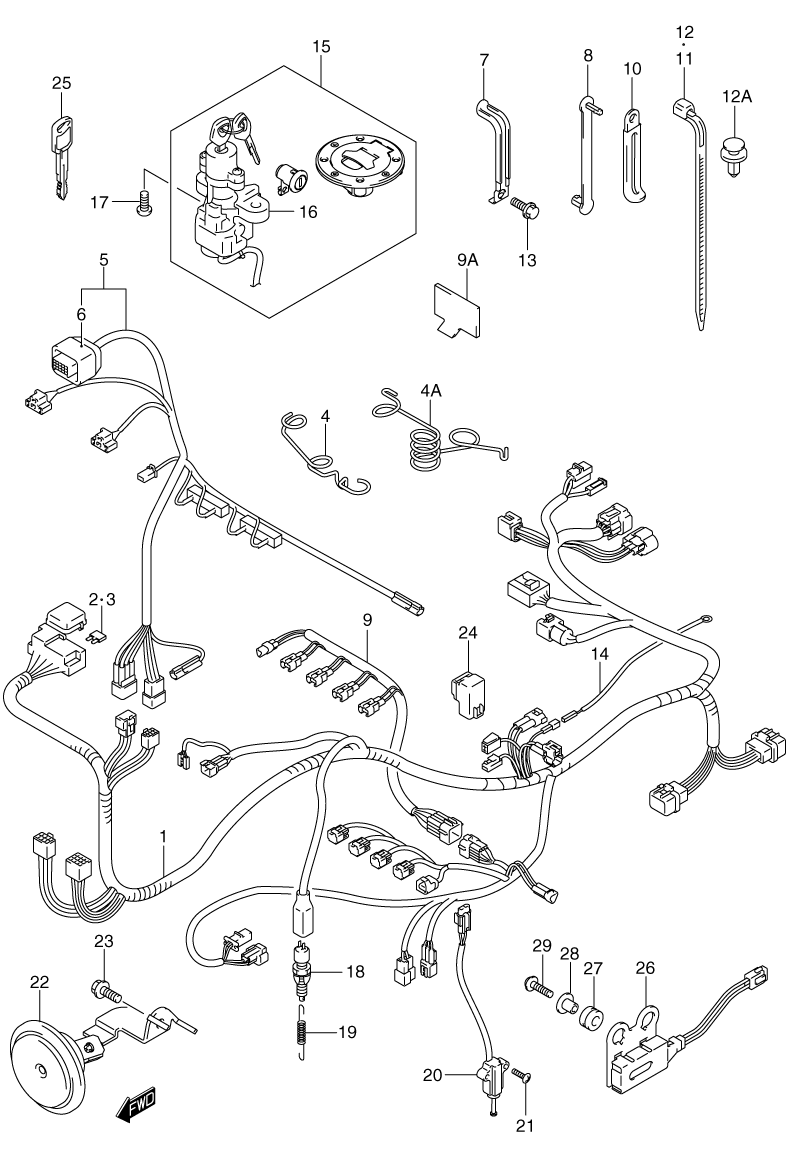

ELECTRICAL - WIRING HARNESS для Suzuki GSX-R750 K1 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1-1
    36610-35F20 HARNESS, WIRING NO.1 (UP TO FRAME NO. 12104097)
    HARNESS, WIRING NO.1 (UP TO FRAME NO. 12104097)
  • 1-2
    36610-35F30 HARNESS, WIRING NO.1 (FRAME NO. 12104098 AND UP)
    HARNESS, WIRING NO.1 (FRAME NO. 12104098 AND UP)
  • 2
    09481-10501 ...FUSE (10A)
    ...FUSE (10A)
  • 3
    09481-15501 ...FUSE (15A)
    ...FUSE (15A)
  • 4
    36619-35F00 GUIDE, WIRING HARNESS (UP TO FRAME NO. 12104097)
    GUIDE, WIRING HARNESS (UP TO FRAME NO. 12104097)
  • 4A
    36619-40F00 GUIDE, WIRING HARNESS (FRAME NO. 12104098 AND UP)
    GUIDE, WIRING HARNESS (FRAME NO. 12104098 AND UP)
  • 5-1
    36620-35F20 HARNESS, WIRING NO.2 (UP TO FRAME NO. 12104097)
    HARNESS, WIRING NO.2 (UP TO FRAME NO. 12104097)
  • 5-2
    36620-35F30 HARNESS, WIRING NO.2 (FRAME NO. 12104098 AND UP)
    HARNESS, WIRING NO.2 (FRAME NO. 12104098 AND UP)
  • 6
    36618-35F00 ...COVER, SPEEDOMETER
    ...COVER, SPEEDOMETER
  • 7
    36651-35F00 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 8
    36651-48E00 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 9-1
    36859-35F00 WIRE, INJECTOR LEAD (UP TO FRAME NO. 12104097)
    WIRE, INJECTOR LEAD (UP TO FRAME NO. 12104097)
  • 9-2
    36859-35F20 WIRE, INJECTOR LEAD (FRAME NO. 12104098 AND UP)
    WIRE, INJECTOR LEAD (FRAME NO. 12104098 AND UP)
  • 9A
    36920-35F00 PROTECTOR, WIRING HARNESS
    PROTECTOR, WIRING HARNESS
  • 10-1
    09404-06432 CLAMP (L:80)
    CLAMP (L:80)
  • 10-2
    09404-08205 CLAMP (L:62)
    CLAMP (L:62)
  • 10-3
    09404-08207 CLAMP (L:97)
    CLAMP (L:97)
  • 11-1
    09407-14403 CLAMP (L:125)
    CLAMP (L:125)
  • 11-2
    09407-18402 CLAMP (L:165)
    CLAMP (L:165)
  • 11-3
    09407-25401 CLAMP (L:235)
    CLAMP (L:235)
  • 12-1
    09407-11402 CLAMP (L:90)
    CLAMP (L:90)
  • 12-2
    09407-17401 CLAMP (L:150)
    CLAMP (L:150)
  • 12A
    09409-08327 CLIP
    CLIP
  • 13
    01550-05123 BOLT, WIRING HARNESS
    BOLT, WIRING HARNESS
  • 14
    36851-35F00 WIRE, OIL PRESSURE LEAD
    WIRE, OIL PRESSURE LEAD
  • 15-1
    37000-35840 LOCK SET (EXCEPT CALIF.)
    LOCK SET (EXCEPT CALIF.)
  • 15-2
    37000-35850 LOCK SET (CALIFORNIA ONLY)
    LOCK SET (CALIFORNIA ONLY)
  • 16
    37100-35F20 ...LOCK ASSY., STEERING
    ...LOCK ASSY., STEERING
  • 17
    09139-08016 SCREW
    SCREW
  • 18
    37740-24A00 SWITCH ASSY., STOP LAMP
    SWITCH ASSY., STOP LAMP
  • 19
    09443-06042 SPRING
    SPRING
  • 20
    37840-35F00 SWITCH ASSY., SIDE STAND
    SWITCH ASSY., SIDE STAND
  • 21
    01550-06203 BOLT
    BOLT
  • 22
    38500-35F10 HORN ASSY.
    HORN ASSY.
  • 23
    01550-06253 BOLT
    BOLT
  • 24
    38740-24X50 RELAY ASSY., FUEL PUMP
    RELAY ASSY., FUEL PUMP
  • 25
    37146-33E00 KEY, BLANK (OPT)
    KEY, BLANK (OPT)
  • 26
    36510-35F00 RESISTOR ASSY.
    RESISTOR ASSY.
  • 27
    09320-10015 ...CUSHION
    ...CUSHION
  • 28
    09180-06319 ...SPACER (6.5X10X11.6)
    ...SPACER (6.5X10X11.6)
  • 29
    09136-06126 BOLT, RESISTOR (6X25)
    BOLT, RESISTOR (6X25)
