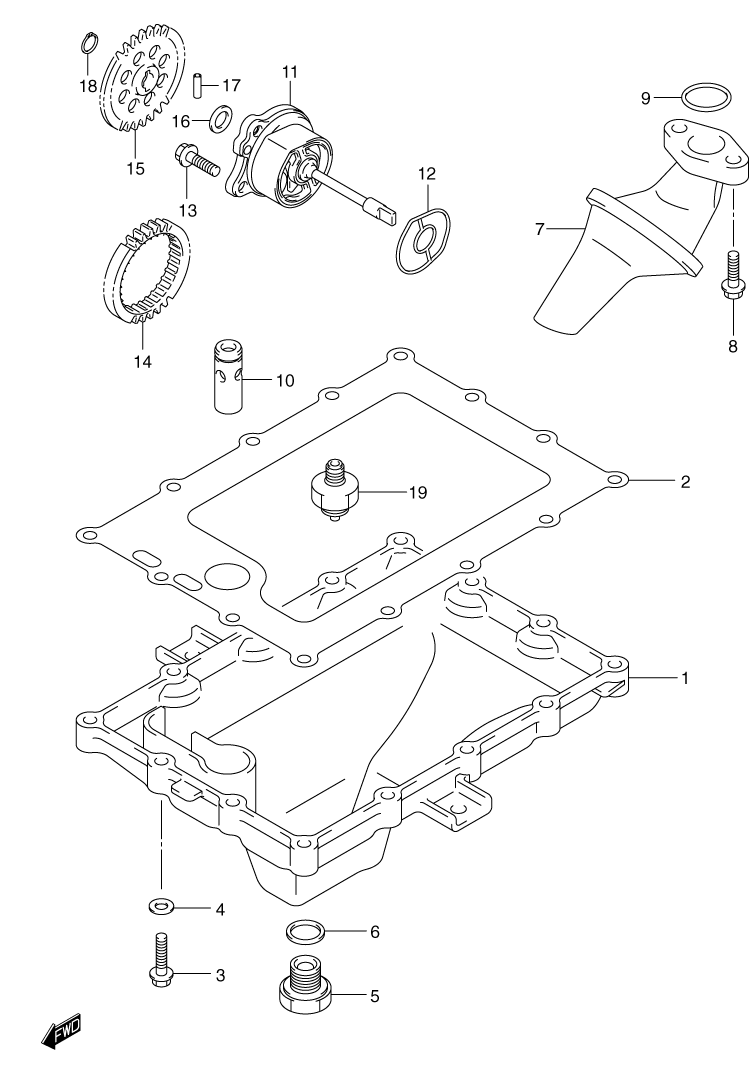

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-R750 K1 - 2001 года выпуска
-
№АртикулНазвание
-
111511-35F00 PAN, OILPAN, OIL
-
211489-35F00 GASKET, OIL PANGASKET, OIL PAN
-
309103-06221 BOLT (6X25)BOLT (6X25)
-
409168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
509247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
609168-14002 GASKETGASKET
-
716520-35F00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
801550-06203 BOLTBOLT
-
909280-19008 O-RING (D:2.62,ID:20.3)O-RING (D:2.62,ID:20.3)
-
1016440-24F00 VALVE ASSY., OIL RELIEFVALVE ASSY., OIL RELIEF
-
1116400-35F00 PUMP ASSY., ENGINE OILPUMP ASSY., ENGINE OIL
-
1216491-35F00 O-RINGO-RING
-
1301547-06203 BOLTBOLT
-
1416321-35F00 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
1516331-35F00 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
1609181-10158 WASHERWASHER
-
1709261-04009 PINPIN
-
1808331-31106 CIRCLIPCIRCLIP
-
1937820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
