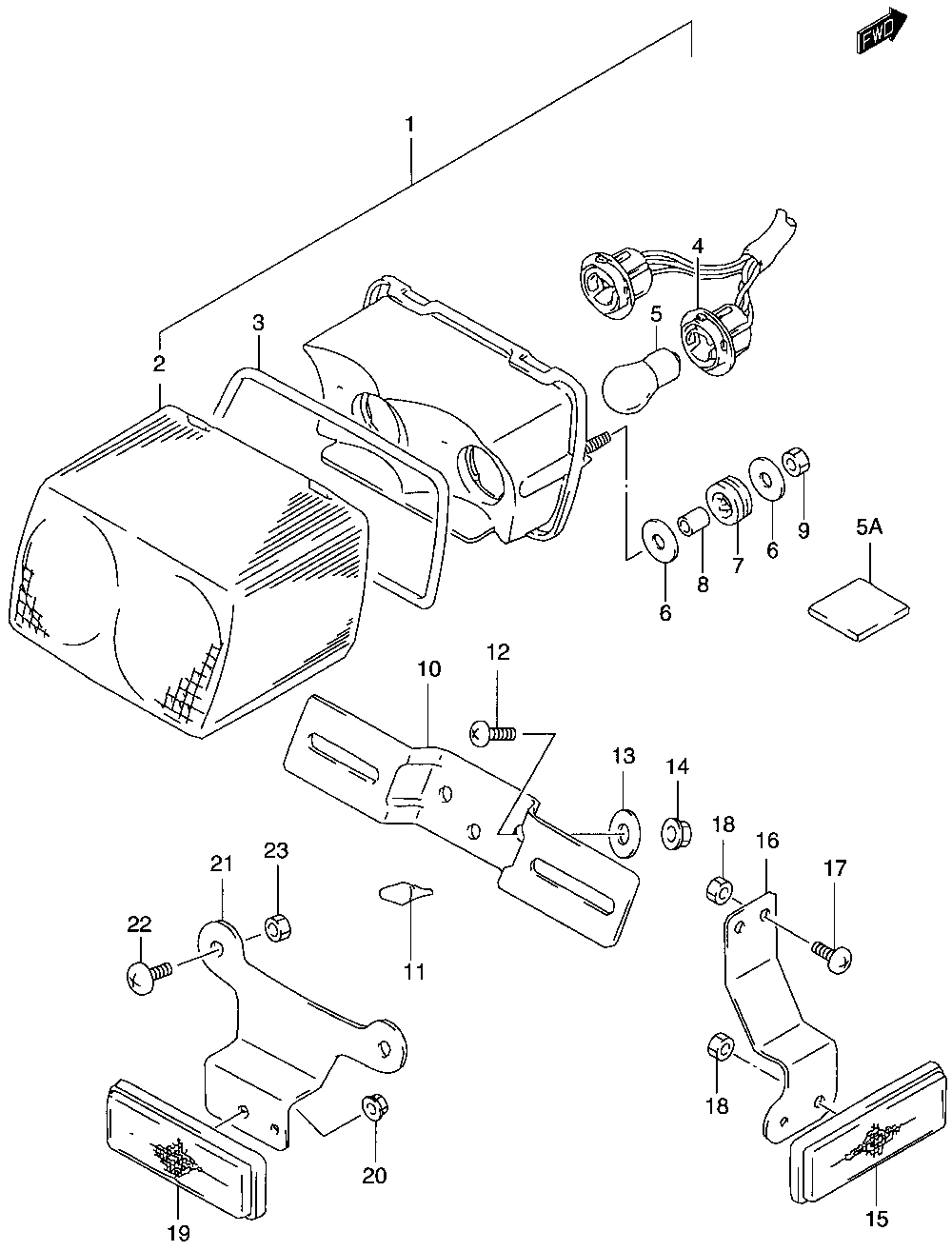

TAILLIGHT ASSY. для Suzuki GS500E Y - 2000 года выпуска

№

Артикул

Название
1

35710-01D11 LAMP ASSY., COMBINATION (REAR)

LAMP ASSY., COMBINATION (REAR)
2

35712-01D10 ...LENS

...LENS
3

35713-01D00 ...GASKET, LENS

...GASKET, LENS
4

35718-12D00 ...SOCKET

...SOCKET
5

09471-12083 ...BULB (12V,21/5W)

...BULB (12V,21/5W)
5A

35733-10D00 CUSHION

CUSHION
6

09160-06077 WASHER (6.5X20X1.2)

WASHER (6.5X20X1.2)
7

09320-09009 CUSHION

CUSHION
8

09180-06262 SPACER (6.5X9X8.5)

SPACER (6.5X9X8.5)
9

08310-00063 NUT

NUT
10

35927-01D10 BRACKET, LICENSE PLATE

BRACKET, LICENSE PLATE
11

09321-06028 CUSHION

CUSHION
12

02142-06163 SCREW

SCREW
13

09160-06077 WASHER (6.5X20X1.2)

WASHER (6.5X20X1.2)
14

08310-00063 NUT

NUT
15

35970-24D60 REFLEX REFLECTOR, SIDE (REAR)

REFLEX REFLECTOR, SIDE (REAR)
16

35977-01D11 BRACKET, SIDE (REAR)

BRACKET, SIDE (REAR)
17

02142-05123 SCREW

SCREW
18

08310-00053 NUT

NUT
19

35970-24D60 REFLEX REFLECTOR ASSY. (REAR)

REFLEX REFLECTOR ASSY. (REAR)
20

08310-00053 NUT

NUT
21

35974-01D00 BRACKET, REFLEX REFLECTOR (REAR)

BRACKET, REFLEX REFLECTOR (REAR)
22

02142-06123 SCREW

SCREW
23

08310-00063 NUT

NUT
