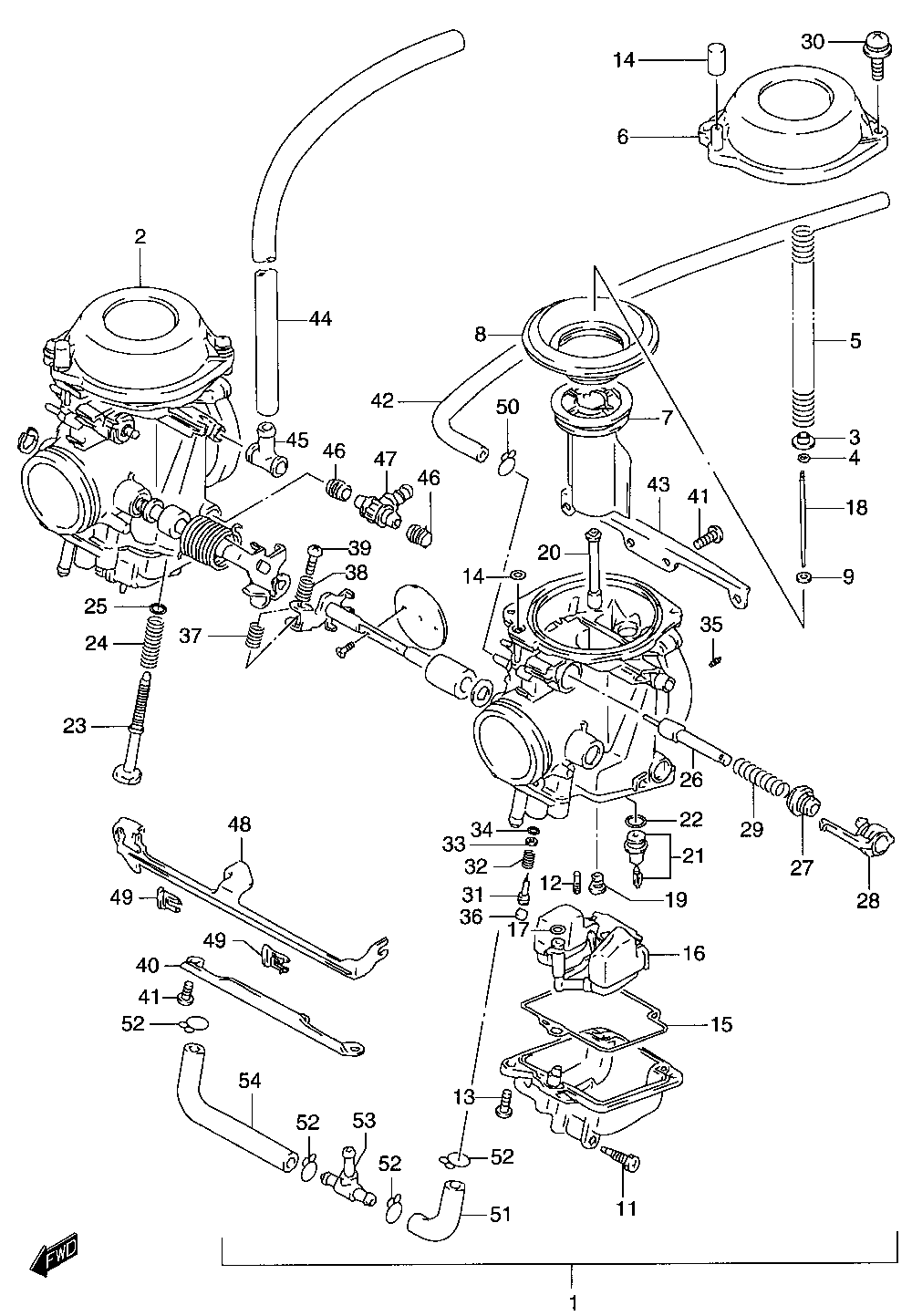

CARBURETOR ASSY. для Suzuki GS500E Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-1
    13201-01D01 CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.) (UP TO ENGINE NO. M501-170811)
    CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.) (UP TO ENGINE NO. M501-170811)
  • 1-2
    13201-01D02 CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.) (ENGINE NO. M501-170812 AND UP)
    CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.) (ENGINE NO. M501-170812 AND UP)
  • 1-3
    13201-01DA0 CARBURETOR ASSY. (LEFT) (CALIF. ONLY) (UP TO ENGINE NO. M501-170811)
    CARBURETOR ASSY. (LEFT) (CALIF. ONLY) (UP TO ENGINE NO. M501-170811)
  • 1-4
    13201-01DA1 CARBURETOR ASSY. (LEFT) (CALIF. ONLY) (ENGINE NO. M501-170812 AND UP)
    CARBURETOR ASSY. (LEFT) (CALIF. ONLY) (ENGINE NO. M501-170812 AND UP)
  • 2-1
    13202-01D01 CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.) (UP TO ENGINE NO. M501-170811)
    CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.) (UP TO ENGINE NO. M501-170811)
  • 2-2
    13202-01D02 CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.) (ENGINE NO. M501-170812 AND UP )
    CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.) (ENGINE NO. M501-170812 AND UP )
  • 2-3
    13202-01DA0 CARBURETOR ASSY. (RIGHT) (CALIF. ONLY) ( UP TO ENGINE NO. M501-170811)
    CARBURETOR ASSY. (RIGHT) (CALIF. ONLY) ( UP TO ENGINE NO. M501-170811)
  • 2-4
    13202-01DA1 CARBURETOR ASSY. (RIGHT) (CALIF. ONLY) ( ENGINE NO. M501-170812 AND UP)
    CARBURETOR ASSY. (RIGHT) (CALIF. ONLY) ( ENGINE NO. M501-170812 AND UP)
  • 3
    13382-42A00 ...WASHER
    ...WASHER
  • 4
    13394-40D20 ...E-RING
    ...E-RING
  • 5-1
    13417-42A00 ...SPRING (EXCEPT CALIF.)
    ...SPRING (EXCEPT CALIF.)
  • 5-2
    13417-06C00 ...SPRING (CALIF. ONLY)
    ...SPRING (CALIF. ONLY)
  • 6
    13502-01D00 ...COVER, DIAPHRAGM
    ...COVER, DIAPHRAGM
  • 7
    13501-01D00 ...VALVE, PISTON
    ...VALVE, PISTON
  • 8
    13507-17C01 ...DIAPHRAGM
    ...DIAPHRAGM
  • 9
    13387-47010 ...RING
    ...RING
  • 10
    13508-17C00 ...CAP
    ...CAP
  • 11
    13247-13A00 ...SCREW, DRAIN
    ...SCREW, DRAIN
  • 12
    09492-35010 ...JET, PILOT (37.5)
    ...JET, PILOT (37.5)
  • 13
    02112-05127 ...SCREW
    ...SCREW
  • 14
    13509-17C00 ...O-RING
    ...O-RING
  • 15
    13258-44B00 ...GASKET, FLOAT CHAMBER
    ...GASKET, FLOAT CHAMBER
  • 16
    13240-01D00 ...FLOAT ASSY.
    ...FLOAT ASSY.
  • 17
    13374-46710 ...O-RING
    ...O-RING
  • 18
    09494-00871 ...JET, NEEDLE (O-3M)
    ...JET, NEEDLE (O-3M)
  • 19
    09491-24013 ...JET, MAIN (122.5)
    ...JET, MAIN (122.5)
  • 20
    13383-01D00 ...NEEDLE, JET (5DH8-1)
    ...NEEDLE, JET (5DH8-1)
  • 21-2
    13370-02D00 ...VALVE ASSY., NEEDLE
    ...VALVE ASSY., NEEDLE
  • 22
    13374-44080 ...O-RING
    ...O-RING
  • 23
    13267-14D10 ...ADJUSTER (RIGHT)
    ...ADJUSTER (RIGHT)
  • 24
    13375-14D10 ...SPRING (RIGHT)
    ...SPRING (RIGHT)
  • 25
    13427-38300 ...WASHER (RIGHT)
    ...WASHER (RIGHT)
  • 26
    13411-01D00 ...PLUNGER ASSY.
    ...PLUNGER ASSY.
  • 27
    13418-17C00 ...CAP
    ...CAP
  • 28
    13418-17C10 ...HOLDER, GUIDE
    ...HOLDER, GUIDE
  • 29
    13417-09110 ...SPRING
    ...SPRING
  • 30
    02112-75163 ...SCREW
    ...SCREW
  • 31-1
    13279-47070 ...SCREW, PILOT (2 1/4) (EXCEPT CALIF.)
    ...SCREW, PILOT (2 1/4) (EXCEPT CALIF.)
  • 31-2
    13279-47070 ...SCREW, PILOT (1 1/2) (CALIF. ONLY)
    ...SCREW, PILOT (1 1/2) (CALIF. ONLY)
  • 32
    13268-47070 ...SPRING
    ...SPRING
  • 33
    13291-29900 ...WASHER
    ...WASHER
  • 34
    13295-29900 ...O-RING
    ...O-RING
  • 35-1
    09493-26004 ...JET, AIR (1.3) (EXCEPT CALIF.)
    ...JET, AIR (1.3) (EXCEPT CALIF.)
  • 35-2
    09493-27002 ...JET, AIR (1.35) (CALIF. ONLY)
    ...JET, AIR (1.35) (CALIF. ONLY)
  • 36
    13281-05A00 ...PLUG
    ...PLUG
  • 37
    13268-96110 SPRING
    SPRING
  • 38
    13271-44B00 SPRING
    SPRING
  • 39
    13267-44B00 SCREW
    SCREW
  • 40
    13628-01D00 PLATE
    PLATE
  • 41
    02112-05127 SCREW
    SCREW
  • 42
    13684-01D10 HOSE (5X9X350)
    HOSE (5X9X350)
  • 43
    13628-01D10 PLATE
    PLATE
  • 44
    09354-70113-600 HOSE ASSY. (7X11X600) (L:600R400)
    HOSE ASSY. (7X11X600) (L:600R400)
  • 45
    13684-20C10 HOSE
    HOSE
  • 46
    13673-44B00 SEAL
    SEAL
  • 47
    13685-44B00 NIPPLE
    NIPPLE
  • 48
    13413-01D00 LEVER
    LEVER
  • 49
    13439-17C00 HOLDER
    HOLDER
  • 50
    09401-08410 CLIP
    CLIP
  • 51
    13684-48B10 HOSE (CALIF. ONLY)
    HOSE (CALIF. ONLY)
  • 52
    09401-10410 CLIP (CALIF. ONLY)
    CLIP (CALIF. ONLY)
  • 53
    13685-48B00 NIPPLE (CALIF. ONLY)
    NIPPLE (CALIF. ONLY)
  • 54
    13684-48B10 HOSE (CALIF. ONLY)
    HOSE (CALIF. ONLY)
