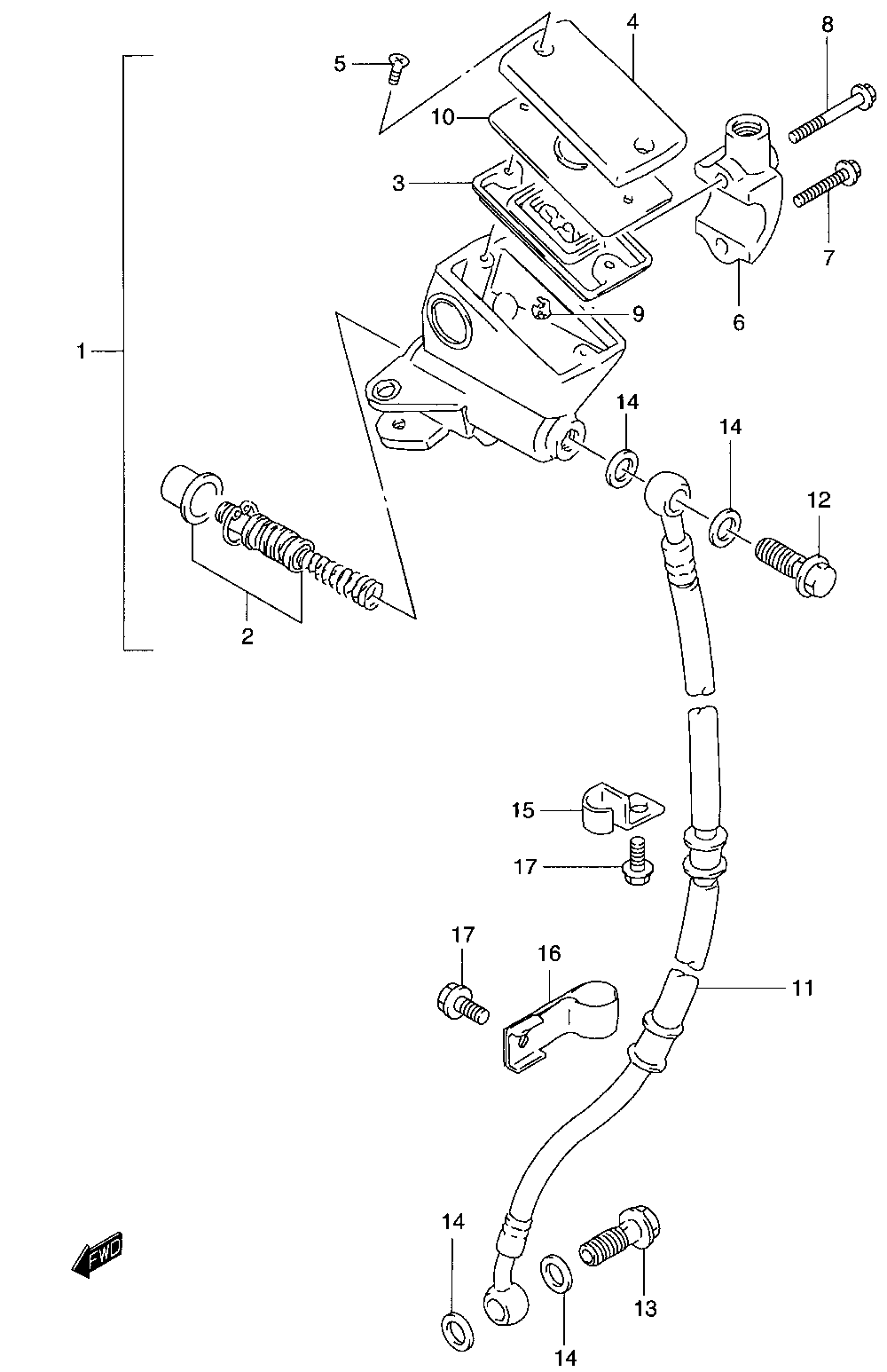

BRAKE - FRONT MASTER CYLINDER для Suzuki GS500E Y - 2000 года выпуска
-
№АртикулНазвание
-
159600-45C10 MASTER CYLINDER ASSY., FRONTMASTER CYLINDER ASSY., FRONT
-
259600-04810 ...PISTON/CUP SET...PISTON/CUP SET
-
359667-49460 ...DIAPHRAGM...DIAPHRAGM
-
459669-41C00 ...CAP...CAP
-
569689-49300 ...SCREW...SCREW
-
659671-44300 ...HOLDER...HOLDER
-
759675-19C00 ...BOLT...BOLT
-
859675-19C10 ...BOLT (UPPER)...BOLT (UPPER)
-
959664-48B00 ...PROTECTOR...PROTECTOR
-
1059668-41C00 ...PLATE...PLATE
-
1159480-01D20 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
1209360-10039 BOLT (10X1.00X22)BOLT (10X1.00X22)
-
1309360-10040 BOLT, LOWER (10X1.25X22)BOLT, LOWER (10X1.25X22)
-
1409161-10009 WASHERWASHER
-
1559268-01D01 CLAMP, HOSECLAMP, HOSE
-
1659268-01D10 CLAMP, HOSECLAMP, HOSE
-
1701550-06123 BOLTBOLT
