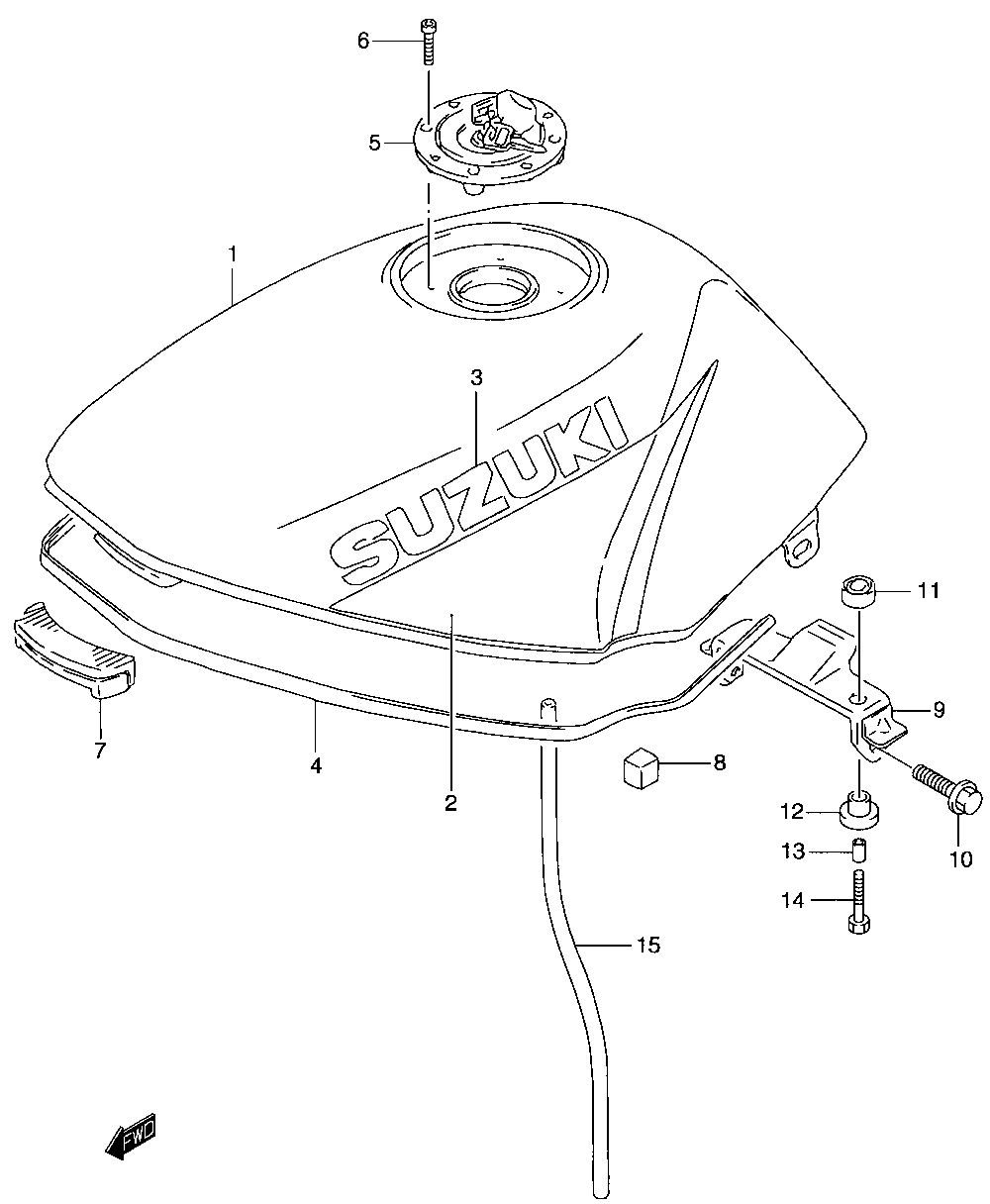

FUEL TANK для Suzuki GS500E Y - 2000 года выпуска

№

Артикул

Название
1-1

44100-01DF0-33J TANK ASSY., FUEL (BLACK) (EXCEPT CALIF.)

TANK ASSY., FUEL (BLACK) (EXCEPT CALIF.)
1-2

44100-01DH0-33J TANK ASSY., FUEL (BLACK) (CALIF. ONLY)

TANK ASSY., FUEL (BLACK) (CALIF. ONLY)
2

68110-01D60-J6D ...TAPE SET, FUEL TANK (PEARL NOVELTY BLACK)

...TAPE SET, FUEL TANK (PEARL NOVELTY BLACK)
3

68111-12C00-13L ...EMBLEM (SILVER/PEARL NOVELTY BLACK)

...EMBLEM (SILVER/PEARL NOVELTY BLACK)
4

68241-04X50-00B ...MOLDING

...MOLDING
5-1

44201-01832 CAP SET, FUEL (EXCEPT CALIF.)

CAP SET, FUEL (EXCEPT CALIF.)
5-2

44201-01842 CAP SET, FUEL (CALIF. ONLY)

CAP SET, FUEL (CALIF. ONLY)
6

09106-05017 BOLT

BOLT
7

44511-34A00 CUSHION (FRONT)

CUSHION (FRONT)
8

44545-48B10 CUSHION, SIDE

CUSHION, SIDE
9

44550-01D01 BRACKET (REAR)

BRACKET (REAR)
10

01550-08403 BOLT, BRACKET

BOLT, BRACKET
11

09320-14017 CUSHION (REAR/UPPER)

CUSHION (REAR/UPPER)
12

09320-10038 CUSHION (REAR/LOWER)

CUSHION (REAR/LOWER)
13

09180-06271 SPACER

SPACER
14

09116-06172 BOLT

BOLT
15

44423-01D00 HOSE, WATER DRAIN

HOSE, WATER DRAIN
