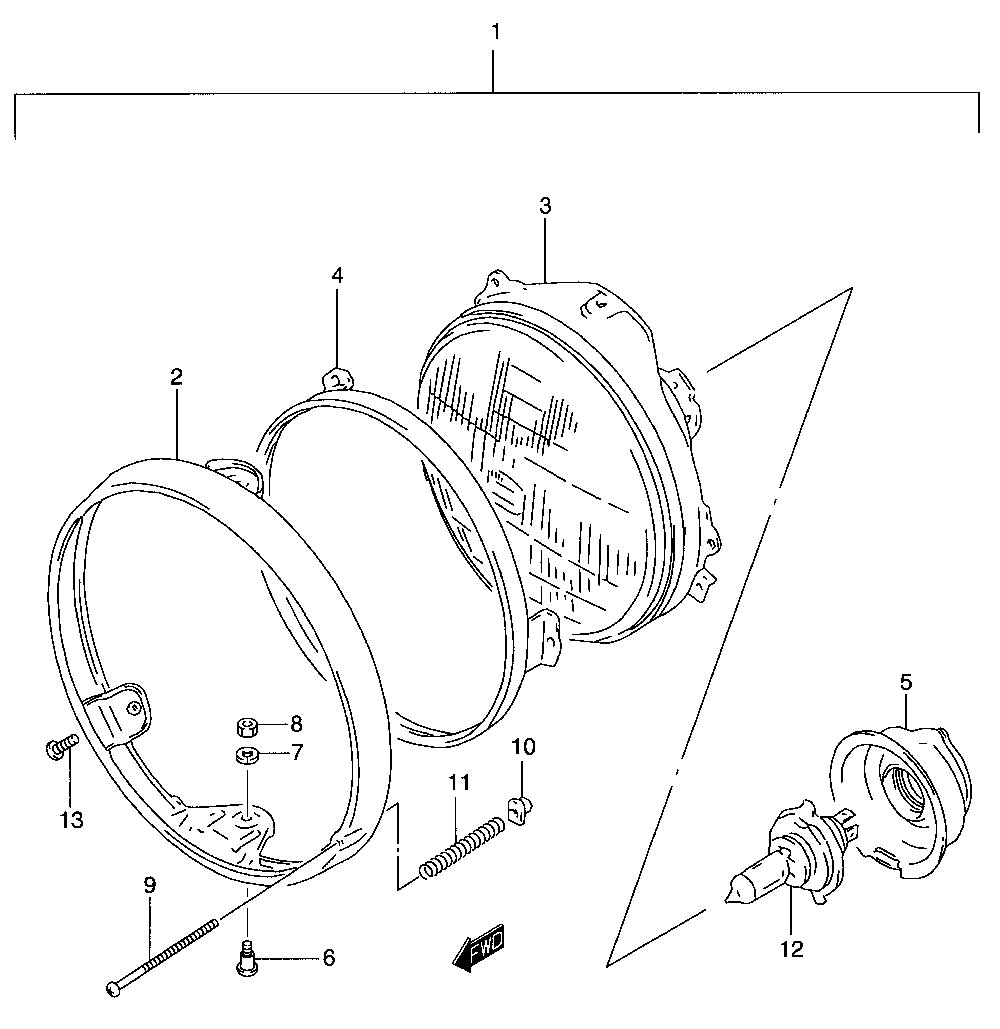

HEADLAMP для Suzuki GS500E Y - 2000 года выпуска
-
№АртикулНазвание
-
135100-10D70-999 HEADLAMP ASSY.HEADLAMP ASSY.
-
235111-01D20 ...RIM...RIM
-
335121-10D30 ...LAMP UNIT...LAMP UNIT
-
435127-10D20 ...RING...RING
-
535173-20A01 ...COVER, SOCKET...COVER, SOCKET
-
635181-15611 ...SCREW...SCREW
-
708321-01057 ...LOCK WASHER...LOCK WASHER
-
808310-00043 ...NUT...NUT
-
935151-45900 ...SCREW, ADJUSTING...SCREW, ADJUSTING
-
1035152-15611 ...NUT...NUT
-
1135154-31900 ...SPRING...SPRING
-
1209471-12060 BULB (12V60/55W)BULB (12V60/55W)
-
13-209126-05003 SCREWSCREW
