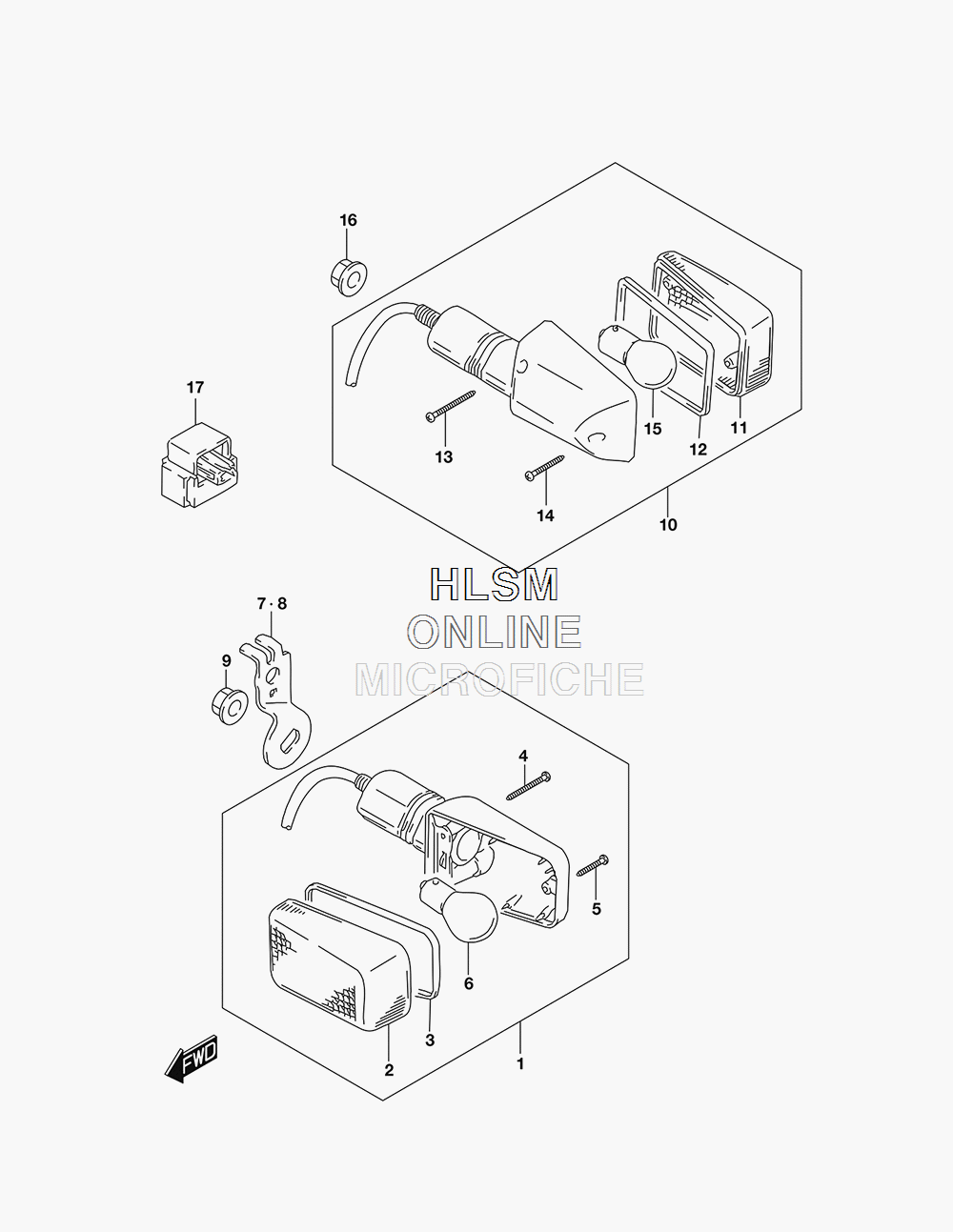

TURNSIGNAL ASSY. для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
135601-29E30 LAMP ASSY, FRONT TURNSIGNALLAMP ASSY, FRONT TURNSIGNAL
-
235612-17C20 ...LENS...LENS
-
335613-27A00 ...GASKET...GASKET
-
435623-27A00 ...SCREW, TAPPING (3X30)...SCREW, TAPPING (3X30)
-
535725-40511 ...SCREW, TAPPING (3X20)...SCREW, TAPPING (3X20)
-
609471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
735671-32E00 BRACKET, FRONT (RH)BRACKET, FRONT (RH)
-
835681-32E00 BRACKET, FRONT (LH)BRACKET, FRONT (LH)
-
908316-1010A NUTNUT
-
1035603-29E90 LAMP ASSY, REAR TURNSIGNALLAMP ASSY, REAR TURNSIGNAL
-
1135652-17C20 ...LENS...LENS
-
1235613-27A00 ...GASKET...GASKET
-
1335623-27A00 ...SCREW, TAPPING (3X30)...SCREW, TAPPING (3X30)
-
1435725-40511 ...SCREW, TAPPING (3X20)...SCREW, TAPPING (3X20)
-
1509471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1608316-1010A NUTNUT
-
1738610-26E00 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
