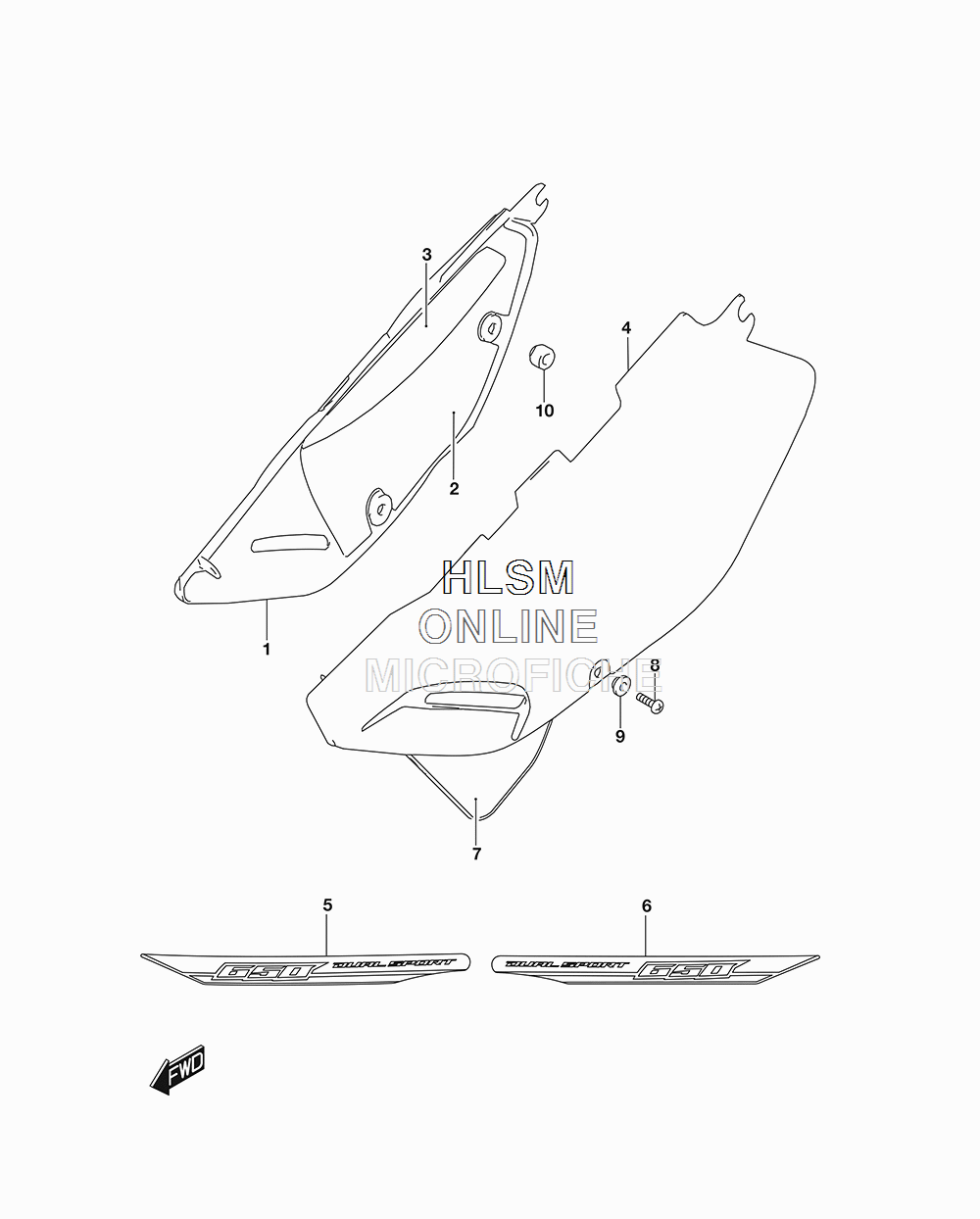

SIDE COVER для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
147111-32E10-30H COVER, FRAME (RH) (30H - WHITE)COVER, FRAME (RH) (30H - WHITE)
-
247166-32E00 SHIELD, COVER LOWER (RH)SHIELD, COVER LOWER (RH)
-
347167-32E00 SHIELD, COVER UPPER (RH)SHIELD, COVER UPPER (RH)
-
447211-32E10-30H COVER, FRAME (LH) (30H - WHITE)COVER, FRAME (LH) (30H - WHITE)
-
568135-32E70-BLQ TAPE, (RH) (BLQ - SILVER/GRAY/GRAY/WHITE FOR 30H - WHITE)TAPE, (RH) (BLQ - SILVER/GRAY/GRAY/WHITE FOR 30H - WHITE)
-
668145-32E70-BLQ TAPE, (LH) (BLQ - SILVER/GRAY/GRAY/WHITE FOR 30H - WHITE)TAPE, (LH) (BLQ - SILVER/GRAY/GRAY/WHITE FOR 30H - WHITE)
-
768146-32E00 TAPE, LOWER (LH)TAPE, LOWER (LH)
-
802142-0616A SCREWSCREW
-
909169-06031 WASHERWASHER
-
1009321-10019 CUSHIONCUSHION
