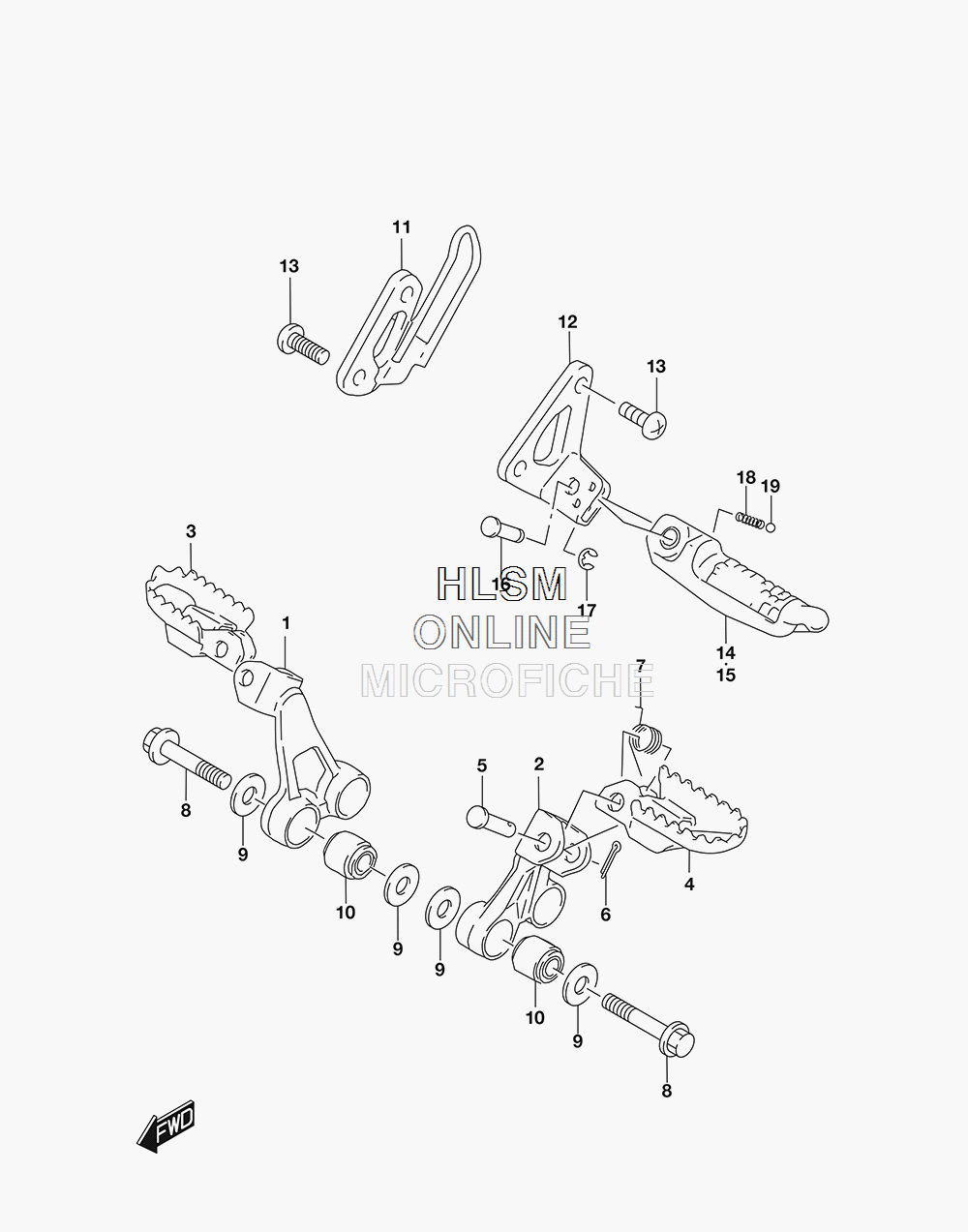

FOOTREST для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
143510-32E00 BRACKET, FR FOOTREST (RH)BRACKET, FR FOOTREST (RH)
-
243520-32E00 BRACKET, FR FOOTREST (LH)BRACKET, FR FOOTREST (LH)
-
343550-03B00-019 FOOTREST, FRONT (RH) (019 - BLACK)FOOTREST, FRONT (RH) (019 - BLACK)
-
443560-03B00-019 FOOTREST, FRONT (LH) (019 - BLACK)FOOTREST, FRONT (LH) (019 - BLACK)
-
509200-10013 PINPIN
-
604111-2020A COTTER PINCOTTER PIN
-
709448-15004 SPRINGSPRING
-
809103-10232 BOLT (10X50)BOLT (10X50)
-
909160-10124 WASHER (10.1X23X2.3)WASHER (10.1X23X2.3)
-
1009319-10033 BUSH (10.2X25X19)BUSH (10.2X25X19)
-
1143650-32E00-019 BRACKET, PILLION (RH) (019 - BLACK)BRACKET, PILLION (RH) (019 - BLACK)
-
1243750-32E00-019 BRACKET, PILLION (LH) (019 - BLACK)BRACKET, PILLION (LH) (019 - BLACK)
-
1309106-08161 BOLT (8X20)BOLT (8X20)
-
1443610-23E00 BAR, PILLION FOOTREST (RH)BAR, PILLION FOOTREST (RH)
-
1543710-23E00 BAR, PILLION FOOTREST (LH)BAR, PILLION FOOTREST (LH)
-
1609208-08011 PINPIN
-
1708332-1106B E RINGE RING
-
1809440-05005 SPRINGSPRING
-
1906111-07004 BALLBALL
