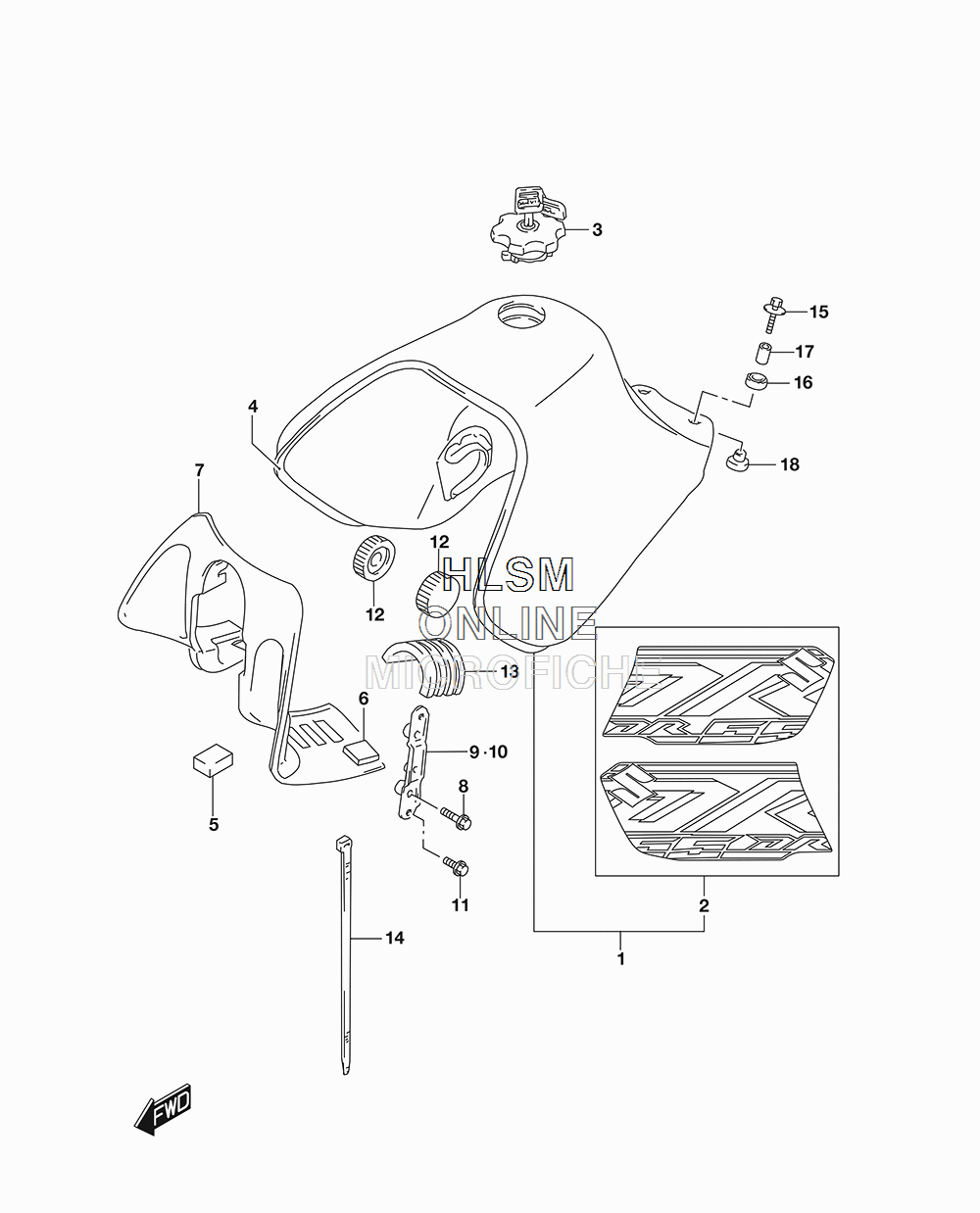

FUEL TANK (CALIF.) для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
149100-32E30-30H TANK ASSY, FUEL (30H - WHITE)TANK ASSY, FUEL (30H - WHITE)
-
268110-32EE0-BLU ...TAPE SET (BLU - SILVER/GRAY/GRAY/ORANGE/WHITE FOR 30H - WHITE)...TAPE SET (BLU - SILVER/GRAY/GRAY/ORANGE/WHITE FOR 30H - WHITE)
-
344200-05820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
468241-32E00 MOLDINGMOLDING
-
551827-01A00 CUSHIONCUSHION
-
644831-17B00 CUSHION, TANK COVER (CUT AS REQUIRED)CUSHION, TANK COVER (CUT AS REQUIRED)
-
744271-32E00 COVER, FRONTCOVER, FRONT
-
809116-06210 BOLT (6X12)BOLT (6X12)
-
944280-32E10 BRACKET, FRONT COVER (RH)BRACKET, FRONT COVER (RH)
-
1044290-32E10 BRACKET, FRONT COVER (LH)BRACKET, FRONT COVER (LH)
-
1101550-0625A BOLTBOLT
-
1244511-12D00 CUSHION, FRONTCUSHION, FRONT
-
1344541-13E00 CUSHION, UPPER REARCUSHION, UPPER REAR
-
1409407-25402 CLAMP (L:250)CLAMP (L:250)
-
1509116-06214 BOLT (6X30)BOLT (6X30)
-
1609320-14022 CUSHIONCUSHION
-
1709180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1809320-10020 CUSHIONCUSHION
