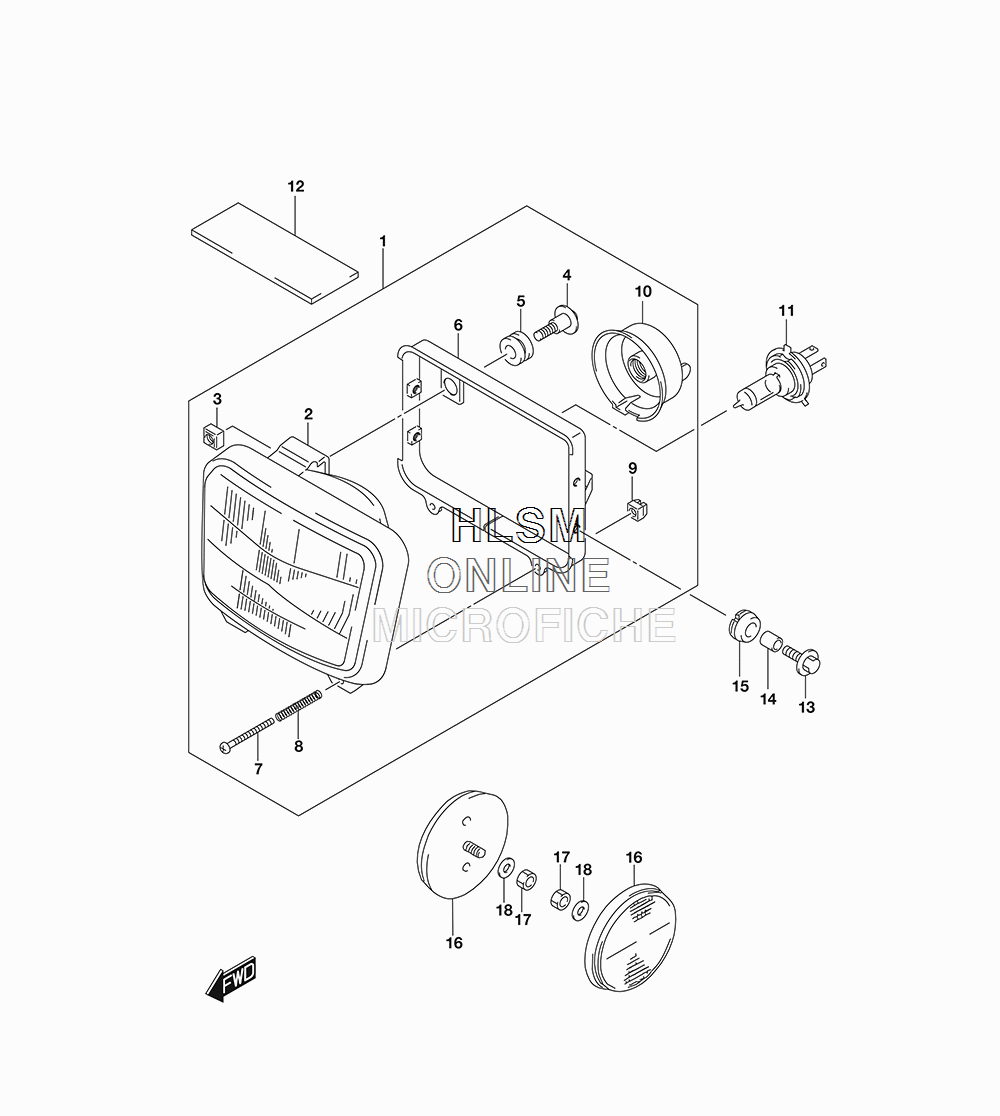

HEADLAMP для Suzuki DR650SEL8 - 2018 года выпуска
-
№АртикулНазвание
-
135100-12ED0-999 HEADLAMP ASSYHEADLAMP ASSY
-
235121-12EA0 ...UNIT ASSY...UNIT ASSY
-
335135-45900 ...NUT...NUT
-
435136-38A00 ...SCREW, MOUNTING...SCREW, MOUNTING
-
535139-45230 ...CUSHION...CUSHION
-
635141-12ED0 ...HOUSING...HOUSING
-
735151-12EA0 ...SCREW, ADJUSTING...SCREW, ADJUSTING
-
835154-12EA0 ...SPRING, ADJUSTING...SPRING, ADJUSTING
-
935135-12E20 ...NUT, ADJUSTING...NUT, ADJUSTING
-
1035173-01440 ...COVER, SOCKET...COVER, SOCKET
-
1109471-12185 BULB (12V,60/55W)BULB (12V,60/55W)
-
1236920-44A01 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
1309116-06167 BOLT (6X20)BOLT (6X20)
-
1409180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
1509320-09018 CUSHIONCUSHION
-
1635950-14A11 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1708313-1005B NUTNUT
-
1808321-0105B WASHERWASHER
