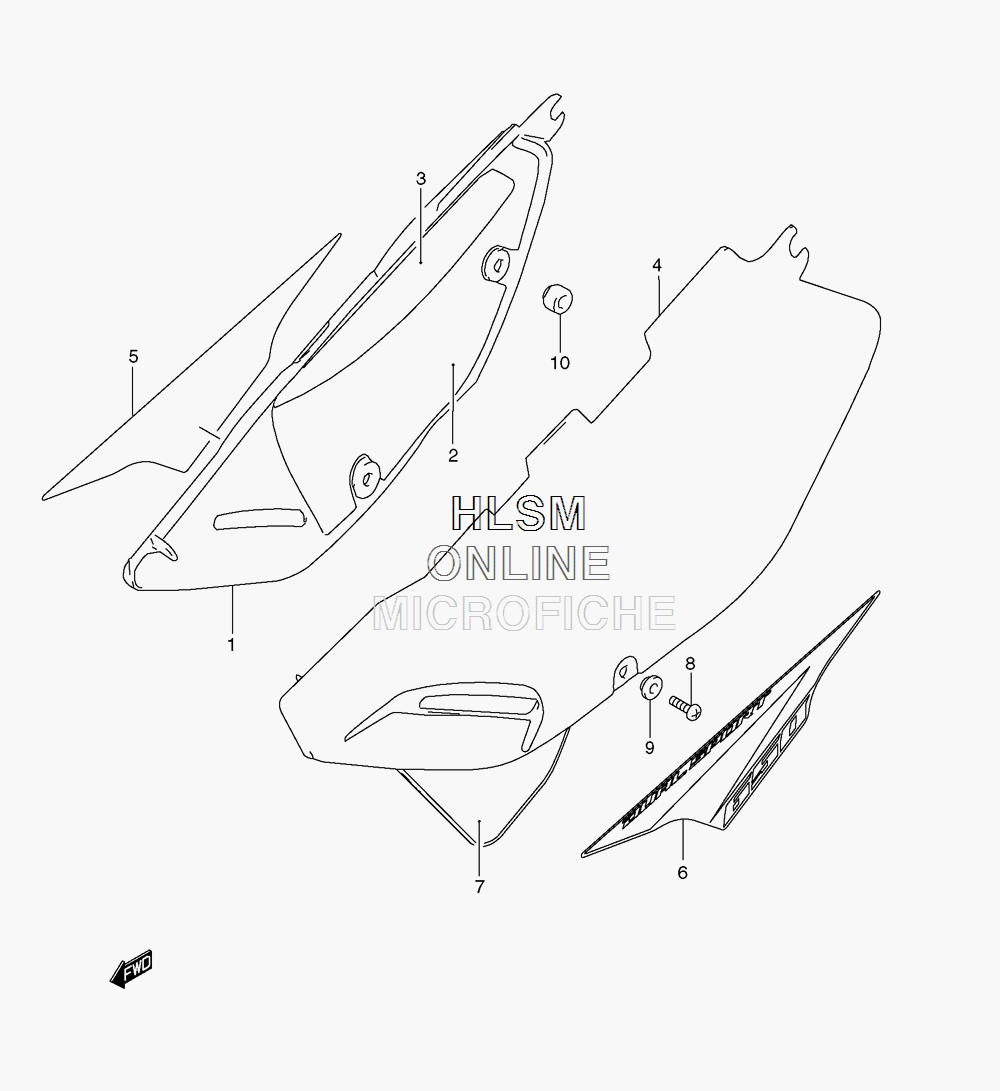

SIDE COVER для Suzuki DR650SE - 2012 года выпуска
-
№АртикулНазвание
-
1-147111-32E10-30H COVER, FRAME RIGHT (WHITE)COVER, FRAME RIGHT (WHITE)
-
1-247111-32E10-YUD COVER, FRAME RIGHT (GRAY)COVER, FRAME RIGHT (GRAY)
-
247166-32E00 SHIELD, COVER LOWER RIGHTSHIELD, COVER LOWER RIGHT
-
347167-32E00 SHIELD, COVER UPPER RIGHTSHIELD, COVER UPPER RIGHT
-
4-147211-32E10-30H COVER, FRAME LEFT (WHITE)COVER, FRAME LEFT (WHITE)
-
4-247211-32E10-YUD COVER, FRAME LEFT (GRAY)COVER, FRAME LEFT (GRAY)
-
5-168135-32E50-HLW TAPE, RIGHT (FOR 30H WHITE)TAPE, RIGHT (FOR 30H WHITE)
-
5-268135-32E50-JJZ TAPE, RIGHT (FOR YUD GRAY)TAPE, RIGHT (FOR YUD GRAY)
-
6-168145-32E50-HLW TAPE, LEFT (FOR 30H WHITE)TAPE, LEFT (FOR 30H WHITE)
-
6-268145-32E50-JJZ TAPE, LEFT (FOR YUD GRAY)TAPE, LEFT (FOR YUD GRAY)
-
768146-32E00 TAPE, NO.2, LEFTTAPE, NO.2, LEFT
-
802142-0616A SCREWSCREW
-
909169-06031 WASHERWASHER
-
1009321-10019 CUSHION, MUFFLERCUSHION, MUFFLER
