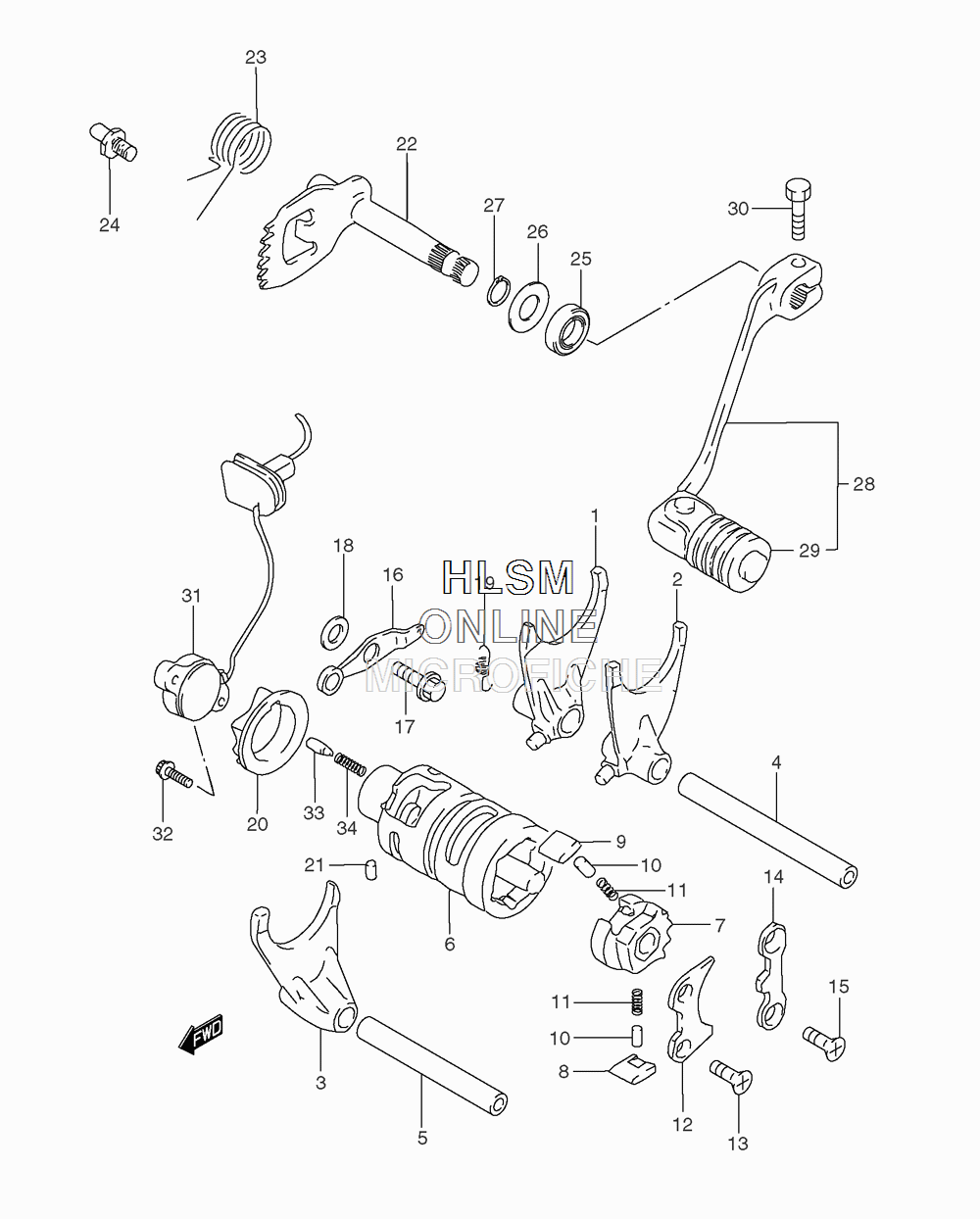

GEAR SHIFTING для Suzuki DR650SE - 2012 года выпуска`
-
№АртикулНазвание
-
125211-37401 FORK, GEAR SHIFTING NO.1FORK, GEAR SHIFTING NO.1
-
225221-37401 FORK, GEAR SHIFTING NO.2FORK, GEAR SHIFTING NO.2
-
325231-14A01 FORK, GEAR SHIFTING NO.3FORK, GEAR SHIFTING NO.3
-
425411-20A11 SHAFT, FORK NO.1SHAFT, FORK NO.1
-
525421-14A02 SHAFT, FORK NO.2SHAFT, FORK NO.2
-
625310-37400 CAM, GEAR SHIFTINGCAM, GEAR SHIFTING
-
725322-31310 GEAR, CAM DRIVENGEAR, CAM DRIVEN
-
825323-34201 PAWL, NO.1PAWL, NO.1
-
925324-34201 PAWL, NO.2PAWL, NO.2
-
1009261-05003 PIN (5X8)PIN (5X8)
-
1109440-04003 SPRINGSPRING
-
1225331-14A00 LIFTER, PAWLLIFTER, PAWL
-
1309126-06011 SCREW (6X12)SCREW (6X12)
-
1425341-40001 GUIDE, CAMGUIDE, CAM
-
1509126-06011 SCREW (6X12)SCREW (6X12)
-
1625350-37400 STOPPERSTOPPER
-
1709111-06054 BOLT (6X14.6)BOLT (6X14.6)
-
1808211-06141 WASHERWASHER
-
1909443-08020 SPRINGSPRING
-
2025381-37401 PLATE, STOPPERPLATE, STOPPER
-
2104221-04069 PINPIN
-
2225510-32E00 SHAFT, GEAR SHIFTINGSHAFT, GEAR SHIFTING
-
2309444-26023 SPRINGSPRING
-
2425671-01011 STOPPER, ARMSTOPPER, ARM
-
2509285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2608212-12201 WASHERWASHER
-
2708331-3112A CIRCLIPCIRCLIP
-
2825600-32E00 LEVER ASSY, GEAR SHIFTINGLEVER ASSY, GEAR SHIFTING
-
2925652-03D00 ...RUBBER...RUBBER
-
3001500-0620A BOLTBOLT
-
3137720-32E10 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
3207120-0516A SCREWSCREW
-
3309209-05011 PIN (5X15.5)PIN (5X15.5)
-
3409440-04010 SPRINGSPRING
