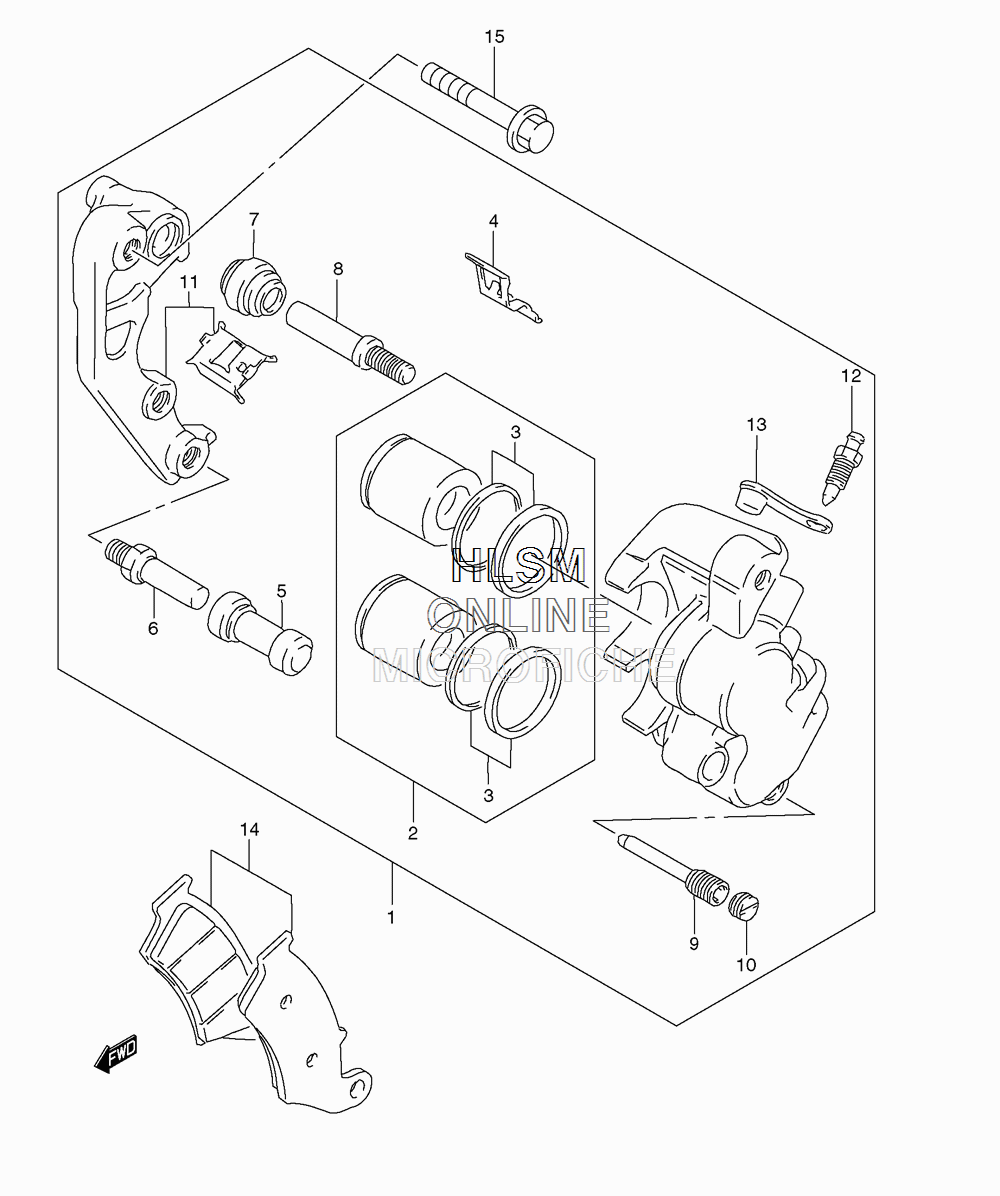

BRAKE - FRONT CALIPER для Suzuki DR650SE - 2012 года выпуска`
-
№АртикулНазвание
-
159300-13E01-999 CALIPER ASSY, FRONT LEFTCALIPER ASSY, FRONT LEFT
-
259300-27840 ...PISTON SET...PISTON SET
-
359300-13820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-13E00 ...SPRING...SPRING
-
559386-13A00 ...BOOT...BOOT
-
659382-14500 ...PIN...PIN
-
759303-14500 ...BOOT...BOOT
-
859305-27C00 ...PIN...PIN
-
959345-13E00 ...PIN...PIN
-
1059146-21E10 ...PLUG...PLUG
-
1159350-13E00 ...BRACKET...BRACKET
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-01A00 ...CAP...CAP
-
1459300-13830 PAD SETPAD SET
-
1509103-08338 BOLT (8X40)BOLT (8X40)
