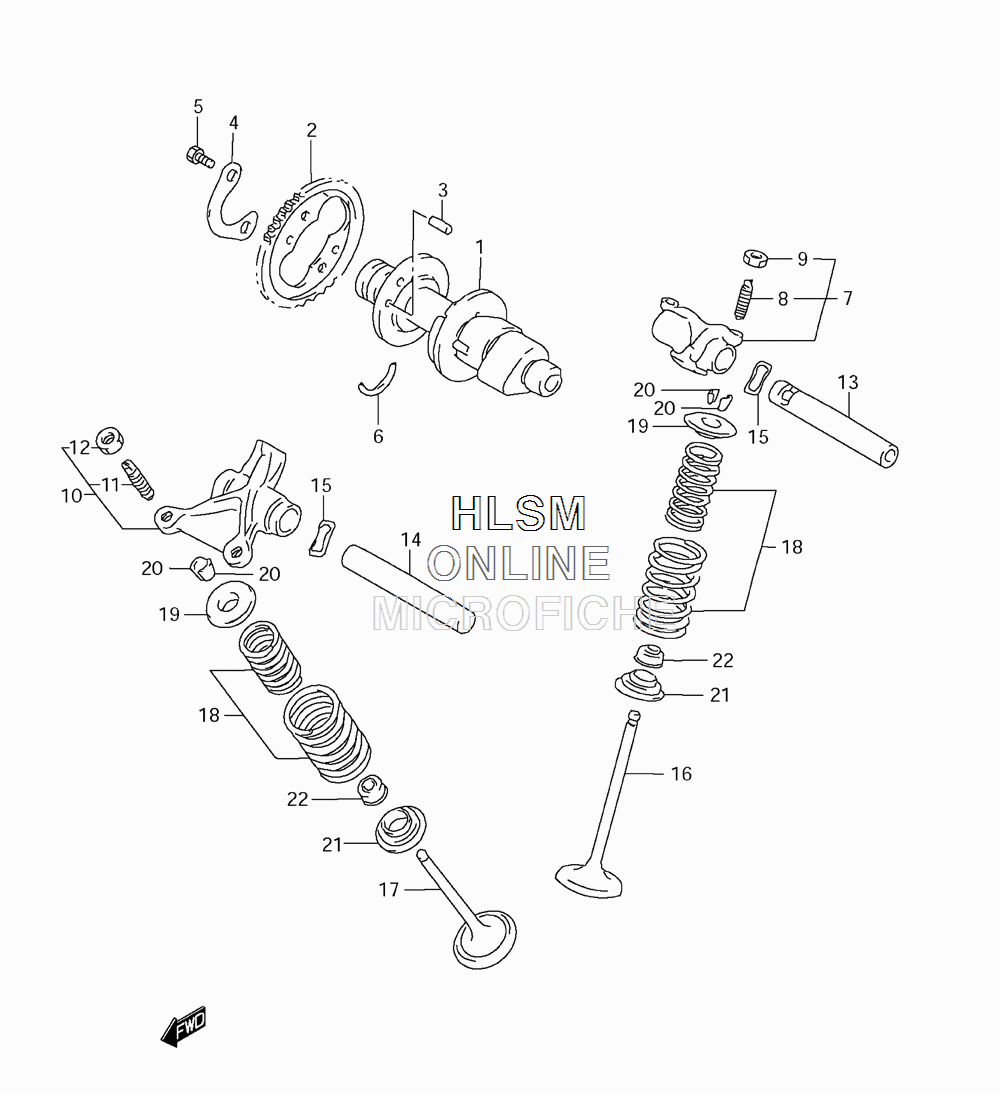

CAMSHAFT W/ VALVES для Suzuki DR650SE - 2012 года выпуска

№

Артикул

Название
1

12710-32E01 CAM SHAFT

CAM SHAFT
2

12741-32E00 SPROCKET

SPROCKET
3

09261-05005 PIN (5X8)

PIN (5X8)
4

12747-44B00 WASHER

WASHER
5

09100-06166 BOLT (6X10.5)

BOLT (6X10.5)
6

09390-22002 C RING

C RING
7

12840-32E00 ARM, VALVE ROCKER INTAKE

ARM, VALVE ROCKER INTAKE
8

12842-38A00 ...SCREW

...SCREW
9

12843-32400 ...NUT

...NUT
10

12850-32E00 ARM, VALVE ROCKER EXHAUST

ARM, VALVE ROCKER EXHAUST
11

12842-38A00 ...SCREW

...SCREW
12

12843-32400 ...NUT

...NUT
13

12861-14D50 SHAFT, ROCKER ARM IN

SHAFT, ROCKER ARM IN
14

12871-14D50 SHAFT, ROCKER ARM EX

SHAFT, ROCKER ARM EX
15

09164-12018 WASHER

WASHER
16

12911-19B00 VALVE, INTAKE

VALVE, INTAKE
17

12912-42A00 VALVE, EXHAUST

VALVE, EXHAUST
18

12920-32E00 SPRING SET, VALVE

SPRING SET, VALVE
19

12931-33201 RETAINER

RETAINER
20

12932-24400 COTTER, VALVE

COTTER, VALVE
21

12933-81400 SEAT, VALVE

SEAT, VALVE
22

09289-05015 OIL SEAL (5.5X11X8.2)

OIL SEAL (5.5X11X8.2)
