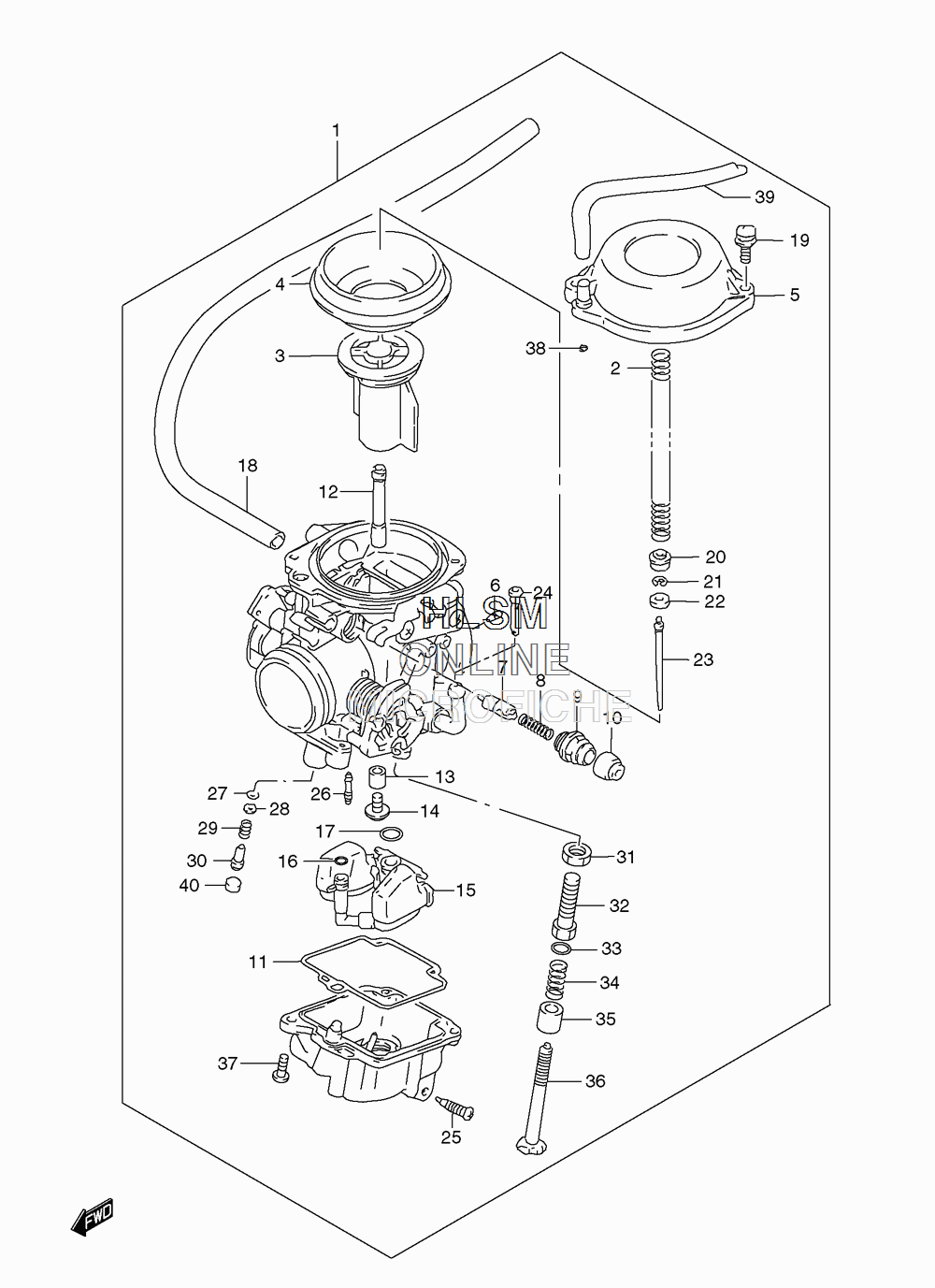

CARBURETOR ASSY. (CANDA ONLY) для Suzuki DR650SE - 2012 года выпуска

№

Артикул

Название
1

13200-32E12 CARBURETOR ASSY

CARBURETOR ASSY
2

13417-17D00 ...SPRING

...SPRING
3

13501-32E00 ...VALVE, PISTON

...VALVE, PISTON
4

13507-07D01 ...DIAPHRAGM

...DIAPHRAGM
5

13502-41C00 ...COVER, DIAPHRAGM

...COVER, DIAPHRAGM
6

09493-20007 ...JET, PILOT AIR (1.0)

...JET, PILOT AIR (1.0)
7

13411-12D00 ...PLUNGER ASSY

...PLUNGER ASSY
8

13417-22010 ...SPRING

...SPRING
9

13418-43410 ...HOLDER, GUIDE

...HOLDER, GUIDE
10

13681-04010 ...CAP

...CAP
11

13258-44B00 ...GASKET, FLOAT CHAMBER

...GASKET, FLOAT CHAMBER
12

09494-00884 ...JET, NEEDLE (Y-5M)

...JET, NEEDLE (Y-5M)
13

13331-07D00 ...RING

...RING
14

09491-28010 ...JET, MAIN (140)

...JET, MAIN (140)
15

13250-12EH0 ...FLOAT/NEEDLE VALVE ASSY

...FLOAT/NEEDLE VALVE ASSY
16

13374-46710 ...O RING

...O RING
17

13374-35C00 ...O RING

...O RING
18

13683-32E00 ...HOSE (6.5X10.5X275)

...HOSE (6.5X10.5X275)
19

02112-7516B ...SCREW

...SCREW
20

13331-12D00 ...RING

...RING
21

13394-31210 ...E RING

...E RING
22

13387-07D00 ...RING

...RING
23

13383-32E10 ...NEEDLE, JET (6F23-1)

...NEEDLE, JET (6F23-1)
24

13236-12C00 ...FILTER

...FILTER
25

13247-13A00 ...SCREW, DRAIN

...SCREW, DRAIN
26

09492-42010 ...JET, PILOT (42.5)

...JET, PILOT (42.5)
27

13295-29900 ...O RING

...O RING
28

13291-29900 ...WASHER

...WASHER
29

13268-47070 ...SPRING

...SPRING
30

13279-47070 ...SCREW, PILOT (1,1/2)

...SCREW, PILOT (1,1/2)
31

13607-37010 ...NUT

...NUT
32

13267-31D00 ...ADJUSTER

...ADJUSTER
33

13615-43010 ...WASHER

...WASHER
34

13271-33C00 ...SPRING

...SPRING
35

13432-95210 ...RING

...RING
36

13267-31D10 ...ADJUSTER

...ADJUSTER
37

13601-05148-XC0 ...SCREW

...SCREW
38

13278-02340 ...O RING

...O RING
39

09355-45855-600 ...HOSE (4.5X8.5X600)

...HOSE (4.5X8.5X600)
40

13281-05A00 ...PLUG

...PLUG
