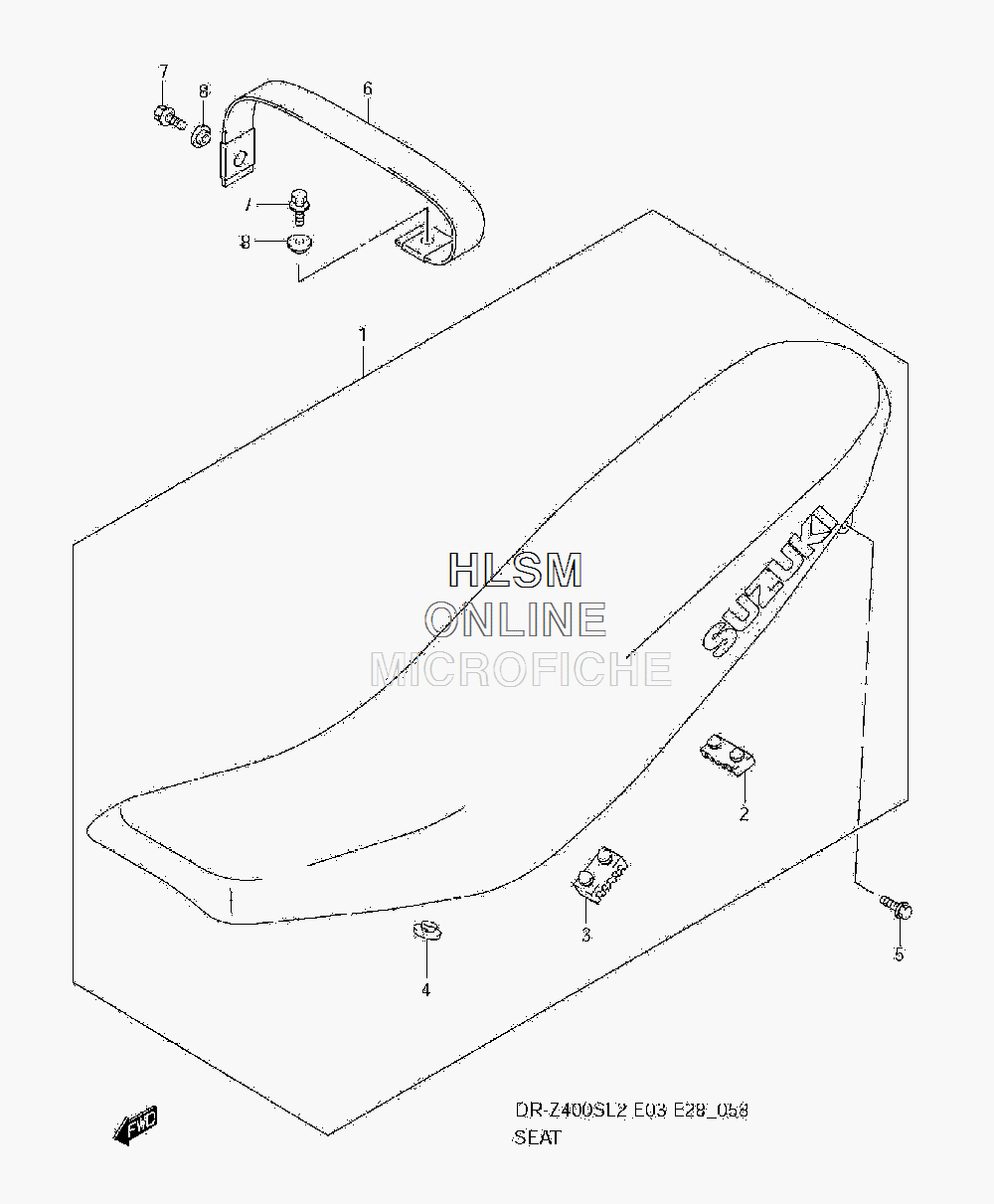

SEAT для Suzuki DR-Z400SL2 - 2012 года выпуска`
-
№АртикулНазвание
-
145100-29FB0-BYD SEAT ASSY (INCL. 2-4)SEAT ASSY (INCL. 2-4)
-
245149-12C00 CUSHION (40X20X6) (FRONT/REAR)CUSHION (40X20X6) (FRONT/REAR)
-
345149-31300 CUSHION (40X20X15) (CENTER)CUSHION (40X20X15) (CENTER)
-
409321-10022 CUSHIONCUSHION
-
509116-06182 BOLT (6X20)BOLT (6X20)
-
645180-29F00-T5N BAND ASSY, SEAT (GRAY)BAND ASSY, SEAT (GRAY)
-
709116-06150 BOLT (6X25)BOLT (6X25)
-
809169-06063 WASHERWASHER
