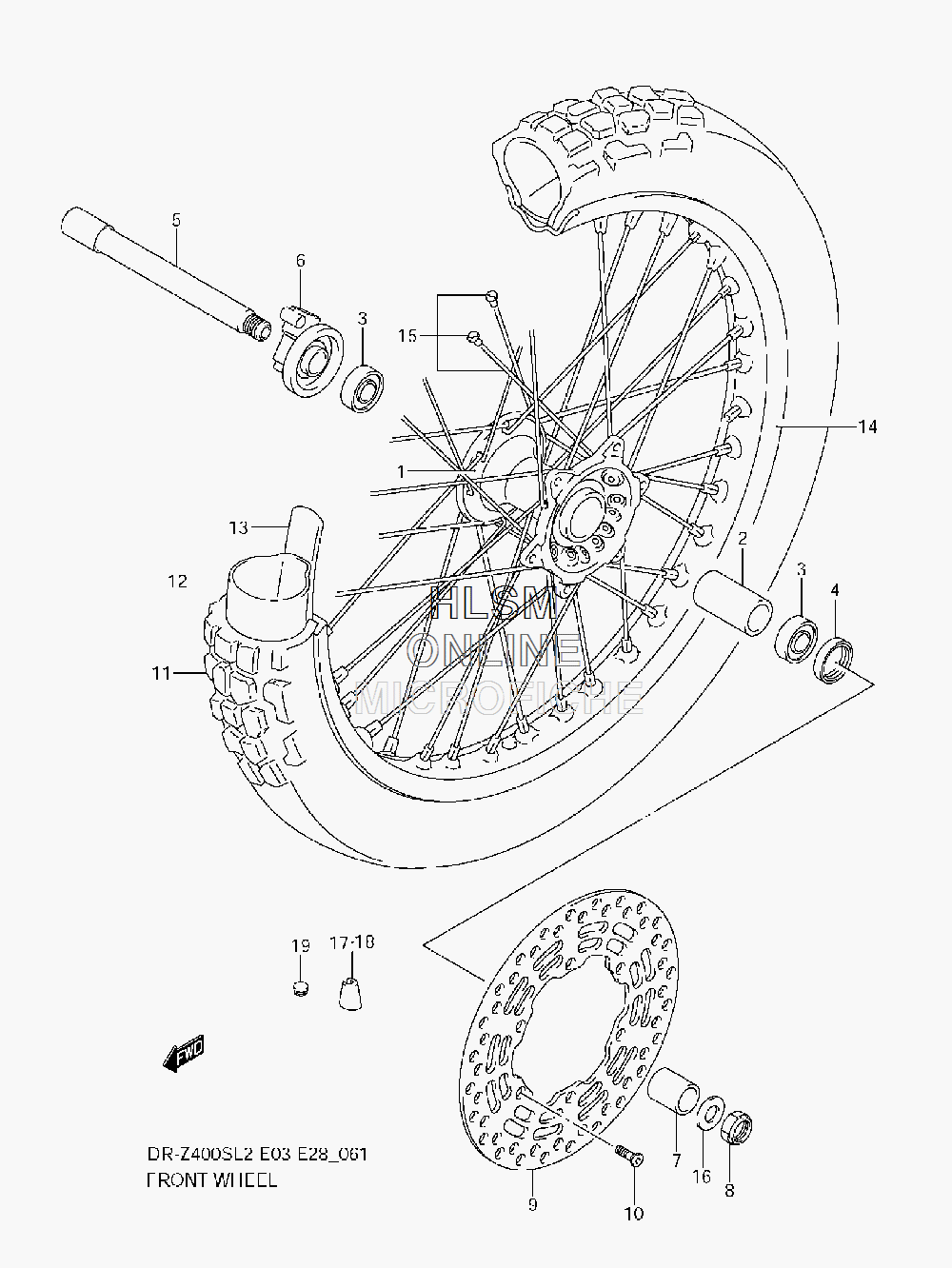

WHEEL - FRONT для Suzuki DR-Z400SL2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    54111-29F10 HUB, FRONT
    HUB, FRONT
  • 2
    54731-36E10 SPACER, FRONT HUB BEARING (20.5X27.3X70)
    SPACER, FRONT HUB BEARING (20.5X27.3X70)
  • 3
    08130-69047 BEARING (30H = SPECIAL WHITE)
    BEARING (30H = SPECIAL WHITE)
  • 4
    09283-25083 OIL SEAL (25X37X6)
    OIL SEAL (25X37X6)
  • 5
    54711-29F10 AXLE, FRONT
    AXLE, FRONT
  • 6
    54600-29F00 BOX ASSY, SPEEDOMETER GEAR
    BOX ASSY, SPEEDOMETER GEAR
  • 7
    54751-36E10 SPACER, FRONT AXLE LEFT HAND (L:31)
    SPACER, FRONT AXLE LEFT HAND (L:31)
  • 8
    09159-18018 NUT
    NUT
  • 9
    59221-13E00 DISC, FRONT BRAKE LEFT HAND
    DISC, FRONT BRAKE LEFT HAND
  • 10
    09120-06014 SCREW (6X18)
    SCREW (6X18)
  • 11
    55110-29F10 TIRE, FRONT (80/100-21 51P) (BRIDGESTONE)
    TIRE, FRONT (80/100-21 51P) (BRIDGESTONE)
  • 12
    55200-32E01 TUBE ASSY, WHEEL INNER
    TUBE ASSY, WHEEL INNER
  • 13
    55261-32E01 PROTECTOR, WHEEL INNER TUBE
    PROTECTOR, WHEEL INNER TUBE
  • 14
    55311-29F00 RIM, FRONT WHEEL (1.60X21)
    RIM, FRONT WHEEL (1.60X21)
  • 15
    55320-29F00 SPOKE SET, FRONT WHEEL
    SPOKE SET, FRONT WHEEL
  • 16
    09160-18034 WASHER (18X26X2.8)
    WASHER (18X26X2.8)
  • 17
    55412-41F00 BALANCER, WHEEL NO.1
    BALANCER, WHEEL NO.1
  • 18
    55413-41F00 BALANCER, WHEEL NO.2
    BALANCER, WHEEL NO.2
  • 19
    09250-08013 CAP
    CAP
