GASKET SET для Suzuki DR-Z400SL2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1

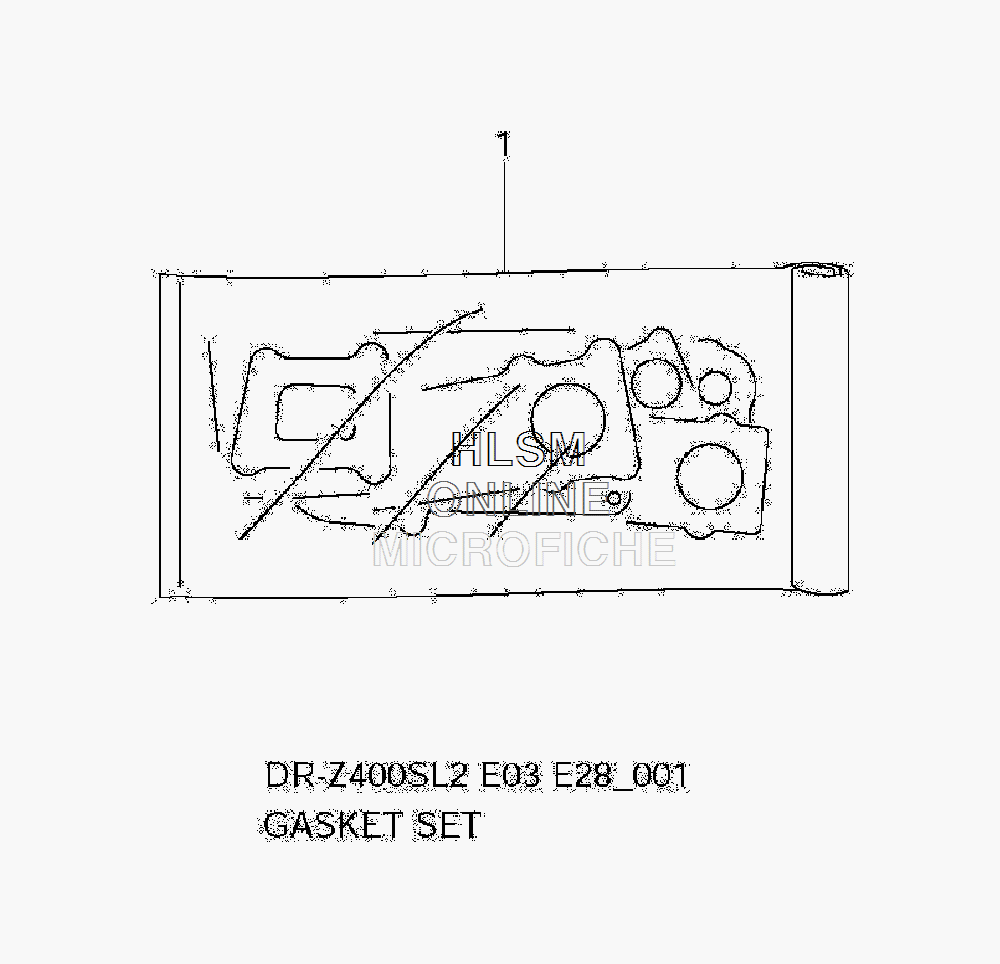

    11401-29882 GASKET SET (SHOWN)
    GASKET SET (SHOWN)
  • 2
    11141-29F01 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 3
    11173-29F00 GASKET, CYLINDER HEAD COVER
    GASKET, CYLINDER HEAD COVER
  • 4
    11241-29F11 GASKET, CYLINDER
    GASKET, CYLINDER
  • 5
    11482-29F00 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 6
    11483-29F00 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 7
    11484-29F00 O RING, CLUTCH COVER OUTER
    O RING, CLUTCH COVER OUTER
  • 8
    12837-24A10 GASKET, TENSIONER ADJUSTER
    GASKET, TENSIONER ADJUSTER
  • 9
    14181-29E02 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 10
    11191-27E00 WASHER, CYLINDER HEAD
    WASHER, CYLINDER HEAD
  • 11
    09280-11005 O RING, CYLINDER (D:2.4,ID:11.0)
    O RING, CYLINDER (D:2.4,ID:11.0)
  • 12
    09280-13004 O RING, OIL PUMP (D:1.9,ID:13.0)
    O RING, OIL PUMP (D:1.9,ID:13.0)
  • 13
    09280-17003 O RING, OIL FILTER (D:3.1,ID:16.8)
    O RING, OIL FILTER (D:3.1,ID:16.8)
  • 14
    09280-33004 O RING, CRANKSHAFT (D:3.1,ID:32.7)
    O RING, CRANKSHAFT (D:3.1,ID:32.7)
  • 15
    09280-54001 O RING, OIL FLT (D:2.4,ID:52.6)
    O RING, OIL FLT (D:2.4,ID:52.6)
  • 16
    09280-71008 O RING, STARTER (D:2.6,ID:67.1)
    O RING, STARTER (D:2.6,ID:67.1)
