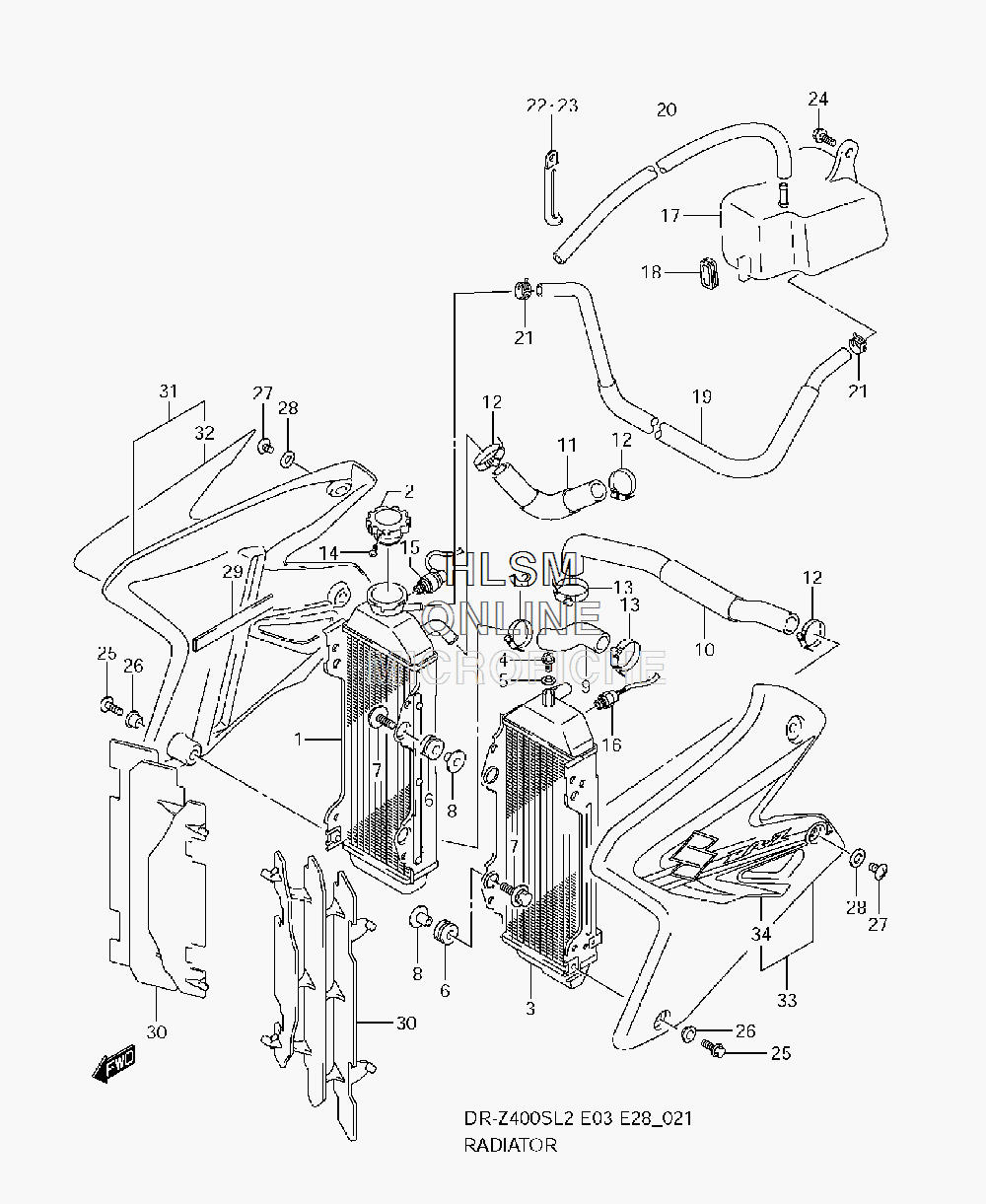

RADIATOR для Suzuki DR-Z400SL2 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    17710-29F40 RADIATOR, WATER RIGHT HAND
    RADIATOR, WATER RIGHT HAND
  • 2
    17730-19D11 CAP, RADIATOR (1.1)
    CAP, RADIATOR (1.1)
  • 3
    17720-29F40 RADIATOR, WATERLEFT HAND
    RADIATOR, WATERLEFT HAND
  • 4
    17568-50F00 BOLT, AIR RELEASE
    BOLT, AIR RELEASE
  • 5
    09168-06026 GASKET (6.4X11.5X0.8)
    GASKET (6.4X11.5X0.8)
  • 6
    17787-19A00 CUSHION, RADIATOR SUPPORT
    CUSHION, RADIATOR SUPPORT
  • 7
    09116-06147 BOLT (6X25)
    BOLT (6X25)
  • 8
    09180-06243 SPACER (6.5X10.5X14.1)
    SPACER (6.5X10.5X14.1)
  • 9
    17851-29F10 HOSE, RADIATOR INLET
    HOSE, RADIATOR INLET
  • 10
    17852-29F30 HOSE, RADIATOR OUTLET
    HOSE, RADIATOR OUTLET
  • 11
    17853-29F10 HOSE, RADIATOR JOINT
    HOSE, RADIATOR JOINT
  • 12
    09402-28513 CLAMP
    CLAMP
  • 13
    09402-32512 CLAMP
    CLAMP
  • 14
    17733-03D10 SCREW, RADIATOR CAP
    SCREW, RADIATOR CAP
  • 15
    34850-29F00 SWITCH ASSY, WATER TEMP
    SWITCH ASSY, WATER TEMP
  • 16
    17680-24A30 SWITCH, FAN
    SWITCH, FAN
  • 17
    17911-29F11 TANK, RESERVOIR
    TANK, RESERVOIR
  • 18
    17913-29F00 CUSHION, RESERVOIR TANK
    CUSHION, RESERVOIR TANK
  • 19
    17981-29F01 HOSE, RESERVOIR TANK INLET
    HOSE, RESERVOIR TANK INLET
  • 20
    09352-50901-00B HOSE (5X9X2000)
    HOSE (5X9X2000)
  • 21
    09401-08411 CLIP
    CLIP
  • 22
    09404-08205 CLAMP (L:62)
    CLAMP (L:62)
  • 23
    09404-06429 CLAMP (L:45)
    CLAMP (L:45)
  • 24
    01550-0612B BOLT
    BOLT
  • 25
    09103-06274 BOLT (6X16)
    BOLT (6X16)
  • 26
    09169-06053 WASHER
    WASHER
  • 27
    09103-06275 BOLT (6X8)
    BOLT (6X8)
  • 28
    09160-06125 WASHER (6.5X14X1.6)
    WASHER (6.5X14X1.6)
  • 29
    47451-38A01 CUSHION, RADIATOR COVER
    CUSHION, RADIATOR COVER
  • 30
    17831-37E11 LOUVER, RADIATOR
    LOUVER, RADIATOR
  • 31
    17760-29FG0-3WX COVER, RADIATOR RIGHT HAND (INCL. 32) (3WX - BLACK FOR 019)
    COVER, RADIATOR RIGHT HAND (INCL. 32) (3WX - BLACK FOR 019)
  • 31
    17760-29FG0-5UX COVER, RADIATOR RIGHT HAND (INCL. 32) (5UX - WHITE FOR 30H)
    COVER, RADIATOR RIGHT HAND (INCL. 32) (5UX - WHITE FOR 30H)
  • 32
    68665-29FG0-HMA TAPE, RADIATOR COVER RIGHT HAND (FOR 3WX - BLACK)
    TAPE, RADIATOR COVER RIGHT HAND (FOR 3WX - BLACK)
  • 32
    68665-29FG0-HMB TAPE, RADIATOR COVER RIGHT HAND (FOR 5UX - WHITE)
    TAPE, RADIATOR COVER RIGHT HAND (FOR 5UX - WHITE)
  • 33
    17770-29FG0-3WX COVER, RADIATOR LEFT HAND (INCL. 34) (BLACK FOR 019)
    COVER, RADIATOR LEFT HAND (INCL. 34) (BLACK FOR 019)
  • 33
    17770-29FG0-5UX COVER, RADIATOR LEFT HAND (INCL. 34) (WHITE FOR 30H)
    COVER, RADIATOR LEFT HAND (INCL. 34) (WHITE FOR 30H)
  • 34
    68675-29FG0-HMA TAPE, RADIATOR COVER LEFT HAND (FOR 3WX - BLACK)
    TAPE, RADIATOR COVER LEFT HAND (FOR 3WX - BLACK)
  • 34
    68675-29FG0-HMB TAPE, RADIATOR COVER LEFT HAND (FOR 5UX - WHITE)
    TAPE, RADIATOR COVER LEFT HAND (FOR 5UX - WHITE)
