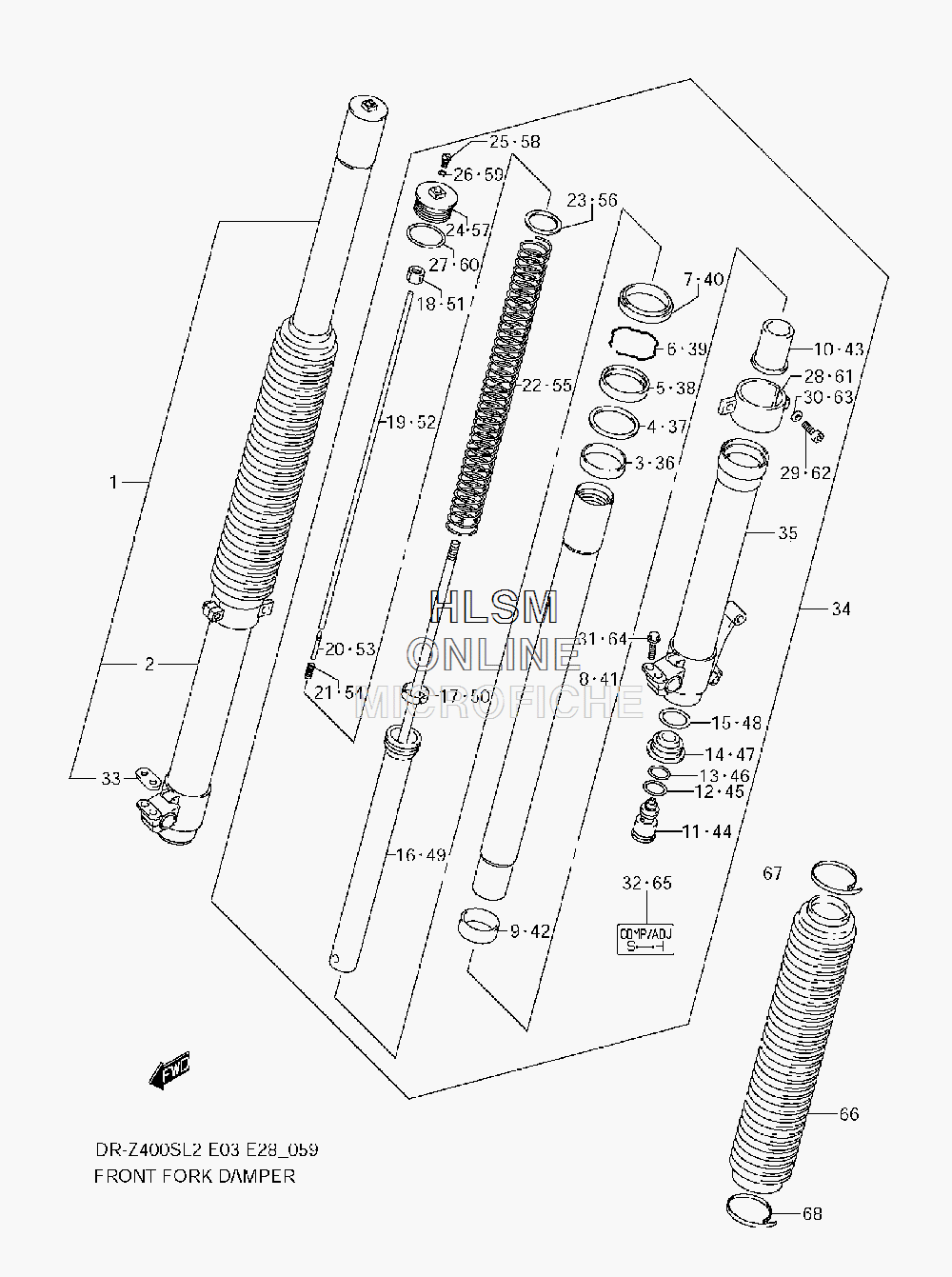

SUSPENSION - FRONT FORK для Suzuki DR-Z400SL2 - 2012 года выпуска
-
№АртикулНазвание
-
151103-29F60 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2-33)DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 2-33)
-
251130-29F60 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
351167-36E80 BUSH, GUIDEBUSH, GUIDE
-
451158-36E00 SPACER, SEALSPACER, SEAL
-
551153-36E00 SEAL, OILSEAL, OIL
-
651156-36E00 RING, STOPPERRING, STOPPER
-
751173-36E00 SEAL, DUSTSEAL, DUST
-
851110-29F00 TUBE, INNERTUBE, INNER
-
951121-36E40 BUSH, SLIDEBUSH, SLIDE
-
1051195-29F00 PIECE, OIL LOCKPIECE, OIL LOCK
-
1151170-29F00 BOLT, CENTERBOLT, CENTER
-
1251175-29F00 O RINGO RING
-
1351174-29F00 O RINGO RING
-
1451205-29F00 PLATE, ENDPLATE, END
-
1551117-27C40 O RINGO RING
-
1651190-29F00 ROD, FRONT DAMPERROD, FRONT DAMPER
-
1751122-29F00 BUSH, SLIDEBUSH, SLIDE
-
1851827-33E00 NUTNUT
-
1951191-29F00 ROD, PUSHROD, PUSH
-
2051192-05D80 NEEDLENEEDLE
-
2151193-28E00 SPRING, PUSH RODSPRING, PUSH ROD
-
2251171-29F60 SPRING, FR (K=8.63N/0.88KG)SPRING, FR (K=8.63N/0.88KG)
-
2351192-36E00 JOINT, SPRINGJOINT, SPRING
-
2451351-29F00 BOLT, FORKBOLT, FORK
-
2551357-28E30 BOLT, PLUGBOLT, PLUG
-
2651358-28E30 O RING, PLUGO RING, PLUG
-
2751117-36E00 O RINGO RING
-
2851203-29F00 HOLDER, BOOTHOLDER, BOOT
-
2907130-05207 BOLTBOLT
-
3009160-05044 WASHER (5.5X10X1)WASHER (5.5X10X1)
-
3151321-27C40 BOLT, HANDLE HOLDERBOLT, HANDLE HOLDER
-
3251149-29E40 LABELLABEL
-
3351516-29F00 COVER, AXLE HOLDERCOVER, AXLE HOLDER
-
3451104-29F60 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 35-65)DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 35-65)
-
3551140-29F60 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
3651167-36E80 BUSH, GUIDEBUSH, GUIDE
-
3751158-36E00 SPACER, SEALSPACER, SEAL
-
3851153-36E00 SEAL, OILSEAL, OIL
-
3951156-36E00 RING, STOPPERRING, STOPPER
-
4051173-36E00 SEAL, DUSTSEAL, DUST
-
4151110-29F00 TUBE, INNERTUBE, INNER
-
4251121-36E40 BUSH, SLIDEBUSH, SLIDE
-
4351195-29F00 PIECE, OIL LOCKPIECE, OIL LOCK
-
4451170-29F00 BOLT, CENTERBOLT, CENTER
-
4551175-29F00 O RINGO RING
-
4651174-29F00 O RINGO RING
-
4751205-29F00 PLATE, ENDPLATE, END
-
4851117-27C40 O RINGO RING
-
4951190-29F00 ROD, FRONT DAMPERROD, FRONT DAMPER
-
5051122-29F00 BUSH, SLIDEBUSH, SLIDE
-
5151827-33E00 NUTNUT
-
5251191-29F00 ROD, PUSHROD, PUSH
-
5351192-05D80 NEEDLENEEDLE
-
5451193-28E00 SPRING, PUSH RODSPRING, PUSH ROD
-
5551171-29F60 SPRING, FR (K=8.63N/0.88KG)SPRING, FR (K=8.63N/0.88KG)
-
5651192-36E00 JOINT, SPRINGJOINT, SPRING
-
5751351-29F00 BOLT, FORKBOLT, FORK
-
5851357-28E30 BOLT, PLUGBOLT, PLUG
-
5951358-28E30 O RING, PLUGO RING, PLUG
-
6051117-36E00 O RINGO RING
-
6151203-29F00 HOLDER, BOOTHOLDER, BOOT
-
6207130-05207 BOLTBOLT
-
6309160-05044 WASHER (5.5X10X1)WASHER (5.5X10X1)
-
6451321-27C40 BOLT, HANDLE HOLDERBOLT, HANDLE HOLDER
-
6551149-29E40 LABELLABEL
-
6651571-29F00-019 BOOT (BLACK)BOOT (BLACK)
-
6751575-29F00 BAND, BOOT UPPERBAND, BOOT UPPER
-
6851576-29F00 BAND, BOOT LOWERBAND, BOOT LOWER
