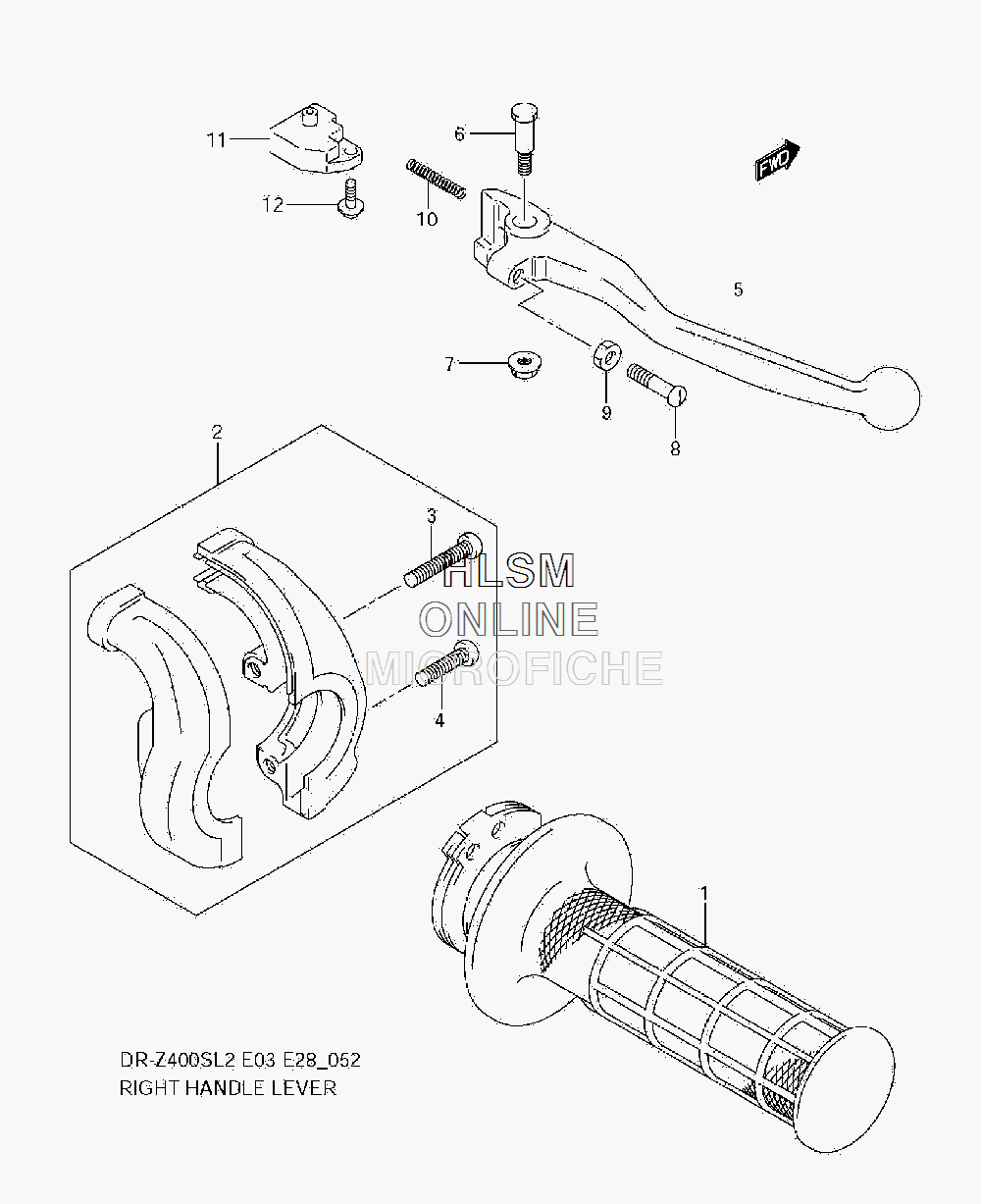

HANDLEBAR - RIGHT HANDLE LEVER для Suzuki DR-Z400SL2 - 2012 года выпуска`
-
№АртикулНазвание
-
157110-12D11 GRIP, THROTTLEGRIP, THROTTLE
-
257100-14D00 CASE ASSY, THROTTLE (INCL. 3, 4)CASE ASSY, THROTTLE (INCL. 3, 4)
-
309125-05066 SCREW (5X25)SCREW (5X25)
-
402112-0520B SCREWSCREW
-
557421-44E00 LEVER, BRAKELEVER, BRAKE
-
657431-14500 BOLT, BRAKE LEVERBOLT, BRAKE LEVER
-
708319-2106A NUTNUT
-
857431-14511 BOLT, ADJUSTBOLT, ADJUST
-
908310-0005A NUTNUT
-
1057318-14502 SPRING, RETURNSPRING, RETURN
-
1157460-17C11 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
1257465-17C00 SCREWSCREW
