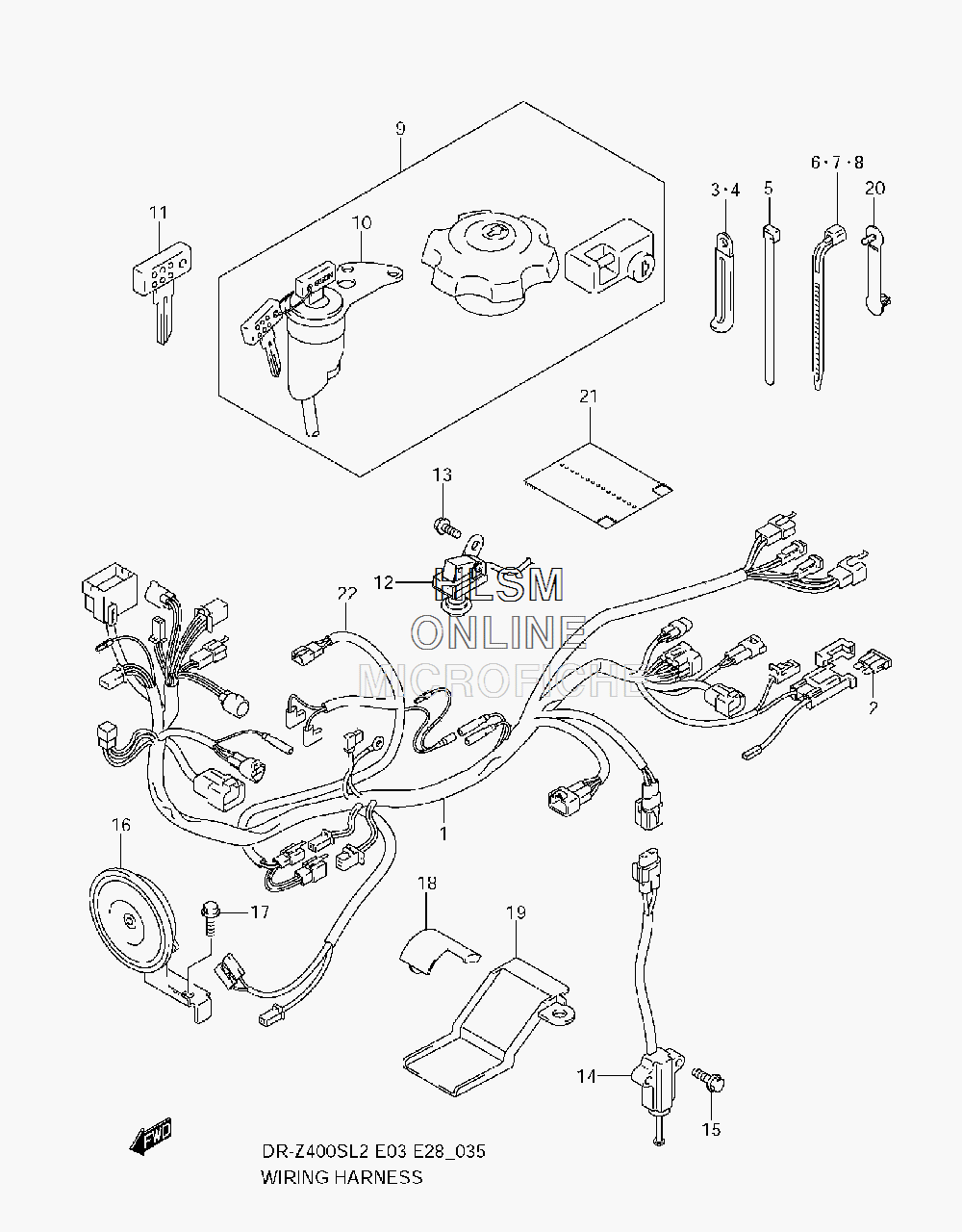

ELECTRICAL - WIRING HARNESS для Suzuki DR-Z400SL2 - 2012 года выпуска`
-
№АртикулНазвание
-
136610-29FF0 HARNESS, WIRINGHARNESS, WIRING
-
209481-20101 FUSE (20A)FUSE (20A)
-
309404-06429 CLAMP (L:45)CLAMP (L:45)
-
409404-06433 CLAMP (L:95)CLAMP (L:95)
-
509407-14407 CLAMP (L:145)CLAMP (L:145)
-
609407-14403 CLAMP (L:125)CLAMP (L:125)
-
709407-18402 CLAMP (L:165)CLAMP (L:165)
-
809407-25401 CLAMP (L:235)CLAMP (L:235)
-
937000-29821 LOCK SET (INCL. 10)LOCK SET (INCL. 10)
-
1037110-29F00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1137146-01F00 KEY, BLANK (TYPE:C)KEY, BLANK (TYPE:C)
-
1137146-01F10 KEY, BLANK (TYPE:D)KEY, BLANK (TYPE:D)
-
1137146-01F20 KEY, BLANK (TYPE:E)KEY, BLANK (TYPE:E)
-
1137146-01F30 KEY, BLANK (TYPE:F)KEY, BLANK (TYPE:F)
-
1237740-29F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1302162-0608B SCREWSCREW
-
1437840-11X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1501550-0616B BOLTBOLT
-
1638500-29F01 HORN ASSYHORN ASSY
-
1701550-0612B BOLTBOLT
-
1836611-29F10 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1936611-29F00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2036651-48E00 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2136618-15D20 COVER, WIRING HARNESSCOVER, WIRING HARNESS
-
2236856-29F00 WIRE, CARBURETOR HEATER (OPT)WIRE, CARBURETOR HEATER (OPT)
