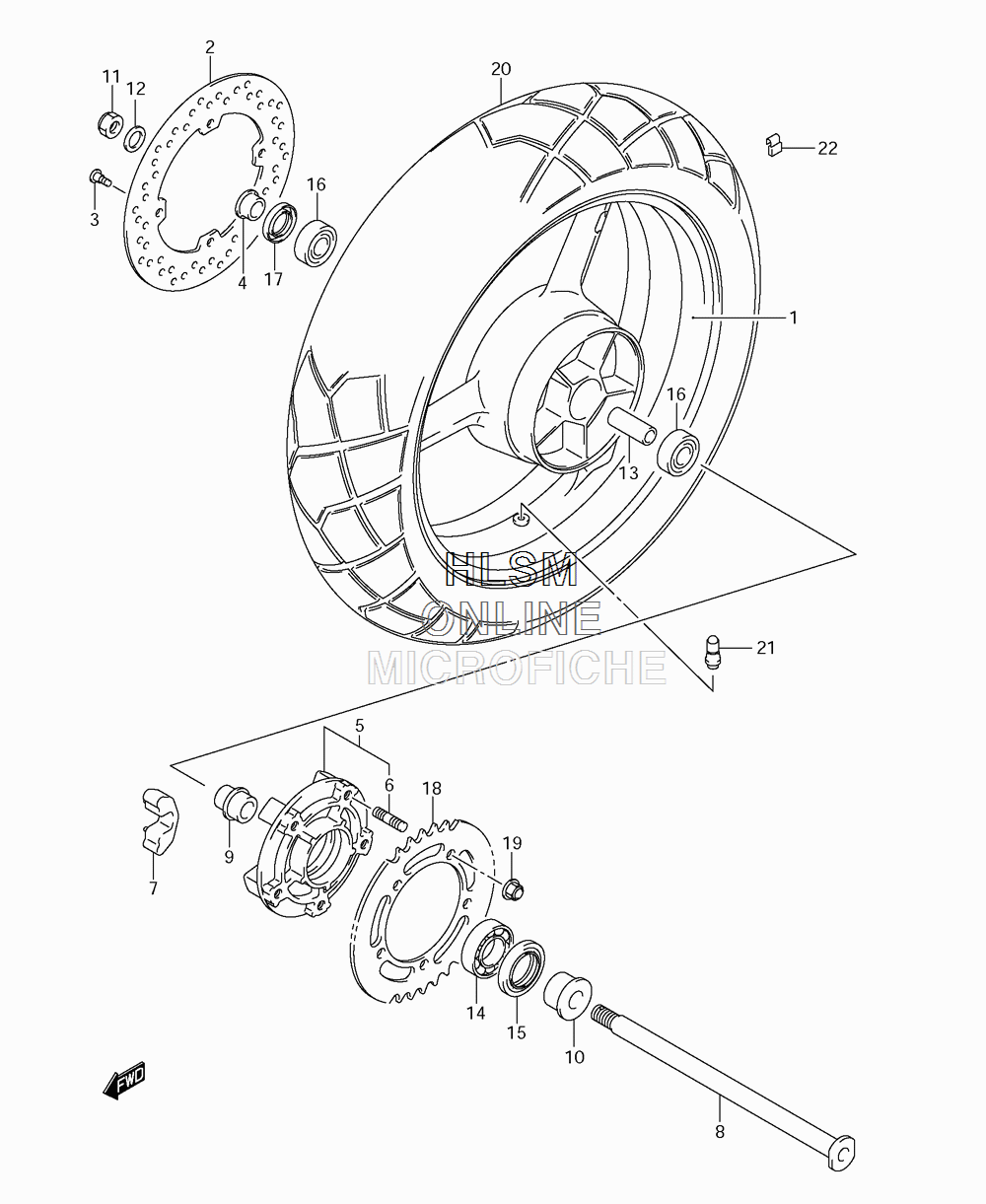

WHEEL - REAR для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска

№

Артикул

Название
1

64111-06G01-019 WHEEL, REAR (17M/CXMT4.00) (BLACK)

WHEEL, REAR (17M/CXMT4.00) (BLACK)
2

69211-06G00 DISC, REAR BRAKE

DISC, REAR BRAKE
3

09106-08160 BOLT (8X21)

BOLT (8X21)
4

64741-10F00 SPACER, REAR AXLE RIGHT HAND

SPACER, REAR AXLE RIGHT HAND
5

64610-06G00 DRUM, REAR SPROCKET

DRUM, REAR SPROCKET
6

09108-10061 STUD BOLT

STUD BOLT
7

64651-35F10 ABSORBER, REAR HUB SHOCK

ABSORBER, REAR HUB SHOCK
8

64711-06G00 AXLE, REAR

AXLE, REAR
9

64733-06G00 RETAINER, REAR SPROCKET DRUM

RETAINER, REAR SPROCKET DRUM
10

64751-06G00 SPACER, REAR AXLE LEFT HAND

SPACER, REAR AXLE LEFT HAND
11

09159-18007 NUT

NUT
12

09160-19022 WASHER (19X32X3.2)

WASHER (19X32X3.2)
13

09180-20112 SPACER (20.8X27.2X124)

SPACER (20.8X27.2X124)
14

09262-32007 BEARING (32X65X17)

BEARING (32X65X17)
15

09285-39001 OIL SEAL (39X65X7)

OIL SEAL (39X65X7)
16

08123-62047 BEARING

BEARING
17

09285-28001 OIL SEAL (28X47X7)

OIL SEAL (28X47X7)
18

64511-35F20 SPROCKET, REAR (NT:41-525)

SPROCKET, REAR (NT:41-525)
19

08319-3110A NUT

NUT
20

65110-06G00 TIRE, REAR (150/70R17M/C 69H)

TIRE, REAR (150/70R17M/C 69H)
21

43130-24A00 VALVE ASSY, WHEEL RIM

VALVE ASSY, WHEEL RIM
22

43222-73H10 BALANCER, WHEEL NO.1

BALANCER, WHEEL NO.1
22

43224-73H10 BALANCER, WHEEL NO.2

BALANCER, WHEEL NO.2
22

43226-73H10 BALANCER, WHEEL NO.3

BALANCER, WHEEL NO.3
