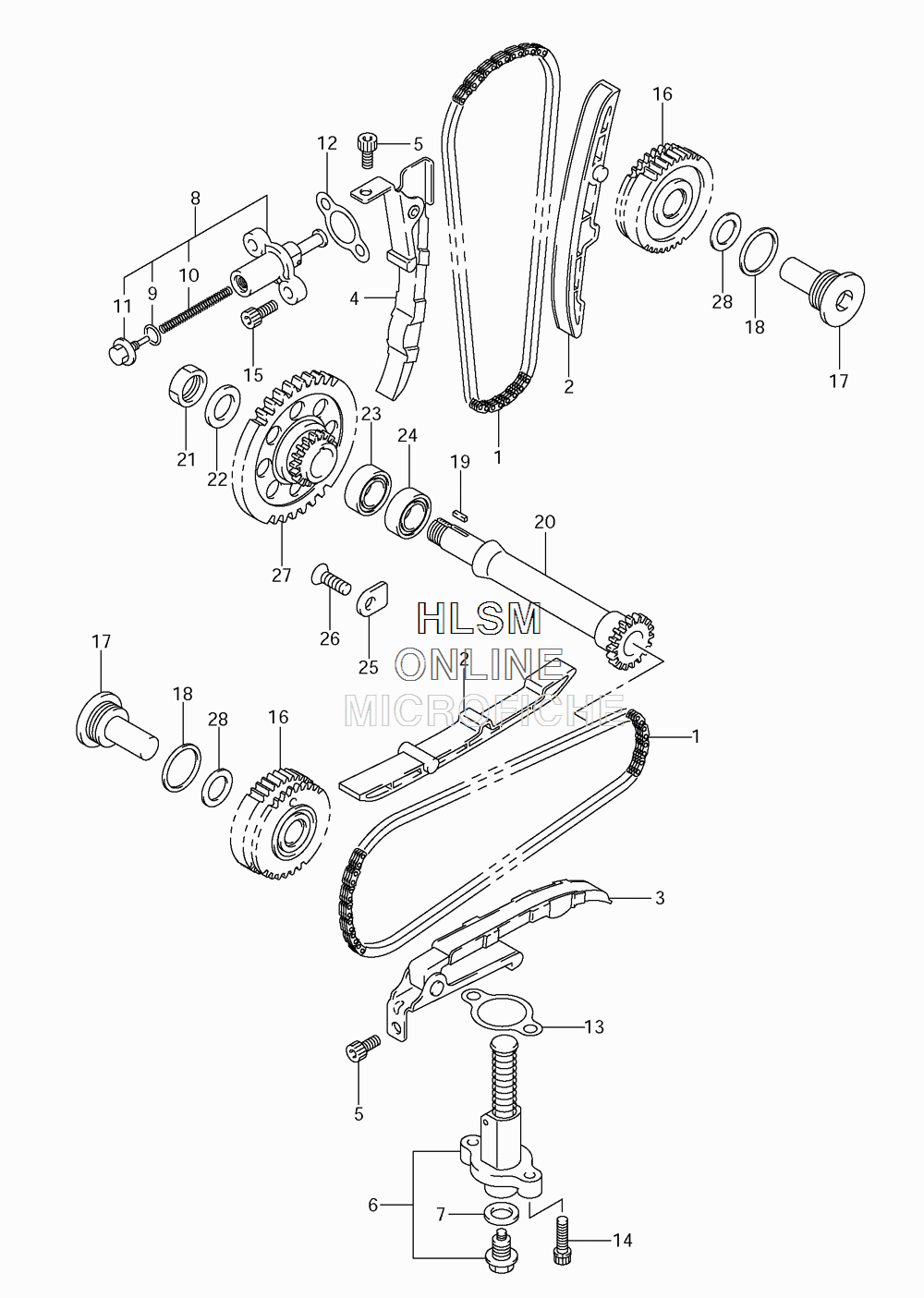

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
112760-23F00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-06G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312810-06G00 TENSIONER, FRONT CAM CHAINTENSIONER, FRONT CAM CHAIN
-
412815-06G00 TENSIONER, REAR CAM CHAINTENSIONER, REAR CAM CHAIN
-
507120-0612A BOLTBOLT
-
612832-05A10 ADJUSTER ASSY,FRONT TENSIONERADJUSTER ASSY,FRONT TENSIONER
-
709168-12018 GASKET (12X21X2)GASKET (12X21X2)
-
812830-30A01 ADJUSTER ASSY, REAR TENSIONERADJUSTER ASSY, REAR TENSIONER
-
912832-02A00 O RINGO RING
-
1012833-30A01 SPRINGSPRING
-
1112834-02A00 PLUGPLUG
-
1212837-19B10 GASKETGASKET
-
1312837-24A10 GASKETGASKET
-
1407130-0625A BOLTBOLT
-
1507130-0620A BOLTBOLT
-
1612750-06G00 GEAR, CAM CHAIN IDLER NO.2GEAR, CAM CHAIN IDLER NO.2
-
1712755-02F01 SHAFT, IDLER NO.2SHAFT, IDLER NO.2
-
1809168-26001 GASKET (26.5X30.5X1)GASKET (26.5X30.5X1)
-
1909421-04004 KEYKEY
-
2012716-06G00 SHAFT, IDLERSHAFT, IDLER
-
2109140-16001 NUTNUT
-
2209181-16212 SHIM (16X26X1.5)SHIM (16X26X1.5)
-
2308112-63030 BEARINGBEARING
-
2409262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
2524741-20A00 RETAINER, BEARINGRETAINER, BEARING
-
2609126-06011 SCREW (6X12)SCREW (6X12)
-
2712731-06G01 SPROCKET, IDLER NO.1SPROCKET, IDLER NO.1
-
2809181-15164 SHIM (15X24X0.9)SHIM (15X24X0.9)
-
2809181-15166 SHIM (15X24X1)SHIM (15X24X1)
-
2809181-15172 SHIM (15X24X1.1)SHIM (15X24X1.1)
-
2809181-15176 SHIM (15X24X1.2)SHIM (15X24X1.2)
-
2809181-15181 SHIM (15X24X1.3)SHIM (15X24X1.3)
-
2809181-15182 SHIM (15X24X1.4)SHIM (15X24X1.4)
