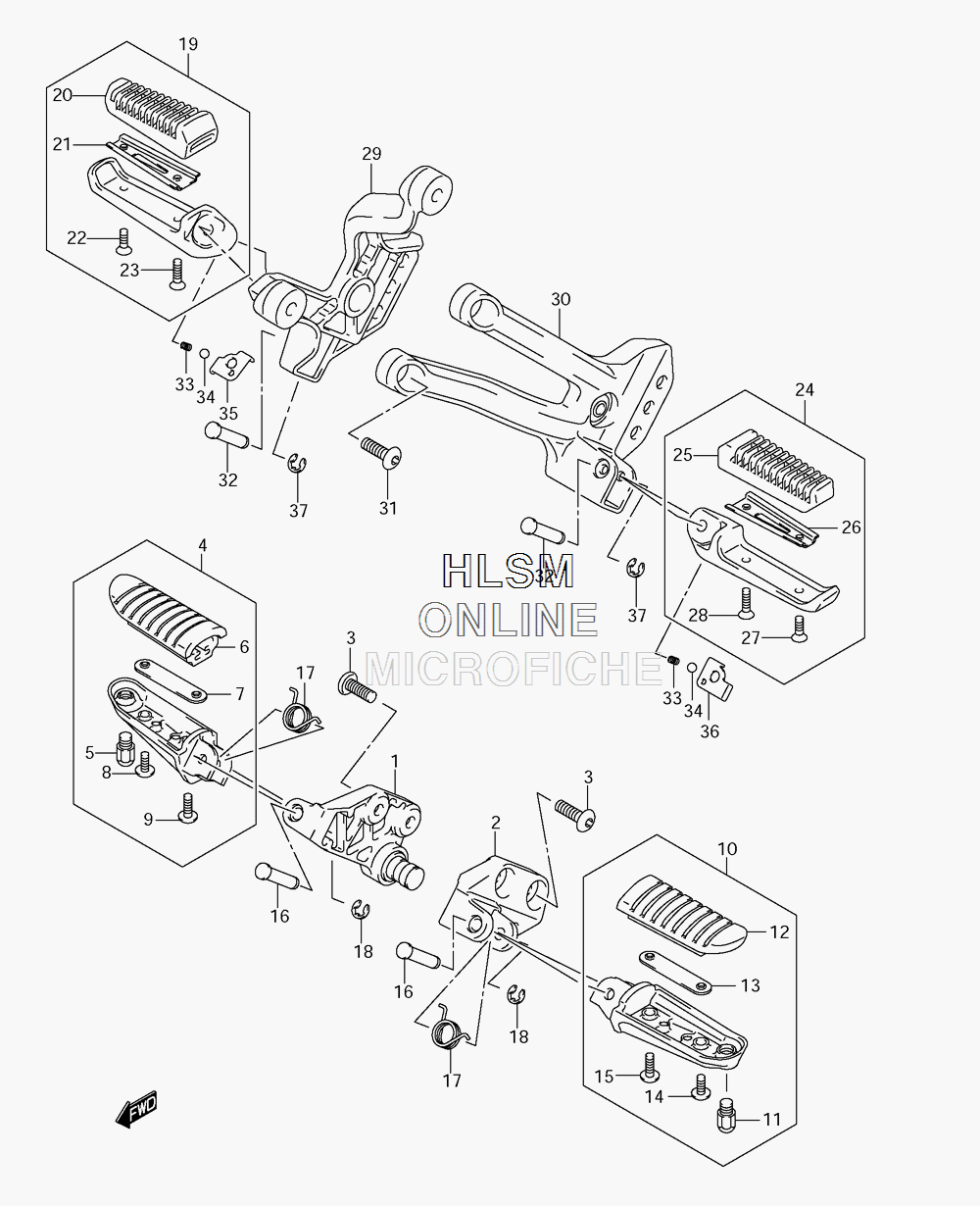

FOOTREST для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
143510-06G01-YAP BRACKET, FRONT RIGHT HAND (BLACK)BRACKET, FRONT RIGHT HAND (BLACK)
-
243521-06G01-YAP BRACKET, FRONT LEFT HAND (BLACK)BRACKET, FRONT LEFT HAND (BLACK)
-
309106-08150 BOLT (8X23)BOLT (8X23)
-
443501-06G10 FOOTREST ASSY, FRONT RIGHT HANDFOOTREST ASSY, FRONT RIGHT HAND
-
543576-07D01 SENSOR, FOOTRESTSENSOR, FOOTREST
-
643551-06G00 RUBBERRUBBER
-
743552-06G00 PLATEPLATE
-
802142-0516A SCREWSCREW
-
902142-0520A SCREWSCREW
-
1043502-06G10 FOOTREST ASSY, FRONT LEFT HANDFOOTREST ASSY, FRONT LEFT HAND
-
1143576-07D01 SENSOR, FOOTRESTSENSOR, FOOTREST
-
1243551-06G00 RUBBERRUBBER
-
1343552-06G00 PLATEPLATE
-
1402142-0516A SCREWSCREW
-
1502142-0520A SCREWSCREW
-
1609208-08016 PINPIN
-
1709448-18022 SPRINGSPRING
-
1808332-1106A E RINGE RING
-
1943600-42F10 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
2043612-31300 RUBBERRUBBER
-
2143632-45501 PLATE, RUBBER STOPPERPLATE, RUBBER STOPPER
-
2202122-0512A SCREWSCREW
-
2302122-0516A SCREWSCREW
-
2443700-42F10 FOOTREST ASSY, PILLION LEFT HANDFOOTREST ASSY, PILLION LEFT HAND
-
2543612-31300 RUBBERRUBBER
-
2643632-45501 PLATE, RUBBER STOPPERPLATE, RUBBER STOPPER
-
2702122-0512A SCREWSCREW
-
2802122-0516A SCREWSCREW
-
2943811-06G01-YAP BRACKET, PILLION RIGHT HAND (BLACK)BRACKET, PILLION RIGHT HAND (BLACK)
-
3043821-06G01-YAP BRACKET, PILLION LEFT HAND (BLACK)BRACKET, PILLION LEFT HAND (BLACK)
-
3109106-08150 BOLT (8X23)BOLT (8X23)
-
3209208-08010 PIN (8X33.2)PIN (8X33.2)
-
3309440-05005 SPRINGSPRING
-
3406111-07004 BALLBALL
-
3543816-42F10 PLATE, FOOTREST RIGHT HANDPLATE, FOOTREST RIGHT HAND
-
3643826-42F10 PLATE, FOOTREST LEFT HANDPLATE, FOOTREST LEFT HAND
-
3708332-1106A E RINGE RING
