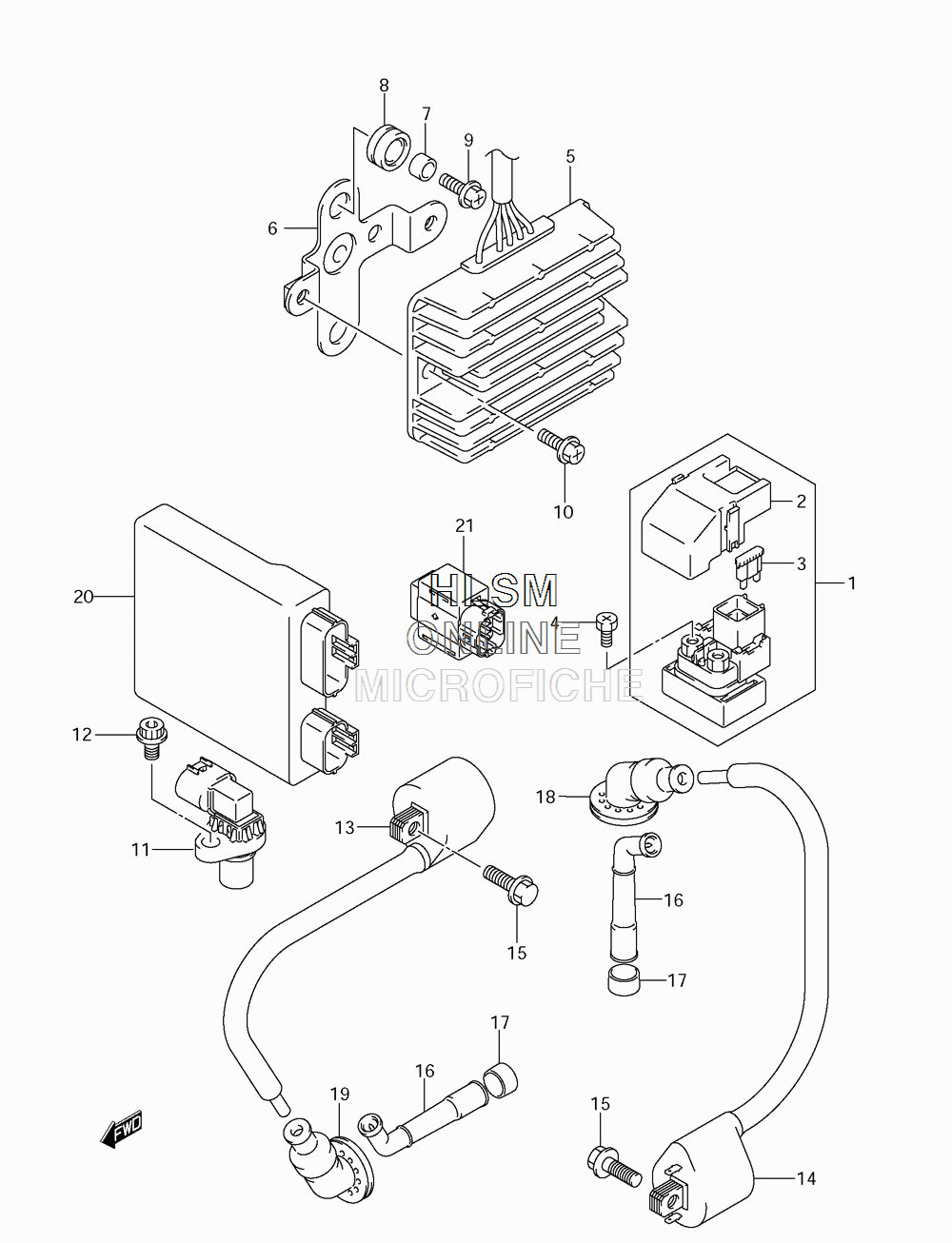

ELECTRICAL для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTING MOTERRELAY ASSY, STARTING MOTER
-
231861-47E00 COVER, RELAY ASSYCOVER, RELAY ASSY
-
309481-30101 FUSE (30A)FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-06G01 RECTIFIER ASSYRECTIFIER ASSY
-
632831-06G10 BRACKET, RECTIFIERBRACKET, RECTIFIER
-
709180-06258 SPACER (6.5X9X6.7)SPACER (6.5X9X6.7)
-
809320-09036 CUSHIONCUSHION
-
902162-0620B BOLTBOLT
-
1002162-0620B BOLTBOLT
-
1133220-80G00 SENSOR ASSY, CAM POSITIONSENSOR ASSY, CAM POSITION
-
1207130-0616B BOLTBOLT
-
1333410-06G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1433420-06G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1501547-0620B BOLTBOLT
-
1633510-17G00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1733541-23E10 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1833542-06G00 SEAL, HIGH TENSION CORD, REARSEAL, HIGH TENSION CORD, REAR
-
1933542-06G10 SEAL, HIGH TENSION CORD, FRONTSEAL, HIGH TENSION CORD, FRONT
-
2032920-06G71 CONTROL UNIT, FICONTROL UNIT, FI
-
2133960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
