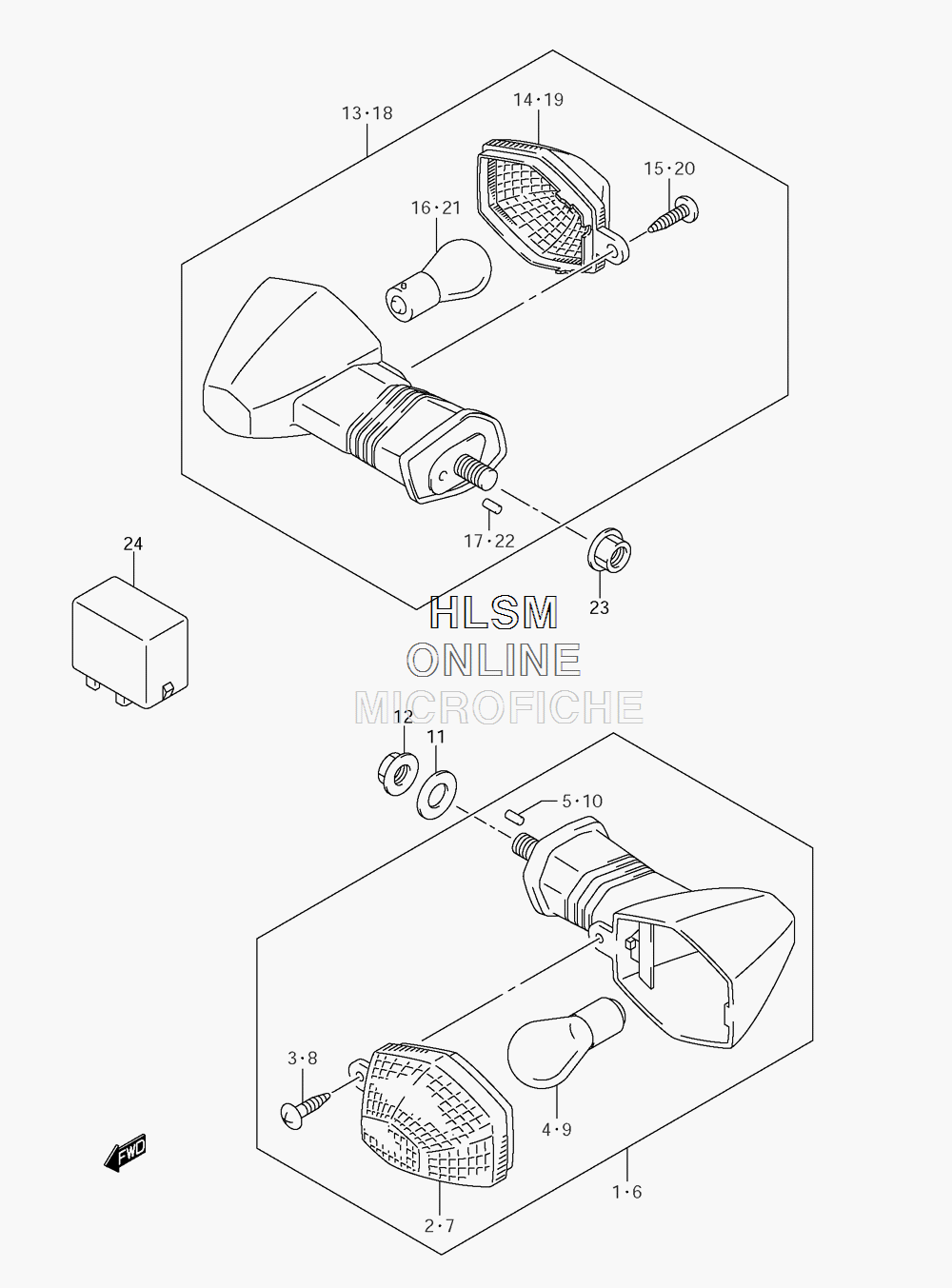

TURN SIGNAL ASSY. для Suzuki DL1000 V-Strom 1000 - 2012 года выпуска
-
№АртикулНазвание
-
135601-27G10 LAMP ASSY, FRONT TURNSIGNAL RIGHT HANDLAMP ASSY, FRONT TURNSIGNAL RIGHT HAND
-
235612-29FA0 LENS, RIGHT HANDLENS, RIGHT HAND
-
303241-0416B SCREWSCREW
-
409471-12186 BULB (12V21W)BULB (12V21W)
-
509202-04017 PIN (4.5X9.5)PIN (4.5X9.5)
-
635602-27G10 LAMP ASSY, FRONT TURNSIGNAL LEFT HANDLAMP ASSY, FRONT TURNSIGNAL LEFT HAND
-
735632-29FA0 LENS, LEFT HANDLENS, LEFT HAND
-
803241-0416B SCREWSCREW
-
909471-12186 BULB (12V21W)BULB (12V21W)
-
1009202-04017 PIN (4.5X9.5)PIN (4.5X9.5)
-
1109160-12092 WASHER (12.5X30X1.6)WASHER (12.5X30X1.6)
-
1208316-1012B NUTNUT
-
1335603-06G20 LAMP ASSY, REAR TURNSIGNAL RIGHT HANDLAMP ASSY, REAR TURNSIGNAL RIGHT HAND
-
1435632-29FA0 LENS, RIGHT HANDLENS, RIGHT HAND
-
1503241-0416A SCREWSCREW
-
1609471-12186 BULB (12V21W)BULB (12V21W)
-
1709202-04017 PIN (4.5X9.5)PIN (4.5X9.5)
-
1835604-06G20 LAMP ASSY, REAR TURNSIGNAL LEFT HANDLAMP ASSY, REAR TURNSIGNAL LEFT HAND
-
1935612-29FA0 LENS, LEFT HANDLENS, LEFT HAND
-
2003241-0416A SCREWSCREW
-
2109471-12186 BULB (12V21W)BULB (12V21W)
-
2209202-04017 PIN (4.5X9.5)PIN (4.5X9.5)
-
2308316-1012B NUTNUT
-
2438610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
