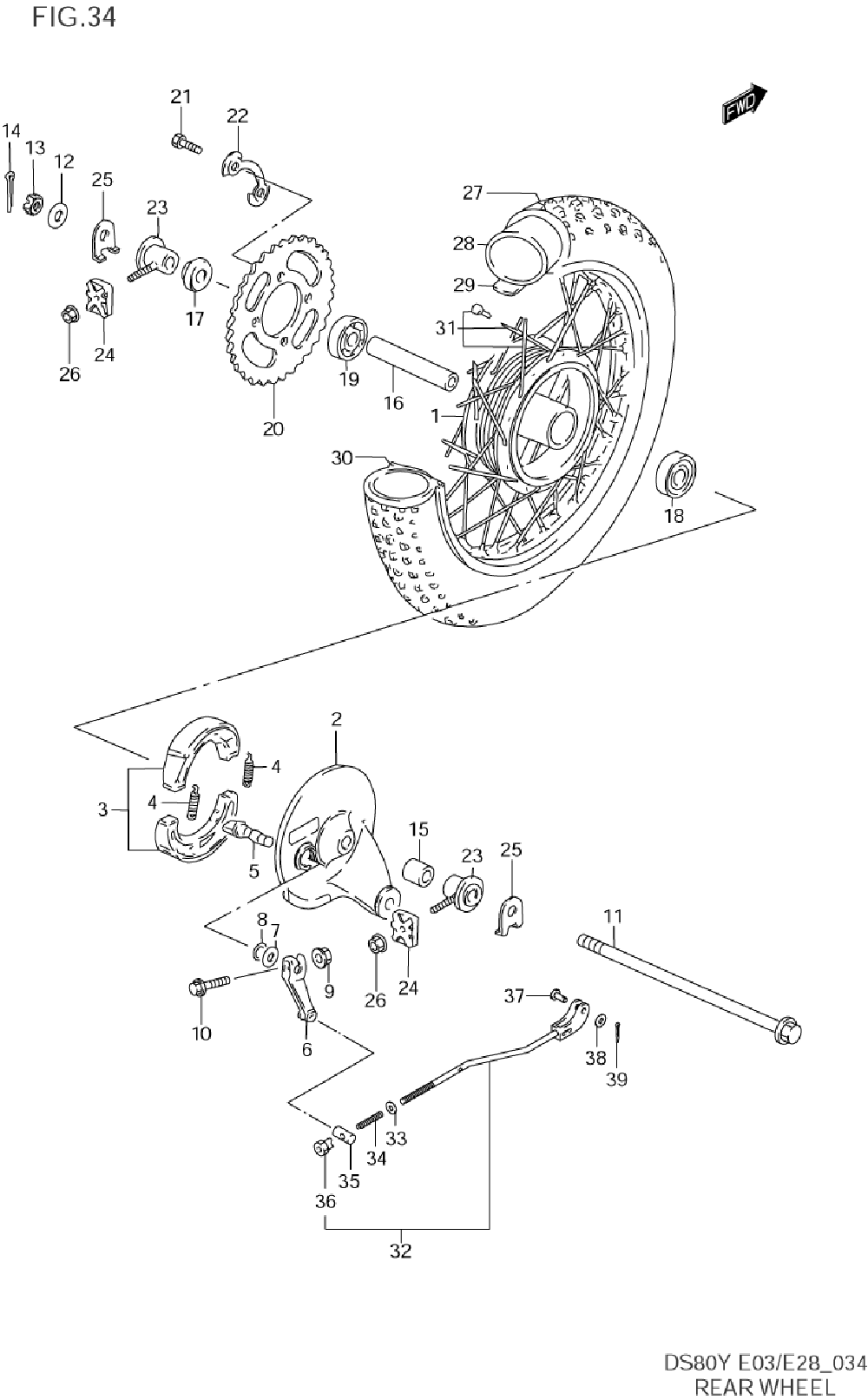

WHEEL - REAR ASSY. для Suzuki DS80Y - 2000 года выпуска`
-
№АртикулНазвание
-
164110-46401 DRUM, HUB (REAR)DRUM, HUB (REAR)
-
264210-46024 PANEL, BRAKE ANCHOR (REAR)PANEL, BRAKE ANCHOR (REAR)
-
354401-43810 SHOE SET, BRAKESHOE SET, BRAKE
-
409443-07025 SPRINGSPRING
-
554441-29305 SHAFT, BRAKE CAMSHAFT, BRAKE CAM
-
664451-17300 LEVER, BRAKE CAM (REAR)LEVER, BRAKE CAM (REAR)
-
709160-14055 WASHER (14.5X22X1.60)WASHER (14.5X22X1.60)
-
809280-14011 O RING (ID:13.8,D:2.50)O RING (ID:13.8,D:2.50)
-
908316-10063 NUTNUT
-
1001550-06353 BOLT, BRAKE CAM LEVERBOLT, BRAKE CAM LEVER
-
1164711-04711 AXLE (REAR)AXLE (REAR)
-
1208322-01123 WASHERWASHER
-
1308314-40123 NUTNUT
-
1404111-30308 COTTER PINCOTTER PIN
-
1509180-12092 SPACER (RIGHT) (12.1X22X22)SPACER (RIGHT) (12.1X22X22)
-
1609180-12078 SPACER, HUB (12.6X19X91)SPACER, HUB (12.6X19X91)
-
1764750-46000 SPACER, AXLE (REAR/LEFT)SPACER, AXLE (REAR/LEFT)
-
1808143-63017 BEARING, HUB (REAR/RIGHT)BEARING, HUB (REAR/RIGHT)
-
1908123-63017 BEARING, HUB (REAR/LEFT)BEARING, HUB (REAR/LEFT)
-
2064511-46431 SPROCKET (REAR) (NT:34)SPROCKET (REAR) (NT:34)
-
2109100-08140 BOLT (8X28)BOLT (8X28)
-
2209169-08011 WASHERWASHER
-
2361410-04701 ADJUSTER, CHAINADJUSTER, CHAIN
-
2461431-04702 PLATE, ADJUSTER GUIDEPLATE, ADJUSTER GUIDE
-
2564712-20900 WASHER, CHAIN ADJUSTERWASHER, CHAIN ADJUSTER
-
2608319-31067 NUTNUT
-
2765100-46470 TIRE (REAR) (3.00-12) IRCTIRE (REAR) (3.00-12) IRC
-
2865200-46410 TUBE ASSY, WHEEL (INNER)TUBE ASSY, WHEEL (INNER)
-
2965261-46410 PROTECTOR, TUBE (INNER)PROTECTOR, TUBE (INNER)
-
3065311-46420 RIM, WHEEL (1.60X12)RIM, WHEEL (1.60X12)
-
3165320-46430 SPOKE SET, WHEEL (REAR)SPOKE SET, WHEEL (REAR)
-
3243300-03400 ROD ASSY, BRAKE (REAR)ROD ASSY, BRAKE (REAR)
-
3308322-01063 ...WASHER...WASHER
-
3409440-09004 ...SPRING...SPRING
-
3509209-11002 ...PIN...PIN
-
3609150-06014 ...NUT...NUT
-
3709200-06013 ...PIN...PIN
-
3808322-01063 ...WASHER...WASHER
-
3904111-20208 ...COTTER PIN...COTTER PIN
